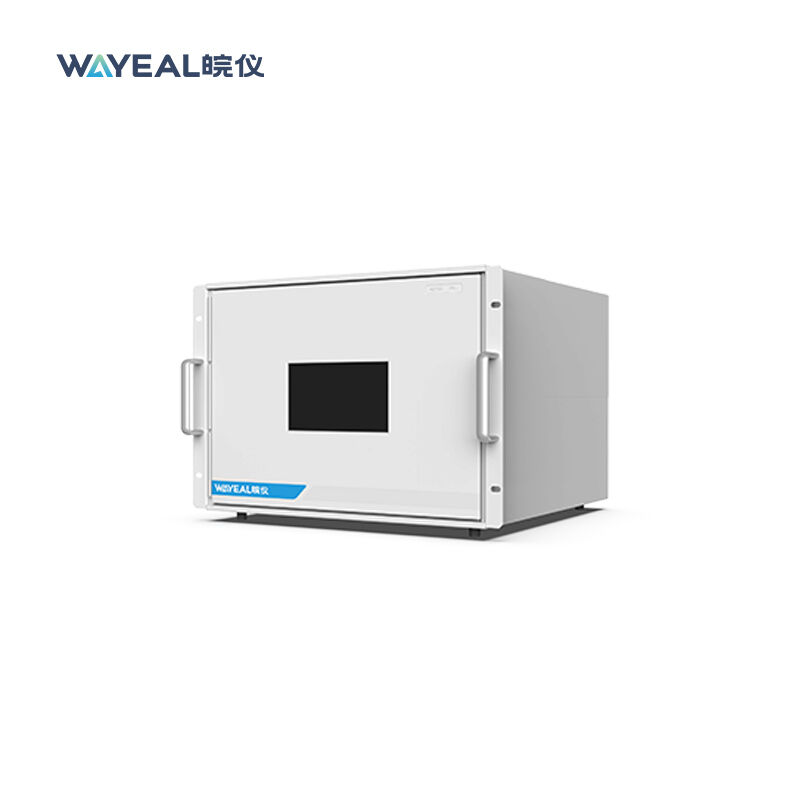

Outdoor Environmental Dust Ambient Air Quality Monitoring Instruments Monitor PM2.5 PM10 Particle

  • Outdoor Environmental Dust Ambient Air Quality Monitoring Instruments Monitor PM2.5 PM10 Particle
Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number AQ7050
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 50 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PM2.5 Ambient Air Quality Monitoring Instruments Measure Range 0-1000，0-10000 μg/m³
Test Item Pm2.5 Pm10 Analytical Method Beta Ray Attenuation Method
Zero Drift ±2%FS Ambient Temperature Accuracy ±2℃
High Light

PM10 Ambient Air Quality Monitoring Instruments

,

PM2.5 Ambient Air Quality Monitoring Instruments

,

PM10 environmental dust monitor
Leave a Message
Product Description

PM2.5 PM10 Particle Monitor Outdoor Dust Ambient Air Quality Monitoring Instruments



Product Introduction



The ambient particulate monitoring instruments is a particulate matter analyser based on the beta-ray method technology for the detection of PM10 and PM2.5 in the atmosphere. It is used for the detection and evaluation of particulate matter concentrations in ambient air quality parameters.





Product Performance



1. The equipment is designed with in-situ measurement and silent energy saving.
2. Simultaneous completion of sampling and measurement.
3. Dynamic heating to reduce the loss of volatile particulate matter.
4. Automatic elimination of interference from radioactive substances in the ambient air.
5. Accurate measurement, intuitive reading, low working noise, low energy consumption, wide range of applications.





Product Parameter



Product Name PM2.5 Ambient Air Quality Monitoring Instruments
Test Item TSP,PM10,PM2.5
Test principles Beta Ray Attenuation Method
Range (0-1000,0-10000) μg/m³
Minimum Uisplay Unit 0.1μg/m³
Sampling Flow Rate 16.67L/min
Detection Limit 2μg/m³
Zero Drift ±2%FS
Measurement Period 30-360min
Displays LCD
Power AC220V/50Hz
Ambient temperature accuracy ±2℃
Light source C14(100uCi)



Industry Application



Ambient air monitoring, leakage monitoring in industrial parks, regional background station monitoring, mobile environmental monitoring vehicles.

Outdoor Environmental Dust Ambient Air Quality Monitoring Instruments Monitor PM2.5 PM10 Particle 0

Outdoor Environmental Dust Ambient Air Quality Monitoring Instruments Monitor PM2.5 PM10 Particle 1





Outdoor Environmental Dust Ambient Air Quality Monitoring Instruments Monitor PM2.5 PM10 Particle 2

Outdoor Environmental Dust Ambient Air Quality Monitoring Instruments Monitor PM2.5 PM10 Particle 3
