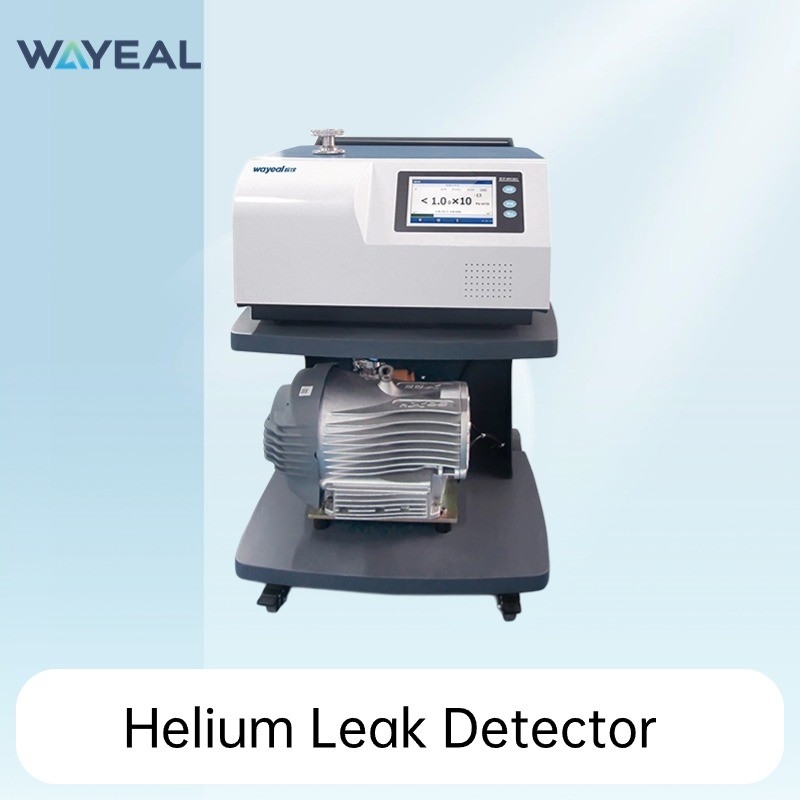

OEM Portable Helium Leak Detector Gas Mass Spectrometer Instrument 240W

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-231d
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Mass Spectrometer Leak Detector Working Power 240W
Overall Diamension 645 * 678 * 965mm Industry Application Vacuum, New Energy
Man-machine Interface 7 "color LCD Touch Screen OEM Accepted
High Light

portable helium leak detector mass spectrometer

,

240W portable helium leak detector

,

OEM gas mass spectrometer

Leave a Message
Product Description

Original Manufactured Leak Detection Instrument for Chillers Helium Leak Detector Price





Product Description



The helium mass spectrometer leak detector is an instrument for rapid localization and quantitative measurement of leaks in sealed containers. The helium mass spectrometer leak detector adopts non-toxic, non-destructive inert gas as the exploring gas, so it is safe and reliable. In addition, it has the features of high detection sensitivity, fast speed and wide application range.



Product Parameters



SFJ-231d Helium Mass Spectrometer Leak Detector















Performance Indicators








Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode
5.0×10-12
Minimum detectable leak rate
(Pa·m3/s)/ Suction gun mode
5.0×10-9
Response time(s) <1
Startup time(min) ≤2
Leakage detection range
(Pa·m3/s)
5.0×10-13~1.0×10-3
Leakage rate display range
(Pa·m3/s)
1.0×10-13~1.0×10-3
Maximum allowable leak detection pressure(Pa) 1330
Detectable quality 2,3,4(H2 , He3, He4)





















Basic Configuration












Man-machine interface 7 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O INPUT/output interface Eight inputs and eight outputs
Communication interface RS232/485,USB*2
MES interface Standard
Specifications of Leak Detection Port DN25 KF
Specifications of leak detection port DN16 KF/2pcs
Power Supply AC220V,50HZ/60HZ
Operating temperature 0-40ºC
Power 1000W
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart



Product Performance



1. German made molecular pump, double iridium band ion source;
2. Unique gas circuit design, relatively low particulate interference;

3. Functions of real-time monitoring and automatic recording of leak detection curve;
4. The leakage rate value can be read in display modes of digital, bar and trend charts;



Product Application



Electricity, Refrigeration, Lithium batteryMedical
