Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
IC6600

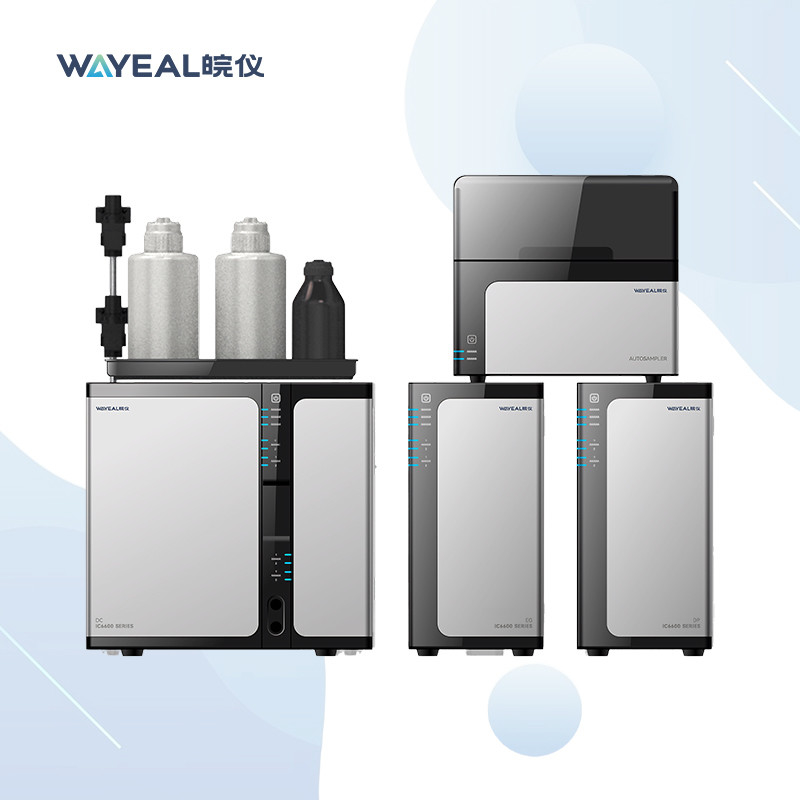

Laboratory Ion Chromatography Analyzer Multifunctional Ion Chromatograph Instrument
Introduction of Ion Chromatography Instrument
The multifunctional ion chromatography instrument with the characteristics of high efficiency, high sensitivity and high reliability. Dual system setup realizes simultaneous detection of anions and cations, further reducing detection time.
Features of Ion Chromatography Instrument
1. Integral appearance and modular design, all-plastic flow path, no dissolution contamination and perfect flow path protection system.
2. Integrated design of dual conductivity detectors, dual amperometric detectors, conductivity-amperometric detectors, dual flow path system, real-time temperature control, workstation (including real-time control and data processing), online degasification, drenching solution generator and other components.
3. Built-in thermostat system with high precision temperature control for the whole system.
4. Dual system detection maximizes detection efficiency and shortens detection time.
Parameters of Ion Chromatography Instrument
| Wayeal IC6200 Series Integrated Anion or Cation Ion Chromatography Anlayzer System | |
| Working power | 220V, 50Hz |
| Qualitative repeatability | ≤0.5% |
| Quantitative repeatability | ≤0.5% |
| Pump System | |
| Flow Rate | (0.001～10.000) mL/min |
| Pressure resistance | (0～35) MPa |
| Flow rate setting error | <0.06% |
| Flow rate stability | <0.06% |
| Pressure display accuracy | 0.01Mpa |
| Pressure pulsation | <0.5% |
| Conductivity Detector | |
| Baseline noise | ≤0.0002μS/cm |
| Baseline drift | ≤0.001μS-cm-1/30min |
| Minimum detectable concentration (Cl) | ≤0.0002ug/mL |
| Minimum detection concentration (Li) | ≤0.00009ug/mL |
| Minimum detectable concentration (NO3-) | ≤ 0.001μg/mL |
| Conductivity cell volume | ≤ 0.6 μL |
| Conductivity detection range | 0-15000μS/cm |
| Detector resolution | 0.00238nS/cm |
| Conductivity cell temperature setting error | ±0.01°C |
| Conductivity cell temperature display resolution | 0.01 ℃ |
| Column Oven | |
| Temperature range | Room temperature +5℃~85℃ |
| Temperature control stability | ≤0.1℃ |
| Temperature setting error | 0.05℃ |
| Autosampler | |
| Quantitative repeatability | <0.5% RSD for full-loop sampling |
| Linearity | >0.9995 |
| Number of sample vials | AS2800D, 48 Vials autosampler |
| Operating temperature | 10-40°C |
| Injection volume | 10uL --- 4000uL |
| Single injection cycle | About 20s |
| Sampling method | Full-loop sampling |
| Eluent Generator | |
| Flow rate range | 0.001 to 3.000 ml/min |
| Eluent concentration range | KOH, MSA-0.1~100.0mM |
| Concentration accuracy | 0.1mM |
| Electrolyte original concentration | 25% KOH/MSA |
| Electrolyte volume | 1000mL |
| Maximum working pressure | 21MPa (3000psi) |
| Gradient accuracy | 1.5% |
Industry Application
Environment, food, medicine, agriculture, grain and oil, and chemical industry
