LCD Touch Screen Helium Leak Checker Helium Detection Equipment CE Approved

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-231
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T
Supply Ability 2000 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Mass Spectrometer Leak Detector Man-machine Interface 7 "color LCD Touch Screen
Product Color White, Blue, Black Startup Time(min) Startup Time(min)
Application New Energy Response Time(s) <1
High Light

LCD helium leak checker

,

CE helium leak checker

,

LCD helium detection equipment

Leave a Message
Product Description

LCD Touch Screen Separated Leak Detection System Helium Mass Spectrometer Leak Detector


Product Description

Compared with bubble identification method, pressure decay method and halogen leak detection method, the helium mass spectrometer leak detection method has high detection sensitivity, high speed and wide application range.



Product Parameters

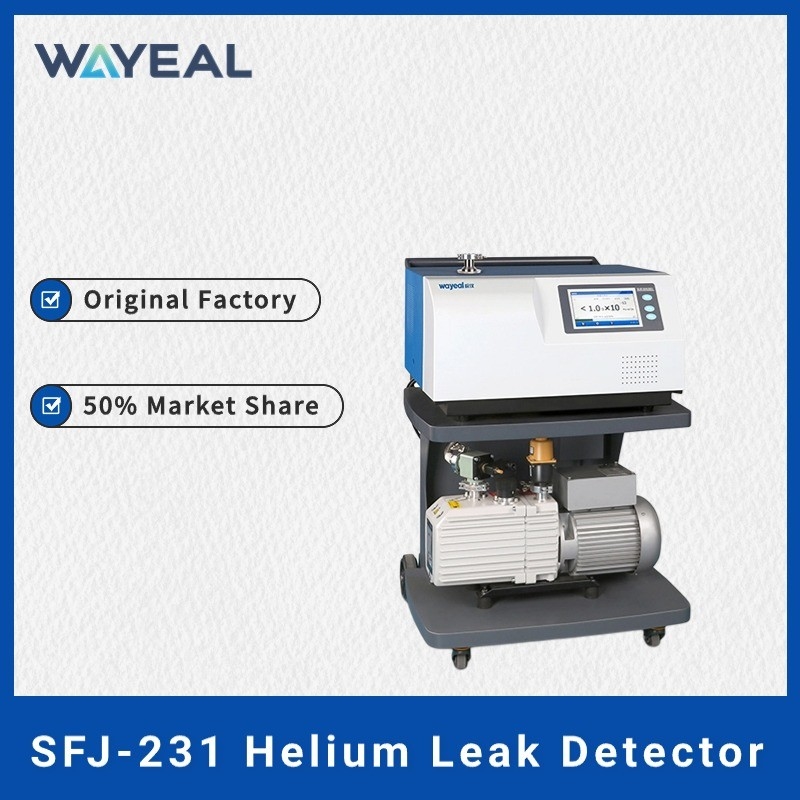

SFJ-231 Helium Leak Detector








Performance Indicators


Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode
5.0×10-13
Minimum detectable leak rate
(Pa·m3/s)/ Suction gun mode
5.0×10-9
Response time(s) <1
Startup time(min) ≤2
Leakage detection range
(Pa·m3/s)
5.0×10-13~1.0×10-3
Leakage rate display range
(Pa·m3/s)
1.0×10-12~1.0×10-3
Maximum allowable leak detection pressure(Pa) 1330
Detectable quality 2,3,4(H2 , He3, He4)











Basic Configuration


Man-machine interface 7 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O INPUT/output interface Eight inputs and eight outputs
Communication interface RS232/485,USB*2
MES interface Standard
Physical size of instrument
(W)×(D)×(H),mm
645 x 678 x 965mm
Specifications of leak detection port DN25 KF
Power Supply AC220V,50HZ/60HZ
Operating temperature 0-40ºC
Power 1000W
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart



Product Performance
1. Original imported molecular pump
2. Unique gas circuit design, relatively low particulate interference;
3. Clean air circuit system
4. The leakage rate value can be read in display modes of digital, bar and trend charts;
5. Signal multi-stage amplification technology
6. Accept remote control (Optional)



Product Application



Power plants
High vacuum and ultra-high vacuum engineering
Semiconductor and other industries

Analytical instruments
