PM10 Particulate Ambient Air Quality Monitoring Systems Instruments
| Product Name: | PM10 Ambient Air Quality Monitoring Instruments | Ambient Temperature Accuracy: | ±2℃ |
| Ambient Humidity Accuracy: | ±4% | Radioactive Light Sources: | C14（100uCi） |
| Zero Drift: | ±2%FS | Signal Output: | RS485，0-5V，4-20mA |
| High Light: | PM2.5 particulate monitoring systems,PM10 particulate monitoring systems,PM10 particulate monitoring instruments |
||

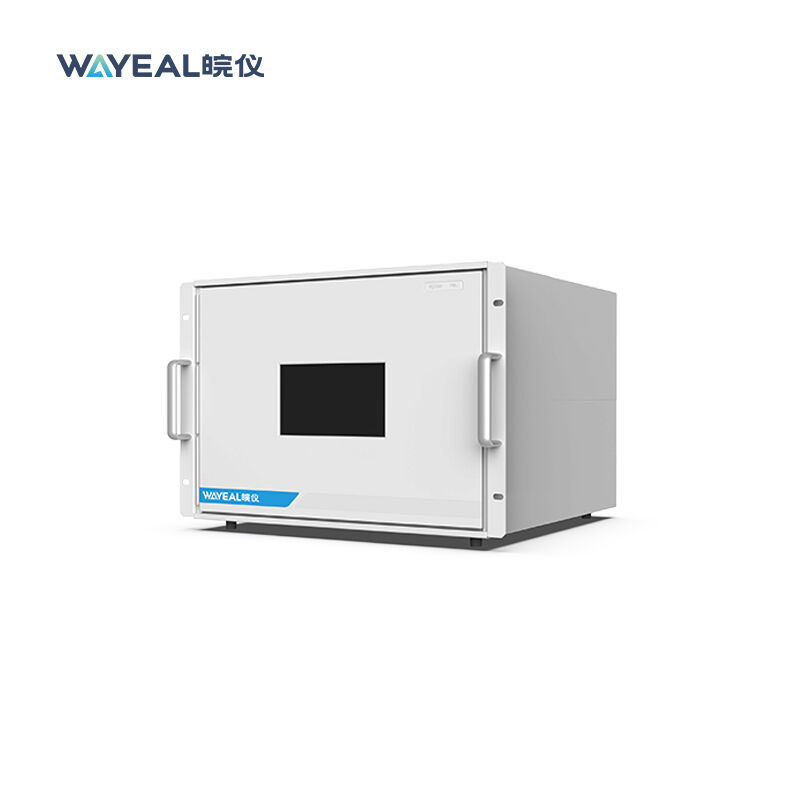

AQ7050 PM10 Particulate Monitor Ambient Air Quality Monitoring Instruments
Product Introduction
The AQ7060 is used to detect the contents of PM10 and PM2.5 in the atmosphere and evaluate the concentration of particulates in ambient air quality parameters.
Product Performance
1. The in-situ measurement, silent and energy-saving design is adopted for the equipment;
2. Sampling and measurement are completed synchronously;
3. Dynamic heating reduces the loss of volatile particulates;
4. It automatically eliminates the interference of radioactive materials in the ambient air;
5. It has advantages of accurate measurement, intuitive reading, low working noise, low energy consumption and wide application range.
Product Parameter
|
Product Name |
PM10 Ambient Air Quality Monitoring Instruments |
|
Test Item |
TSP,PM10,PM2.5 |
|
Test principles |
Beta Ray Attenuation Method |
|
Range |
(0-1000,0-10000) μg/m³ |
|
Minimum Uisplay Unit |
0.1μg/m³ |
|
Sampling Flow Rate |
16.67L/min |
|
Detection Limit |
2μg/m³ |
|
Ambient Temperature Accuracy |
±2℃ |
|
Ambient Humidity Accuracy |
±4% |
|
Radioactive Light Sources |
C14(100uCi) |
|
Zero Drift |
±2%FS |
Industry Application
Ambient air monitoring, leakage monitoring in industrial parks, regional background station monitoring, mobile environmental monitoring vehicles.
AQ7021 High Precision Ammonia Analyzer with 0-500ppb Range Using Chemiluminescence Principle for Industrial Emissions
AQ7021 Ammonia (NH₃) Analyzer High Precision Chemiluminescence for Industrial Emissions Product Overview The AQ7021 Ammonia (NH₃) Analyzer is an advanced analytical instrument based on chemiluminescence technology, specifically designed for precise measurement of nitrogen monoxide, nitrogen dioxide, ...
ODM Continuous Ambient Air Pollution Monitoring Instruments AQ7800
Continuous Ambient Air Quality Monitoring Instruments of Total Non-methane Hydrocarbons Product Introduction The AQ7800 automatic ambient air quality non-methane monitoring system monitors methane, non-methane total hydrocarbons and the five meteorological parameters (temperature, humidity, pressure...
Dust Noise Particulate Ambient Air Quality Monitoring Instruments AQ7660 ODM
Fugitive Dust Noise Particulate Matter Ambient Air Quality Monitoring Instrument Systems Product Introduction AQ7660 fugitive dust (noise) monitoring systems is an ambient air quality monitoring instrument to monitor the concentration of particulate matter by the national standard β-ray method. ...
Particulate Matter Air Pollution Instruments For PM10 Pm 2.5 Measurement
PM 10 Particulate Ambient Air Quality Monitoring Instruments Product Introduction The AQ7060 PM2.5 PM 10 ambient air quality monitoring instrument is a particulate matter analyser based on beta-ray technology. It is used to detect and evaluate the concentration of particulate matter in ambient air ...
