OEM Particulate Ambient Air Quality Monitoring Instruments Voc Monitoring System 220V 16.67L/Min

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: ISO, CE
Model Number: AQ7050
Trading Properties
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C,T/T
Supply Ability: 50 Pieces Per Month
Tags

NOX nitrogen oxide analyzer

outdoor air quality measurement device

particulate monitoring systems
Specifications
Product Name: PM2.5 Ambient Air Quality Monitoring Instruments Measure Range: 0-1000，0-10000 μg/m³
Application: Pm2.5 Pm10 Analytical Method: Beta Ray Attenuation Method
Sampling Flow Rate: 16.67L/min Detection Limit: 2μg/m³
High Light:

16.67L/min Ambient Air Quality Monitoring Instruments

,

220V Ambient Air Quality Monitoring Instruments

,

OEM voc monitoring system
Product Description

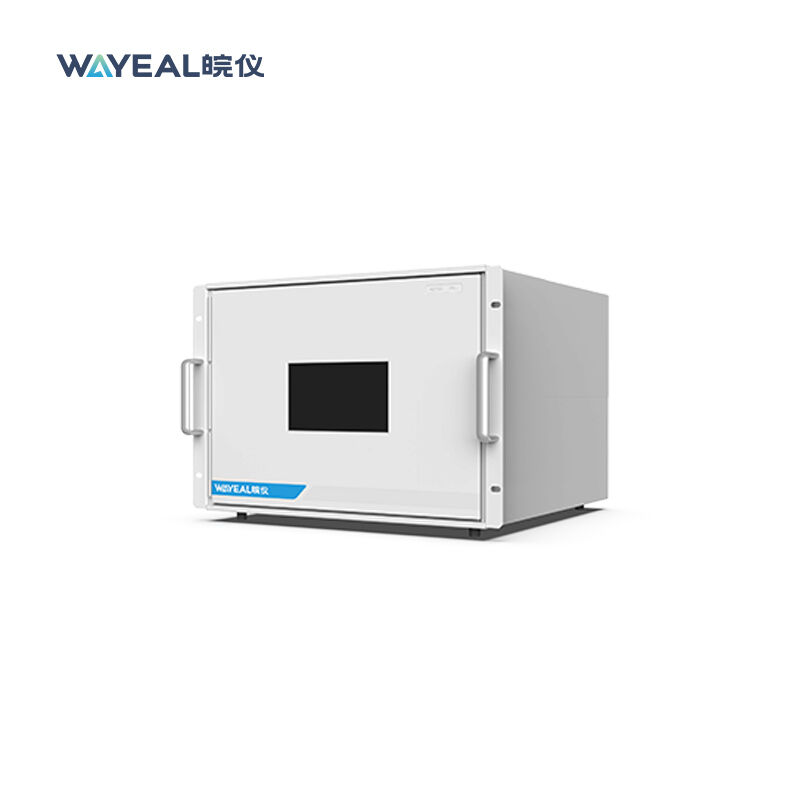

AQ7050 PM10 PM2.5 Particulate Monitor Ambient Air Quality Monitoring Instruments

Product Introduction

The AQ7050 and AQ7060 atmospheric particulate monitors are based on β-ray technology and can be used to detect the contents of PM10 and PM2.5 in the atmosphere and to test and evaluate the concentration of particulates in ambient air quality parameters.

Product Performance

1. The in-situ measurement, silent and energy-saving design is adopted for the equipment;
2. Sampling and measurement are completed synchronously;
3. Dynamic heating reduces the loss of volatile particulates;
4. It automatically eliminates the interference of radioactive materials in the ambient air;
5. It has advantages of accurate measurement, intuitive reading, low working noise, low energy consumption and wide application range.

Product Parameter

Product Name PM2.5 Ambient Air Quality Monitoring Instruments
Test Item TSP,PM10,PM2.5
Test principles Beta Ray Attenuation Method
Range (0-1000,0-10000) μg/m³
Minimum Uisplay Unit 0.1μg/m³
Sampling Flow Rate 16.67L/min
Detection Limit 2μg/m³
Zero Drift ±2%FS
Measurement Period 30-360min
Displays LCD
Power AC220V/50Hz

Industry Application

Ambient air monitoring, leakage monitoring in industrial parks, regional background station monitoring, mobile environmental monitoring vehicles.
