Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
AQ7030

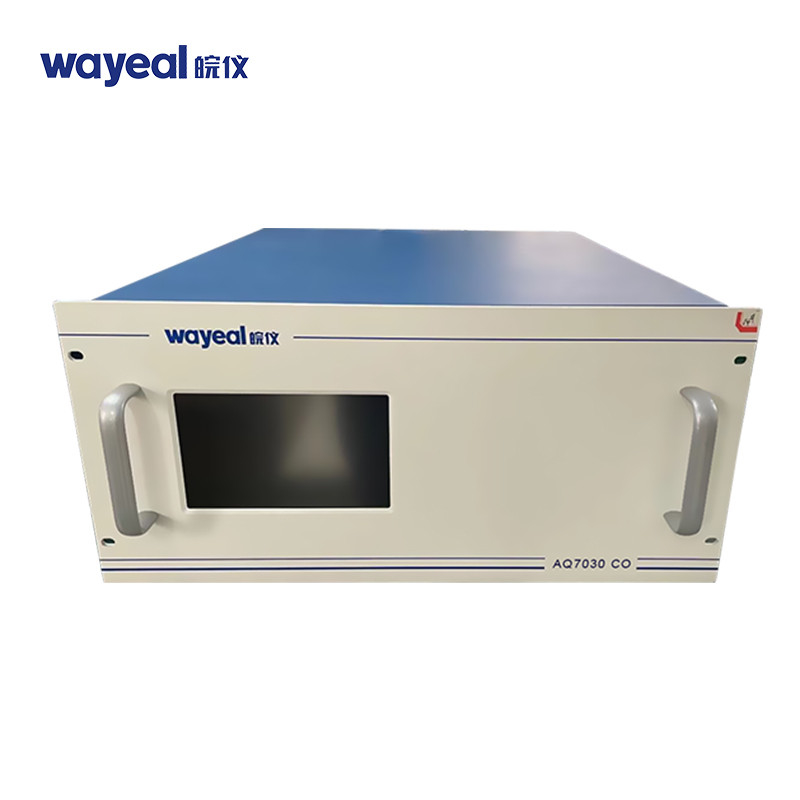

AQ7030 Air Quality Monitoring Instruments Professional CO Gas Concentration Analyzer
Product Introduction
The AQ7030 Carbon Monoxide Analyser is an analyser that measures CO at the ppm level by comparing the intensity of the infrared light absorbed by a sample gas with that of a reference gas, in accordance with the Beer-Lambert law.
Product Performance
1. Multi-range selectable
2. Multi-parameter alarms
3. Hierarchical password access control function
4. Highly integrated and robust systems
5. Internal structure for easy maintenance
Product Parameter
| Product Name | Ambient Air Quality Monitoring Instruments |
| Test Item | CO |
| Test principles | Non-dispersive infrared & gas correlation filtering |
| Range | 0～50 ppm |
| Zero Noise | ≤0.25 ppm |
| Minimum Detection Limit | ≤0.5 ppm(2σ) |
| Range Noise | ≤1 ppm |
| Error of Measurement | ±2% F.S. |
| 20% Range Precision | ≤0.5 ppm |
| 80% Range Precision | ≤0.5 ppm |
| 24h Zero Drift | ±1 ppm |
Industry Application
Ambient air monitoring, industrial park leak monitoring
