SFJ-211 Helium Mass Spectrometry Leak Detector Equipment

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-211
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 645*678*965mm Product Name Helium Leak Detector
Working Temperature 0-40°C Color Blue+White
Application 5 Refrigeration Industry Detection Range 5.0*10-12~1.0*10-3
High Light

Helium Mass Spectrometry Leak Detector Equipment

,

Helium Mass Spectrometry Leak Detector

Leave a Message
Product Description

Helium Sniffer Leak Detector System for Vacuum Industry Helium Mass Spectrometer Leak Detector





Introduction of Helium Leak Detector



Helium mass spectrometer leak detector is an instrument for rapid positioning and quantitative measurement of leakage of sealed containers.





Parameters of Helium Leak Detector



Helium Leak Detector SFJ-211















Performance Indicators








Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode

5.0×10-12

Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode

5.0×10-9

Response time(s)

<1

Startup time(min)

≤2

Leakage detection range
(Pa·m3/s)

5.0×10-12~1.0×10-3

Leakage rate display range
(Pa·m3/s)

1.0×10-12~1.0×10-3

Maximum allowable leak detection pressure(Pa)

1330

Detectable quality

2,3,4(H2 , He3, He4)





















Basic Configuration












Man-machine interface

7 "color LCD Touch Screen

Ion source

2pcs, iridium coated yttrium oxide, automatic switching

I/O Input/output interface

Eight inputs and eight outputs

Communication interface

RS232/485,USB*2

MES interface

Standard

Physical size of instrument
(W)×(D)×(H),mm

645 x 678 x 965mm

Specifications of leak detection port

DN25 KF

Power Supply

AC220V,50HZ/60HZ

Operating temperature

0-40ºC

Power

1000W

Display language

Both Chinese and English

Leakage rate display

Figure, bar chart, curve chart



Features of Helium Leak Detector

Clean air circuit system
Original imported molecular pump

Easy to operate detection software
Double iridium with ion source
Fault indication and alarm function





Applications of Helium Leak Detector



Scientific research
New energy battery
Aerospace
Automobile refrigeration
Military industry



SFJ-211 Helium Mass Spectrometry Leak Detector Equipment 0







SFJ-211 Helium Mass Spectrometry Leak Detector Equipment 1

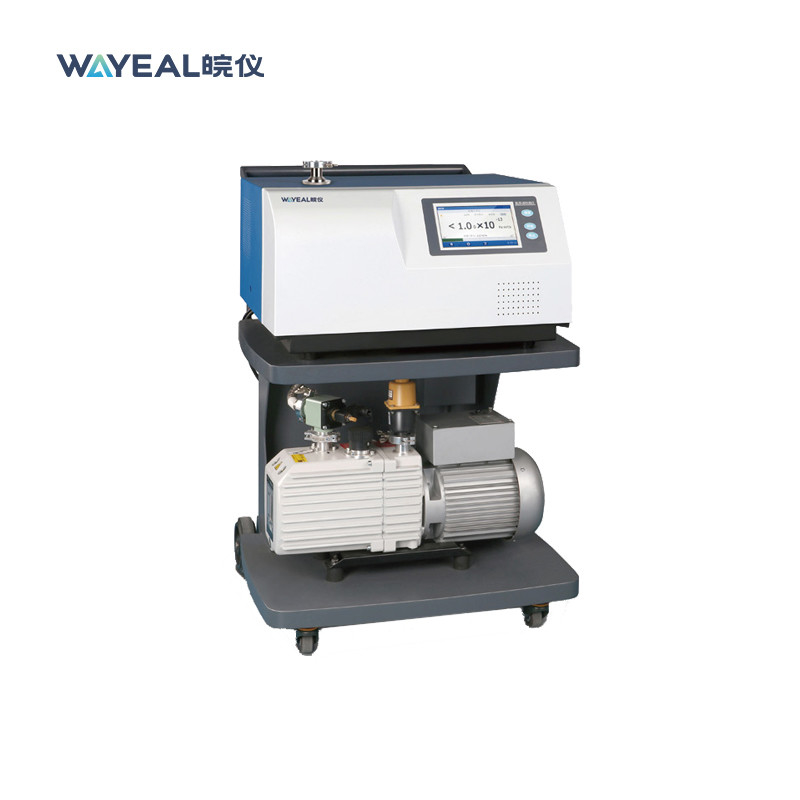

Helium Mass Spectrometer Leak Detector
