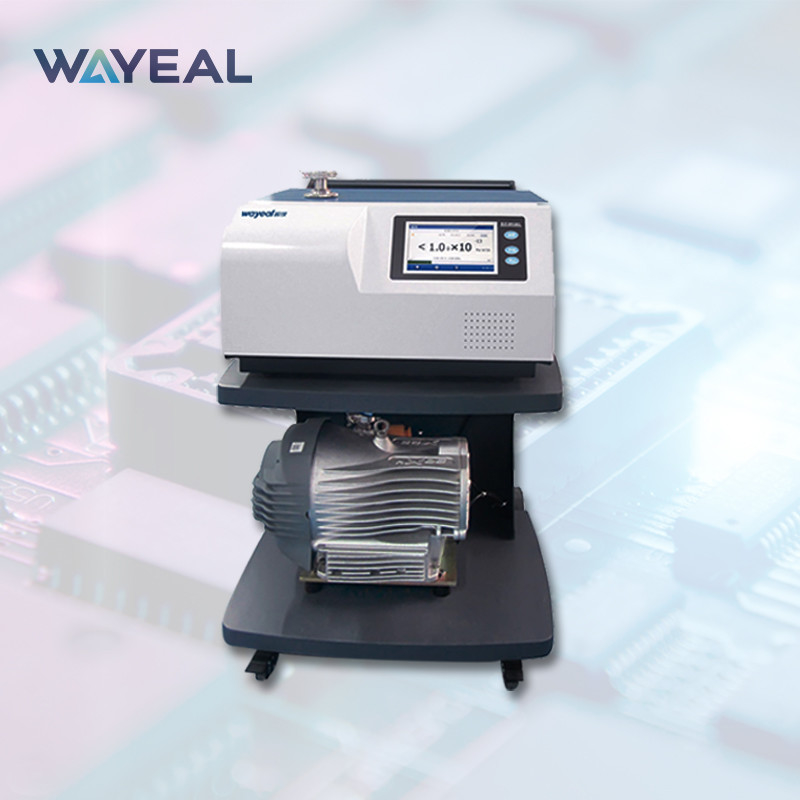

SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector

SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector

1500Pa He Leak Detector

SFJ-231D Helium Leak Detector

1500Pa Helium Leak Detector

Place of Origin:

Anhui, China

Brand Name:

Wayeal

Certification:

CE

Model Number:

SFJ-231d

Contact Us
Request A Quote
SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector
SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector
Product Details
Ion Source:
2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Detectable Quality:
2, 3, 4 (H2, He-3, He-4)
Product Name:
Helium Leak Detector
Language:
Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode:
5.0*10-9 Pa·m3/s
Detection Method:
Helium Mass Spectrometer
Operating Temperature:
0~40°C
Leak Detection Port:
DN25KF
Highlight:

1500Pa He Leak Detector

,

SFJ-231D Helium Leak Detector

,

1500Pa Helium Leak Detector

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiate
Packaging Details
Wooden Case
Delivery Time
35 days
Payment Terms
T/T, VISA
Supply Ability
200 Units/Month
RELATED PRODUCTS
Good price Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems online Video

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems

Get Best Price
Good price SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price online Video

SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price

Get Best Price
Good price 24V Modular Vacuum gas Helium Leak Detector Mass Spectrum At Pump online Video

24V Modular Vacuum gas Helium Leak Detector Mass Spectrum At Pump

Get Best Price
Good price SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V online Video

SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V

Get Best Price
Contact Us
+8613586823203
export@wayeal.com.cn
Contact Now
Product Description

Introduction of Helium Leak Detector



Helium Leak Detector



Helium leak detector is a mass spectrometer leak detector that uses helium as a leak detection gas and detects helium with a gas analyzer. Helium has a low background noise, small molecular weight and viscosity coefficient, so it is easy to pass through the leakage hole and diffuse easily; in addition, helium is an inert gas and does not corrode the equipment, so helium is often used as a leak detection gas. This gas will be sprayed to the gas analyzer on the container to be detected, if the container has a leakage hole, the analyzer will be alarmed, so that we can know where the leakage hole and the size of the leakage.





Technical Parameters of Helium Leak Detector:



Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

DN25KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

7inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

1500Pa

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode

5.0*10 -9 Pa·m3/s

Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode

5.0*10-13 Pa·m3/s

Startup Time (min)

≤2

Diamension

592*498*370mm

Power Supply

220V, 50Hz/60Hz

Language

Chinese/English





Applications of Helium Leak Detector:



High-quality helium leak detectors can not only effectively improve product quality and production safety, but also effectively reduce the time and cost required for product maintenance and troubleshooting. At present, helium leak detectors have been widely used in refrigeration, electrical appliances manufacturing, automobile manufacturing, semiconductor manufacturing, new energy, communications industry, aerospace and other fields, to provide security for industrial process safety.





SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector 0





Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector 1Helium Hood Method



SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector 2



Negative Pressure Method

SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector 4



Sniffer Method

SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector 5

SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector 6SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector 7



SFJ-231D1500Pa Max Detection Pressure Leak Detector He Helium Leak Detector 8
