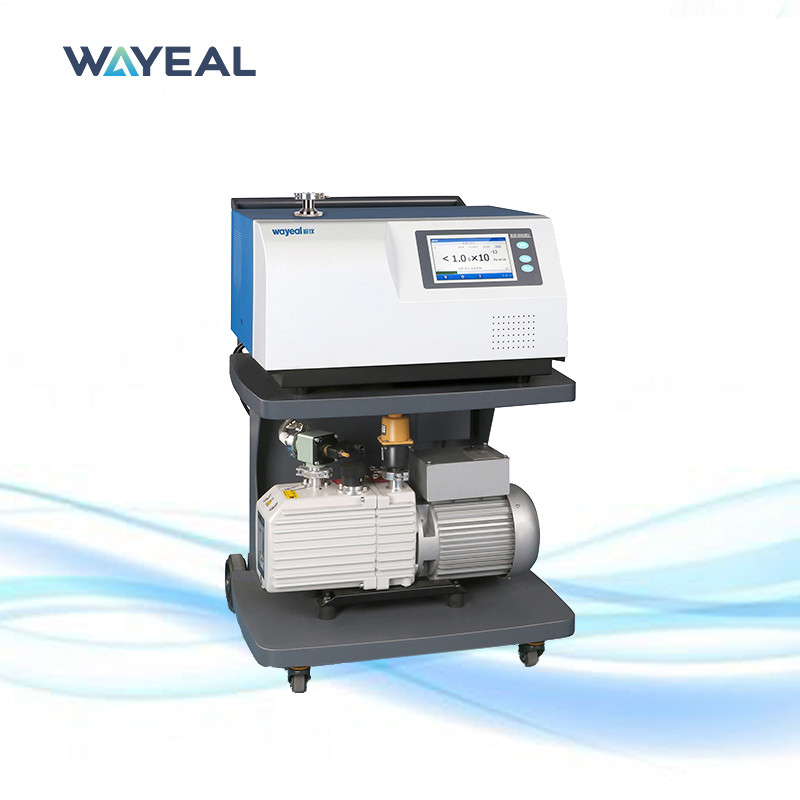

Introduction of Helium Leak Detector:
The Helium Leak Detector is a highly advanced device designed for the industrial vacuum leak detection. This device is powered by helium and is capable of detecting even the smallest leaks.There are 2 basic techniques; high vacuum testing which allows leak test thresholds to be set down as low as 5×10-13Pa.m3/s, or sniffing which is generally used for helium leaks down to 5×10-9Pa.m3/s. This makes it a perfect choice for industries that require accurate helium leak testing and vaccum leak detection.
Technical Parameters of Helium Leak Detector:
| High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa |
| Leak Detection Port |
DN25KF |
| Start Time (min) |
≤2 |
| Detectable Quality |
2, 3, 4 (H2, He3, He4) |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode |
5*10-9 Pa.m3/s |
| Language |
Chinese/English |
| Detection Method |
Helium Leak Detection |
| Ion Source |
2pcs, Iridium Coated Yttrium Oxide, Automatic Switching |
| Product Name |
Helium Leak Detector |
| Max Allowable Leak Detection Pressure (Pa) |
1500 |
| Response Time(s) |
<1 |
| Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode |
5*10-13 Pa.m3/s |
| User Interface |
7inch color touch screen |
| I/O Input Output |
8 Inputs, 8 Outputs |
| Communication Interface |
RS232/485, USB*2 |
| MES Interface |
Standard |
| Size |
645*678*965mm |
| Leak Detection Port |
DN25KF |
| Power |
AC220V, 50Hz/60Hz |
| Operating Temperature |
0~40°C |
Support and Services:
Helium Leak Detector Technical Support and Services
1. Product installation and setup
2. Troubleshooting and repair
3. Software and firmware updates
4. Product safety and compliance checks
5. Calibration and testing services
6. Telephone and email technical support
7. On-site maintenance and service
Methods of Helium Leak Detection
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
