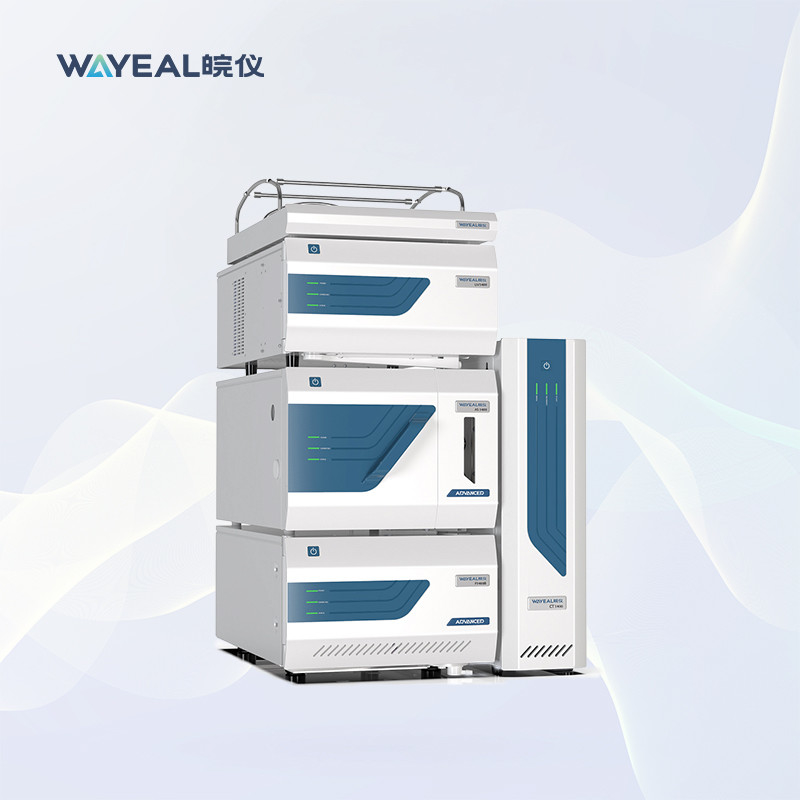

LC3400 62MPa Hplc High Performance Liquid Chromatography Instrument

LC3400 62MPa Hplc High Performance Liquid Chromatography Instrument

hplc Liquid Chromatography Instrument

62MPa hplc Liquid Chromatography Instrument

LC3400 hplc Liquid Chromatography Instrument

Place of Origin:

China

Brand Name:

Wayeal

Certification:

CE

Model Number:

LC3400

Contact Us
Request A Quote
Product Details
Number Of Injection Bits:
108 Bits Or 96-well Plates
Detectors:
UVD/DAD/ELSD/RID/FLD
Product Name:
Liquid Chromatography Instrument
Flow Rate:
0.000-12.000mL/min
Linearity:
>0.9999
Pressure:
62MPa/75MPa
Power Supply:
220V, 50Hz
Injection Volume:
1-100μL
Highlight:

hplc Liquid Chromatography Instrument

,

62MPa hplc Liquid Chromatography Instrument

,

LC3400 hplc Liquid Chromatography Instrument

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiate
Packaging Details
Wooden Case
Delivery Time
30 Days
Payment Terms
T/T
Supply Ability
30 Units/Month
Product Description

Introduction of HPLC Liquid Chromatography Instrument:

High-performance liquid chromatography (HPLC) is a powerful analytical technique that separates, identifies and quantifies components in a liquid mixture. Compounds introduced into a solvent pass steadily through a column, and separate within the column as they pass through the packing materials and exit into a detector. The detector tracks and identifies the elements as they exit the column, and a chromatogram chart provides a visual analysis of the compounds.

Technical Parameters of HPLC Liquid Chromatography Instrument LC3400:

Product Name

LC3400 Liquid Chromatography Instrument

Maximum Operating Pressure

62MPa/75MPa

Flow Rate Setting Range

0.0000~12.0000mL/min

Flow Rate Setting Increment

0.0001mL/min

Gradient Error

≤ 0.75%

Gradient Stability

0.2% RSD (5% to 95%, 0.2 to 2.0 mL/min)

Flow Rate Setting Value Error

±0.20%

Flow Rate Stability

≤0.075% RSD

Autosampler



Injection Volume

100μL, 200μL, 500μL, 1000μL, 1500μL, 2000 μL

Repeatability

<0.3%RSD (2μL~Max),

<1.0%RSD (0.1μL~1.9μL);

Linear Correlation Coefficient

>0.9999

Number of Sample Position

108 (2*54, 2mL), 96-well plates

Temperature Setting Range

4.0~40.0℃ (optional refrigeration)

Temperature Setting Value Error

±0.5℃ (optional refrigeration);

Temperature Stability

±1℃ (optional refrigeration)

Column Oven



Temperature Setting Range

4℃-90℃

Temperature Stability

±0.03℃/h

Temperature Setting Value Error

±0.1℃

UV Detector



Baseline Noise

≤8.0×10-6 Au (1mL/min, methanol, C18)

Baseline Drift

≤1.0×10-4 AU/h (1mL/min, methanol, C18)

Minimum Test Concentration

≤5×10-9 g/mL (naphthalene/methanol)

Spectral Range

188-900nm

Wavelength Error

≤ ±1nm

Wavelength Repeatability

≤ ±0.1nm

Linear Range

≥1×104 or 2.5Au

Features of HPLC Liquid Chromatography Instrument:

High Pressure Constant Current Pump Features:
1. Small pressure pulsation: the new tandem cam design, integrated with the fifth generation of intelligent algorithms, through the "electronic pulsation suppression" control, reducing the pressure pulsation; further reducing the pressure fluctuations, to ensure that the test results of higher repeatability.

Autosampler
1. Needle in the flow path: Needle in the flow path design, to meet the sample injection zero loss;
2. Customizable cleaning fluids: Customizable cleaning solvents for flexibility in complex application scenarios, combined with internal needle rinsing for extremely low cross contamination.

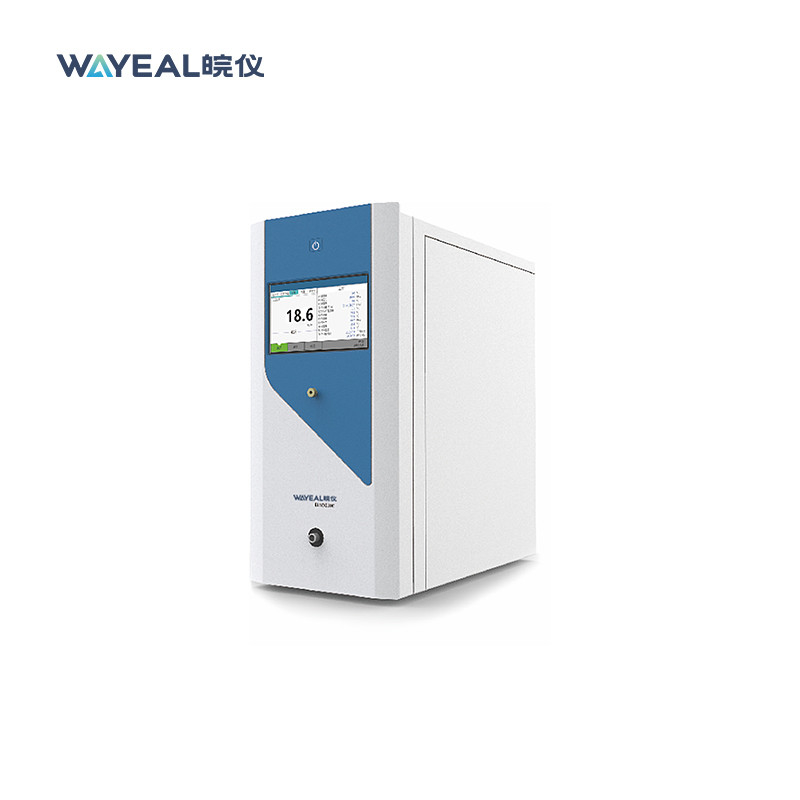

Heating and Cooling Column Chamber (CT3400)
1. Dual-mode heating: heating-cooling dual-mode temperature control. Standard with semiconductor cooling module, resistance heating module.
2. Air bath: forced air bath circulation temperature control.
3. Temperature setting range: 4℃-90℃;

LC3400 62MPa Hplc High Performance Liquid Chromatography Instrument 0LC3400 62MPa Hplc High Performance Liquid Chromatography Instrument 1

LC3400 62MPa Hplc High Performance Liquid Chromatography Instrument 2LC3400 62MPa Hplc High Performance Liquid Chromatography Instrument 3





LC3400 62MPa Hplc High Performance Liquid Chromatography Instrument 4
