Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
LC3200

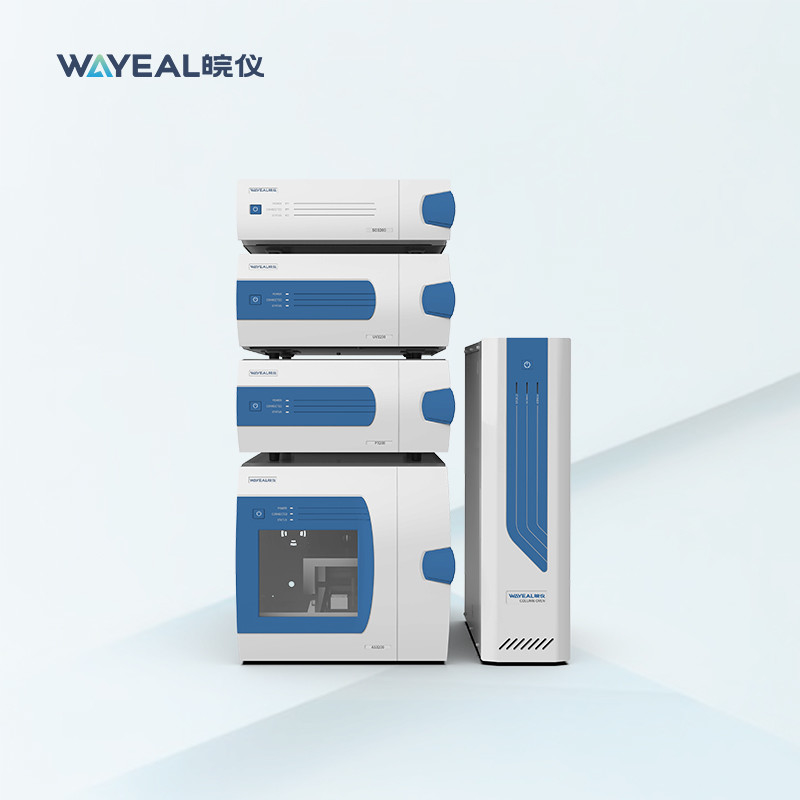

Wayeal Hplc System for Vitamins Analysis High Performance Liquid Chromatograph Instrument Price
Introduction of Liquid Chromatography Instrument
The high performance liquid chromatography instrument is mainly used for the analysis of organic compounds with high boiling point, non-volatile, heat unstable and large molecular weight. It consists of a reservoir, pump, injector, column, detector, recorder and several other parts. There are binary high pressure and quaternary low pressure modes availiable. The column oven is equipped with a refrigeration function as standard, extending the application range of the system. A variety of detectors are available, such as DAD, ELSD, FLD, etc.
Parameters of Liquid Chromatography Instrument
| HPLC Liquid Chromatography Instrument with Quartnary Pump UV Detector | |
| Physical Specifications | |
| Power Requirements | 220V, 50Hz |
| Ambient Temperature | 10-40℃ |
| Ambient Humidity | 20-85% relative humidity |
| System Specification | |
| Qualitative Repeatability | RSD≤0.2% |
| Quantitative Repeatability | RSD≤0.4% |
| Pump System | |
| Flow Rate Range | 0.001-10.000mL/min |
| Max Operating Pressure | 42MPa |
| Pressure Pulsation | 0.1MPa( Test condition: 10MPa , at 1.0mL/min methanol) |
| Flow Rate Set Error | ±0.2% |
| Flow Rate Stability | RSD≤0.06% |
| Gradient Error | ±1% |
| Column Oven | |
| Temperature Setting Range | 4 °C ~ 85 °C |
| Temperature Stability | ≤0.2°C/h |
| Temperature Controlling Precision | ±0.1 °C |
| Autosampler | |
| Injection Volume Repeatability | < 0.5% RSD |
| Linearity | >0.999 |
| Cross Contamination | <0.002% |
| Sample Positions | 120 |
| Syringe | 250μL( Standard, with 500μL,1000μL, 2500μL optionals) |
| Sample Loop | 20μL( Standard, with 50μL, 100μL, 200μL optional) |
| Optional Sample Chamber Cooler | 4 °C ~ 30 °C(4 °C lowest) |
Features of Liquid Chromatography Instrument
1. A mainstream modular design, providing a comprehensive suite of system monitoring functions to meet abroad range of detection requirement.
2. Incorporates custom-designed, acetonitrile-resistant check valves.
3. Equipped with a newly designed cam profile that uses electronic pulsation suppression and solventcompression compensation technology, reducing pressure fluctuations and ensuring higher reproducibilityof results significantly.
4. Built-in online cleaning function for the plunger rod.
5. Equipped with a 1800 lines/mm grating.
6. Offers options with Uv, ELSD (Evaporative Light Scattering Detector), FLD (Fluorescence Detector), DAD(Diode Array Detector), and RlD (Refractive Index Detector).
7. Integrates a fully intelligent chromatography workstation.
Application of Liquid Chromatography Instrument
Food, medicine, chemical industry, agriculture, etc.
