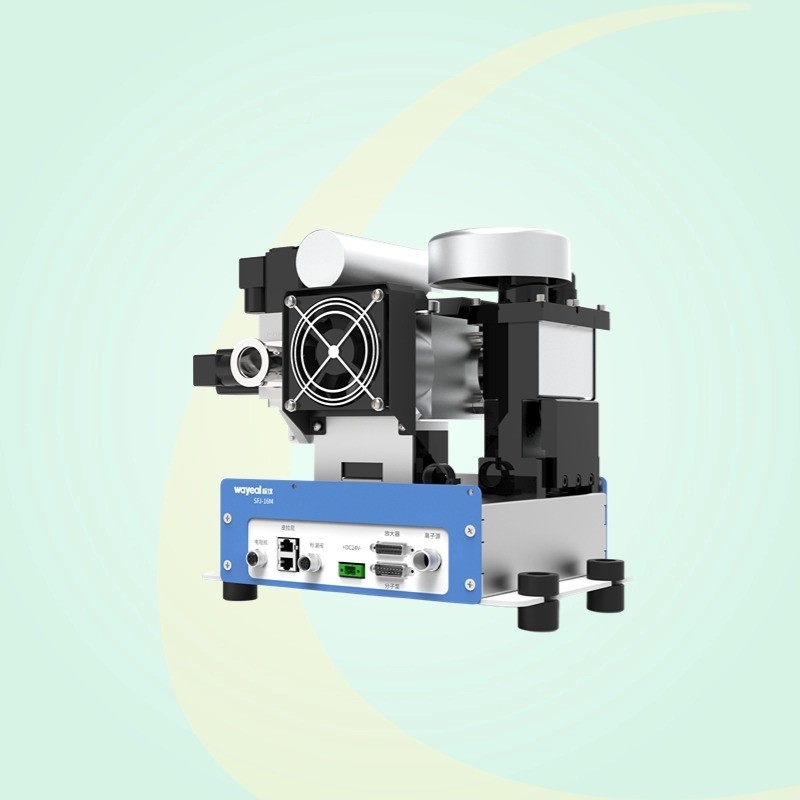

SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector

  • SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector
  • SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector
  • SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector
  • SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector
Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16M
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Detection Method Helium Mass Spectrometer
Power Supply DC24V(±5%） Diamension 337*240*318mm
High Light

Vaccum Helium Leak Detector

,

Modular Helium Leak Detector

,

Helium Leak Detector
Leave a Message
Product Description

Introduction of Helium Leak Detector



Helium Leak Detector



Helium leak detector is used to find small leaks or larger leaks in bigger volumes. The helium is used as a tracer gas and its concentration is measured. This guide to helium leak testing should outline the basics of using this leak testing method. Helium is one of the smallest gas molecules and is inert. Being inert, helium is relatively safe to use (rather than hydrogen) and will not react with any of the materials within the part to be tested. In most helium leak testing applications, a mass spectrometer is used to detect helium. Although, it is also possible to use a residual gas analyser. Helium leak testing can generally be between one thousand and one million times more sensitive than using pressure decay techniques.





Technical Parameters of Helium Leak Detector:



SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector Price

Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

ULTRA: DN25KF

FINE: DN16KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

5inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

ULTRA:40

FINE: 200

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5.0*10 -9 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode

5.0*10-13 Pa.m3/s

Startup Time (min)

≤2

Diamension

337*240*318mm

Power Supply

DC24V (±5%)

Language

Chinese/English



Features of Helium Leak Detector:


1. Modular structure design for easy system integration.



2. Various system controls available



3. Lightweight and compact



4. Feature-rich and easy to operate,  more reliable and smart





Applications of Helium Leak Detector:



1. Pharmaceutical Industry: The pharmaceutical industry has experienced enormous progress in terms of technological developments and drug delivery system innovations over the last two decades. However, such developments have created new quality assurance challenges for drug manufacturers. As a result, pharmaceutical manufacturers give major priority to both quality control procedures and pharmaceutical package leak detection.



2. Medical Devices Industry: In the medical device industry, package integrity testing is important since product failure presents considerable risks to patients and healthcare professionals, as well as liability for manufacturers. As a result, medical device industries use various CCI test methods including helium leak detection to ensure package integrity.



SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector 0



Methods of Helium Leak Detection (Helium Leak Detector)

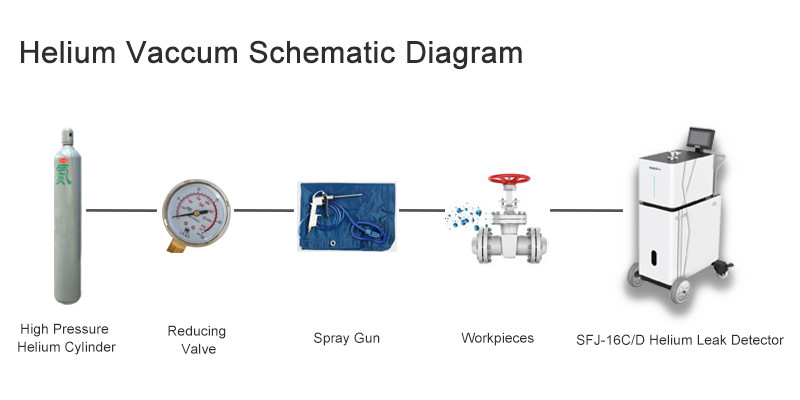

Helium Vacuum Method

SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector 1Helium Hood Method



SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector 2



Negative Pressure Method

SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector 5

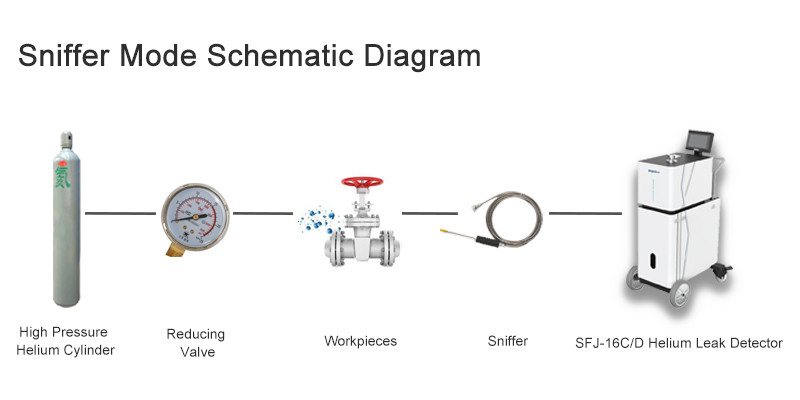

Sniffer Method

SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector 6

SFJ-16M Modular Vaccum Leak Tester Helium Leak Detector 7
