Standard MES Interface Helium Leak Detector Equipment for Hydrogen Energy Leakage Detection

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector MES Interface Standard
Leak Rate Display Numbers, Bar Charts, Graphs Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Operating Temperature 0~40°C Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s Leak Detection Port DN25KF
High Light

Portable Helium Gas Leak Detector

,

MES Interface Helium Leak Detector

,

1800Pa Helium Leak Detector

Leave a Message
Product Description

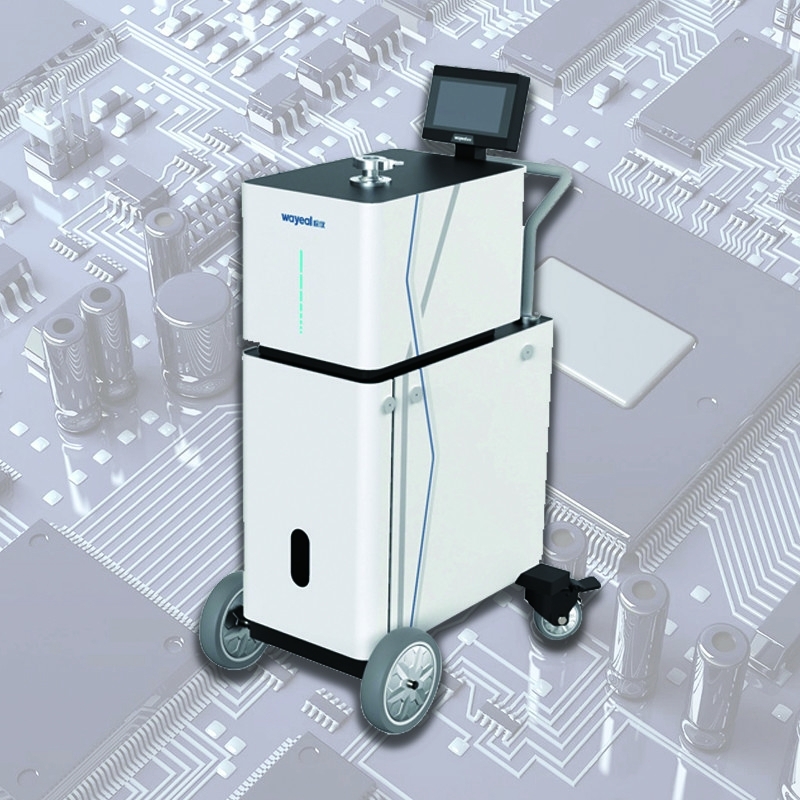

Introduction of Helium Leak Detector SFJ-16C:



Helium Leak Detector



A helium leak detector also known as a helium mass spectrometer leak detector (MSLD), which is a high-quality, versatile instrument designed for accurate and precise leak detection and measurement of leaks in various industrial and scientific applications.



Technical Parameters of Helium Leak Detector SFJ-16C:



Product Name

Helium Leak Detector

Ion Source

2pcs, Iridium Coated Yttrium Oxide, Automatic Switching

Start Time (min)

≤1.58min

Detection Method

Helium Mass Spectrometer

Dimension

475 * 714 * 1168mm

MES Interface

Standard

Response Time (s)

<1s

User Interface

7-inch Color Touch Screen

Leak Detection Port

DN25KF

I/O Input Output Interface

8 Inputs, 8 Outputs

Leak Rate Display

Numbers, Bar Charts, Graphs

Key Features

Industrial Vacuum Detection, Helium Leak Detection

Minimun Detectable Leak Rate(Pa.m3/s)/Vacuum Mode

5.0*10-13

Minimun Detectable Leak Rate(Pa.m3/s)/Sinffer Mode

2.5*10-9

Maximum Detectable Leak Rate(Pa)

1800

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Backing Pumps

Rotart Vane Vacuum Pump

Power Supply

AC220V, 50Hz/60Hz



Features of Helium Leak Detector SFJ-16C



  • Harmonic Decoupling Algorithm
  • Intelligent Filtering Algorithm
  • High Peormance Molecular Pumps
  • Intelligent Operating System
  • Signal Scan Calibration Algorithm
  • Wireless Remote Control
  • Multi-stage Signal Amplication Technology





Applications of Helium Leak Detector SFJ-16C



Helium leak detectors are essential for industries that require precise and efficient leak detection. Our helium leak detector is suitable for a wide range of applications, including:

  • Vacuum leak detection in industrial equipment
  • Leakage detection in semiconductor manufacturing
  • Refrigeration and air conditioning systems
  • Leak detection in automotive components
  • Aerospace and aviation industry
  • Research and development laboratories



Standard MES Interface Helium Leak Detector Equipment for Hydrogen Energy Leakage Detection 0



Methods of Helium Leak Detection



Negative Pressure Method

Standard MES Interface Helium Leak Detector Equipment for Hydrogen Energy Leakage Detection 1



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Standard MES Interface Helium Leak Detector Equipment for Hydrogen Energy Leakage Detection 2





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Standard MES Interface Helium Leak Detector Equipment for Hydrogen Energy Leakage Detection 3





Sniffer Method

Standard MES Interface Helium Leak Detector Equipment for Hydrogen Energy Leakage Detection 4
