Place of Origin:
China
Brand Name:
Wayeal

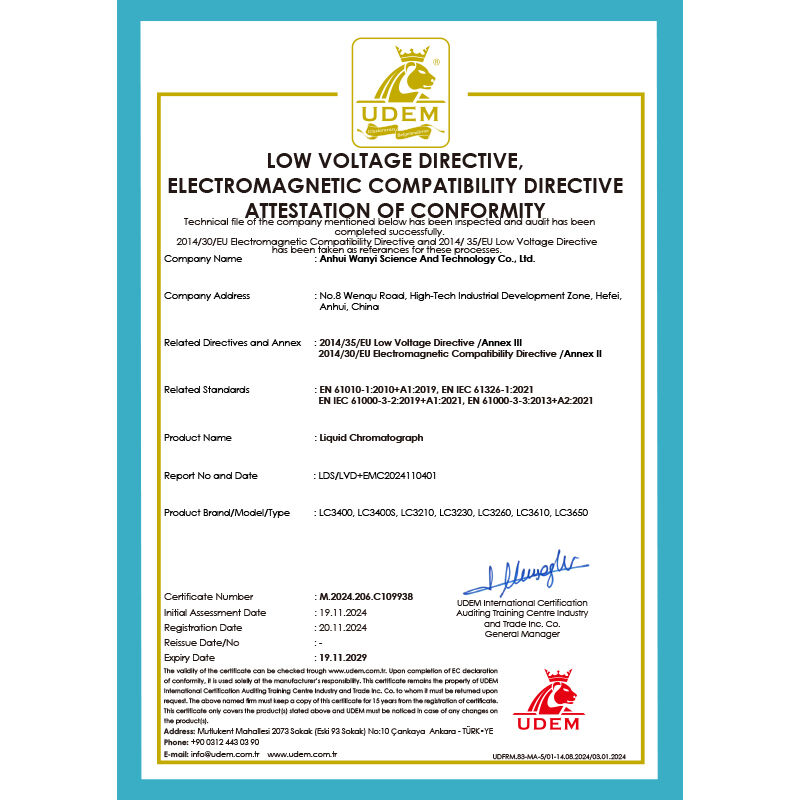

Certification:
CE
Model Number:
LC3200

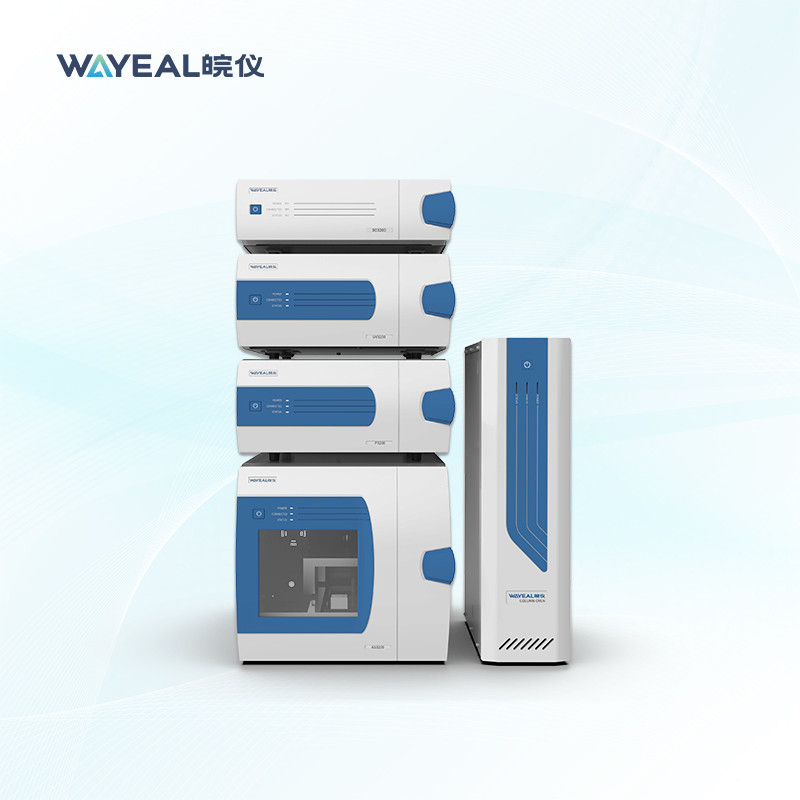

OEM 220V 50Hz Modular HPLC High-Performance Liquid Chromatography Instrument LC3200
Description of High Performance Liquid Chromatography Instrument:
The High Performance Liquid Chromatograph (HPLC) Instrument is an advanced chromatography instrument that is designed to achieve high precision and accuracy in analytical testing. It is suitable for a wide range of applications in clinical, environmental, pharmaceutical, and food analysis, and is capable of providing reliable and precise results. The HPLC liquid chromatography instrument has a user-friendly interface, making it easy to use and ideal for a variety of laboratory settings. With its advanced features, the HPLC instrument is a must-have for any laboratory.
Technical Data of High Performance Liquid Chromatography Instrument:
| Manufacturer: | Wayeal |
| Product Name: | Liquid Chromatography Instrument |
| Working Power Supply | 220V, 50Hz |
| Ambient Temperature | 10~40°C |
| Relative Humidity | 20~85% |
| Qualitative Repeatability | ≤0.2% |
| Quantitative Repeatability | ≤0.4% |
| High Pressure Constant Flow Pump | |
| Flow Rate Range | 0.001~10.000mL/min |
| Setting Step | 0.001mL/min |
| Pressure Range | 0~42MPa |
| Pressure Pulsation | 0.1MPa |
| Flow Rate Set Error | ±0.2% |
| Flow Rate Stability | RSD≤0.06% |
| Gradient Error | ±1% |
| Column Oven | |
| Temperature Control Range | 4~85°C |
| Temperature Stability | ±0.02°C |
| Temperature Setting Resolution | 0.1°C |
| Autosampler | |
| Injection Volume Repeatability | ＜0.5%RSD |
| Linearity | ＞0.9999 |
| Cross Contamination | ＜0.002% |
| Injection Volume Accuracy Error | ±1% |
| Sample Positions | 120 |
| Injection Volume | 1~100μL |
| UV Detector | |
| Baseline Noise | ≤2.0*10-6Au |
| Baseline Drift | ≤1*10-5Au/h |
| Mini Detection Concentration | ≤3.0*10-9g/mL (naphthalene/methanol) |
| Spectral Range | 188~900nm |
| Wavelength Error | ≤±0.1nm |
| Wavelength Repeatability | ≤±0.1nm |
| Linearity Range | ≥103 |
| DA Detector | |
| Baseline Noise | ≤4*10-5Au |
| Baseline Drift | ≤3*10-5Au/h |
| Mini Detection Concentration | ≤2*10-8g/mL |
| Spectral Range | 190~800nm |
| Wavelength Error | ≤±0.1nm |
| Wavelength Repeatability | ≤±0.1nm |
| Linearity Range | ≥ 104 |
| ELS Detector | |
| Baseline Noise | ≤ 0.0037mV |
| Baseline Drift | ≤ 0.0026mV/30min |
| Evaporation Gas Flow Range | (0 ~ 3) SLM |
| Atomization Temperature Range | Room temperature ~ 90℃ |
| Evaporation Temperature Range | Room temperature～110℃ |
| Detection Chamber Temperature Range | Room temperature～60℃ |
| Input Air Pressure | (4 ~ 7) bar |
| FL Detector | |
| Baseline Noise | ≤ 5×10-6 FU |
| Baseline Drift | ≤ 2 × 10-5 FU/30min |
| Spectral Range | (200 ~ 650) nm |
| Wavelength Error | ± 0.1 nm |
| Linearity Range | ≥ 104 |
| RI Detector | |
| Detection Range | 0.25 ~ 512 μRIU |
| Linearity Range | ≥ 600 μRIU |
| Response Time | 0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec; |
| Cell Volume | 8μL |
Support and Services:
Liquid Chromatography Instrument provides technical support and services to ensure the instrument is running optimally. Our technical support team can provide advice and guidance on any technical issues you may have. We also offer training courses and seminars to help you better understand how to use and maintain your Liquid Chromatography Instrument. We also have a database of FAQs and troubleshooting tips that you can access anytime.
