Manufacturer:	Wayeal

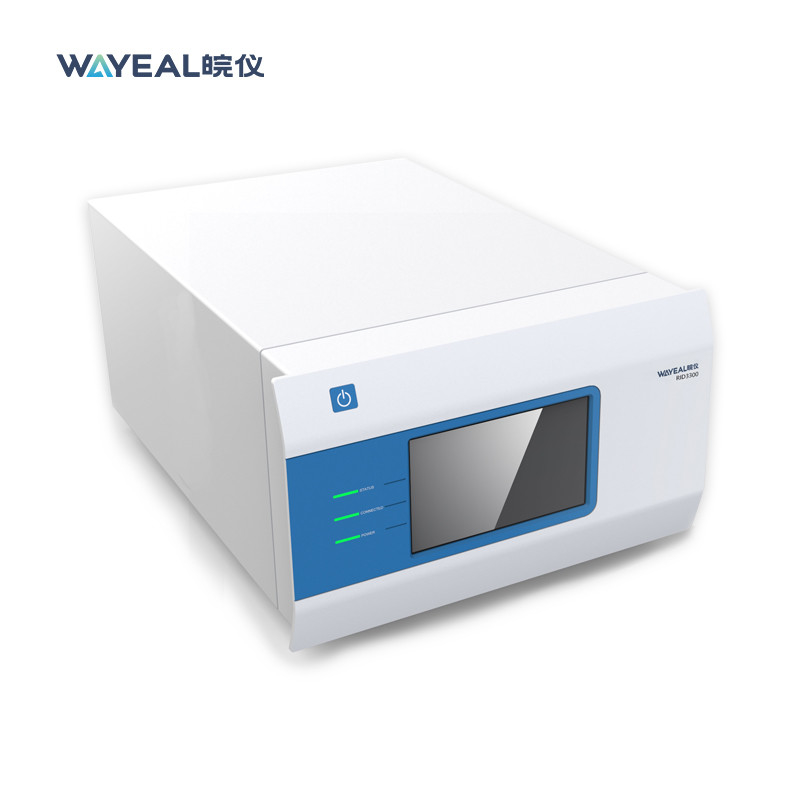

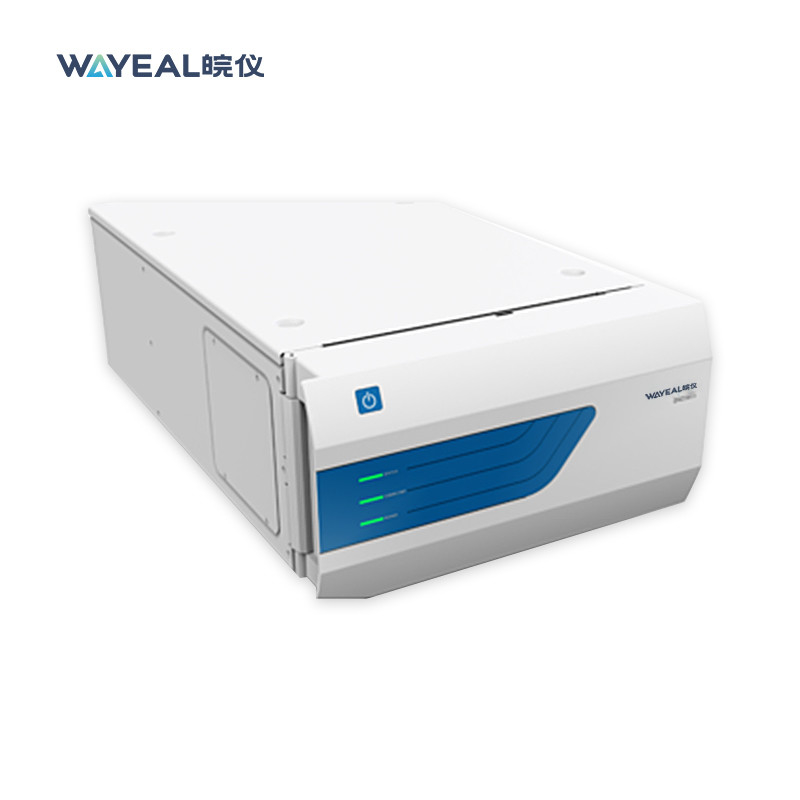

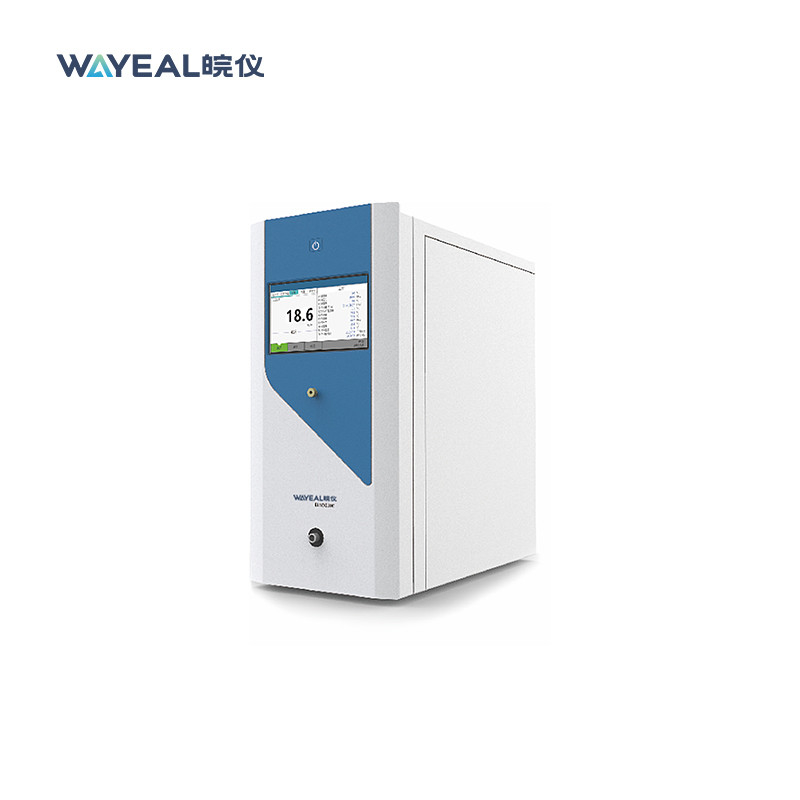

Product Name:	Liquid Chromatography Instrument
Working Power Supply	220V, 50Hz
Ambient Temperature	10~40°C
Relative Humidity	20~85%
Qualitative Repeatability	≤0.2%
Quantitative Repeatability	≤0.4%
High Pressure Constant Flow Pump
Flow Rate Range	0.001~10.000mL/min
Setting Step	0.001mL/min
Pressure Range	0~42MPa
Pressure Pulsation	0.1MPa
Flow Rate Set Error	±0.2%
Flow Rate Stability	RSD≤0.06%
Gradient Error	±1%
Column Oven
Temperature Control Range	4~85°C
Temperature Stability	±0.02°C
Temperature Setting Resolution	0.1°C
Autosampler
Injection Volume Repeatability	＜0.5%RSD
Linearity	＞0.9999
Cross Contamination	＜0.002%
Injection Volume Accuracy Error	±1%
Sample Positions	120
Injection Volume	1~100μL
UV Detector
Baseline Noise	≤2.0*10^-6Au
Baseline Drift	≤1*10^-5Au/h
Mini Detection Concentration	≤3.0*10^-9g/mL (naphthalene/methanol)
Spectral Range	188~900nm
Wavelength Error	≤±0.1nm
Wavelength Repeatability	≤±0.1nm
Linearity Range	≥10³
DA Detector
Baseline Noise	≤4*10^-5Au
Baseline Drift	≤3*10^-5Au/h
Mini Detection Concentration	≤2*10^-8g/mL
Spectral Range	190~800nm
Wavelength Error	≤±0.1nm
Wavelength Repeatability	≤±0.1nm
Linearity Range	≥ 10⁴
ELS Detector
Baseline Noise	≤ 0.0037mV
Baseline Drift	≤ 0.0026mV/30min
Evaporation Gas Flow Range	(0 ~ 3) SLM
Atomization Temperature Range	Room temperature ~ 90℃
Evaporation Temperature Range	Room temperature～110℃
Detection Chamber Temperature Range	Room temperature～60℃
Input Air Pressure	(4 ~ 7) bar
FL Detector
Baseline Noise	≤ 5×10^-6 FU
Baseline Drift	≤ 2 × 10^-5FU/30min
Spectral Range	(200 ~ 650) nm
Wavelength Error	± 0.1 nm
Linearity Range	≥ 10⁴
RI Detector
Detection Range	0.25 ~ 512 μRIU
Linearity Range	≥ 600 μRIU
Response Time	0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec;
Cell Volume	8μL
