High Performance Liquid Chromatography Instrument for Accurate Reliable Analysis

Name: High Performance Liquid Chromatography Instrument for Accurate Reliable Analysis
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: LC3200S
Price: 15,400.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Wayeal

Certification: CE

Model Number: LC3200S

Trading Properties

Minimum Order Quantity: 1 Unit

Price: Negotiate

Payment Terms: T/T

Supply Ability: 50 Units/Month

hplc liquid chromatography

hplc testing equipment

hplc lab equipment

Specifications

Column Temperature:	4-85°C	Linearity:	>0.9999
Wavelength Range:	190-800nm	Model:	LC3200S
Manufacturer:	Wayeal	Software:	SmartLab
Flow Rate:	0.001-10mL/min	Weight:	188Kg
High Light:	Liquid Chromatography Instrument 800 Nm , Liquid Chromatography Instrument With Column , Liquid Chromatography Instrument 190 Nm

Product Description

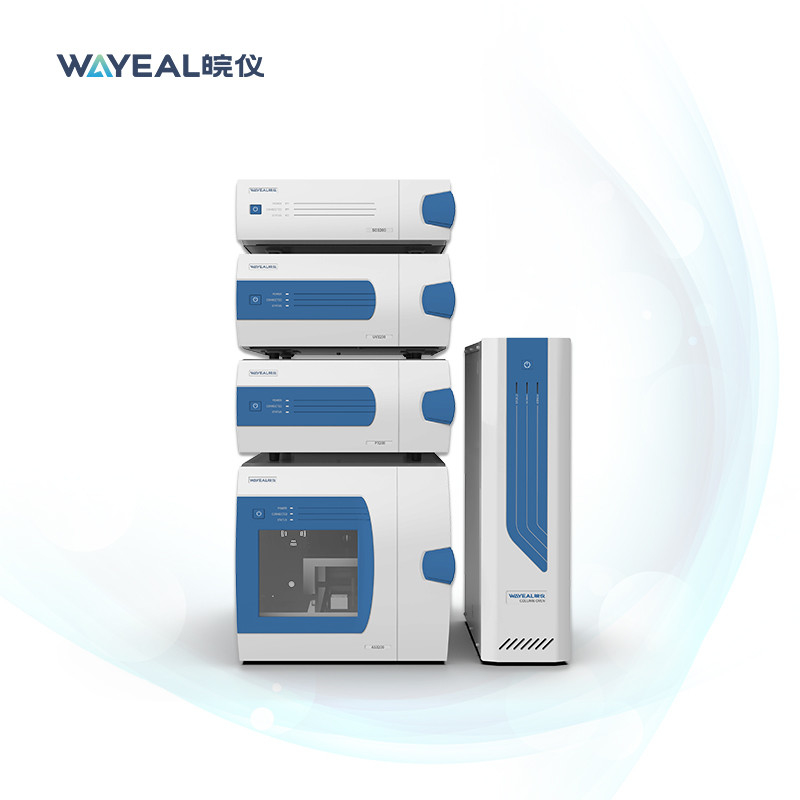

High-Performance Liquid Chromatography (HPLC) Instrument with Column Temperature 4-85°C for Accurate & Reliable Analysis

Description of High Performance Liquid Chromatography Instrument:

The Liquid Chromatography Instrument (LC) is a high-performance liquid chromatograph (HPLC) designed to detect and analyze samples quickly and accurately. It is a powerful tool for many research and industrial applications. With its advanced features and high-precision capabilities, the LC is the perfect choice for a wide variety of analytical applications.

Technical Data of High Performance Liquid Chromatogaphy Instrument:

Manufacturer:	Wayeal
Product Name:	Liquid Chromatography Instrument
Working Power Supply	220V, 50Hz
Ambient Temperature	10~40°C
Relative Humidity	20~85%
Qualitative Repeatability	≤0.2%
Quantitative Repeatability	≤0.4%
High Pressure Constant Flow Pump
Flow Rate Range	0.001~10.000mL/min
Setting Step	0.001mL/min
Pressure Range	0~45MPa
Pressure Pulsation	0.1MPa
Flow Rate Set Error	±0.2%
Flow Rate Stability	RSD≤0.06%
Gradient Error	±1%
Column Oven
Temperature Control Range	4~85°C
Temperature Stability	±0.02°C
Temperature Setting Resolution	0.1°C
Autosampler
Injection Volume Repeatability	＜0.5%RSD
Linearity	＞0.9999
Cross Contamination	＜0.002%
Injection Volume Accuracy Error	±1%
Sample Positions	120
Injection Volume	1~100μL
UV Detector
Baseline Noise	≤2.0*10^-6Au
Baseline Drift	≤1*10^-5Au/h
Mini Detection Concentration	≤3.0*10^-9g/mL (naphthalene/methanol)
Spectral Range	188~900nm
Wavelength Error	≤±0.1nm
Wavelength Repeatability	≤±0.1nm
Linearity Range	≥10³
DA Detector
Baseline Noise	≤4*10^-5Au
Baseline Drift	≤3*10^-5Au/h
Mini Detection Concentration	≤2*10^-8g/mL
Spectral Range	190~800nm
Wavelength Error	≤±0.1nm
Wavelength Repeatability	≤±0.1nm
Linearity Range	≥ 10⁴
ELS Detector
Baseline Noise	≤ 0.0037mV
Baseline Drift	≤ 0.0026mV/30min
Evaporation Gas Flow Range	(0 ~ 3) SLM
Atomization Temperature Range	Room temperature ~ 90℃
Evaporation Temperature Range	Room temperature～110℃
Detection Chamber Temperature Range	Room temperature～60℃
Input Air Pressure	(4 ~ 7) bar
FL Detector
Baseline Noise	≤ 5×10^-6 FU
Baseline Drift	≤ 2 × 10^-5FU/30min
Spectral Range	(200 ~ 650) nm
Wavelength Error	± 0.1 nm
Linearity Range	≥ 10⁴
RI Detector
Detection Range	0.25 ~ 512 μRIU
Linearity Range	≥ 600 μRIU
Response Time	0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec;
Cell Volume	8μL

Applications of High Performance Liquid Chromatography Instrument:

Wayeal LC3200S High Performance Liquid Chromatography Instrument is a reliable HPLC system for chromatographic separation. It is perfect for any laboratory that needs a robust and accurate HPLC instrument. This HPLC machine has a wide range of features, including a large injection volume of 1-100μL, a wavelength range of 190-800nm, and up to 120 samples positions. It is CE certified and comes with a wooden case for easy transportation.
