TQ9200 Liquid Chromatography-Mass Spectrometry (LC-MS/MS) System

Name: TQ9200 Liquid Chromatography-Mass Spectrometry (LC-MS/MS) System
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: TQ9200
Price: 15,400.00 USD
Availability: InStock

Basic Properties

Place of Origin: Anhui, China

Brand Name: Wayeal

Certification: CE

Model Number: TQ9200

Trading Properties

Minimum Order Quantity: 1 Unit

Price: Negotiation

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30 Units/ Month

hplc lab equipment

Specifications

Product name:	TQ9200 LC-MS/MS	Working power supply:	220V±22V, 50Hz±0.5Hz
Ambient temperature:	15-30°C	Relative humidity:	Not More Than 80%
Pump drive mode:	Linear Motor Pump	Gradient mode:	Binary (4-way Solvent)
High Light:	liquid chromatography mass spectrometer , hplc ms , chromatography mass spectrometer

Product Description

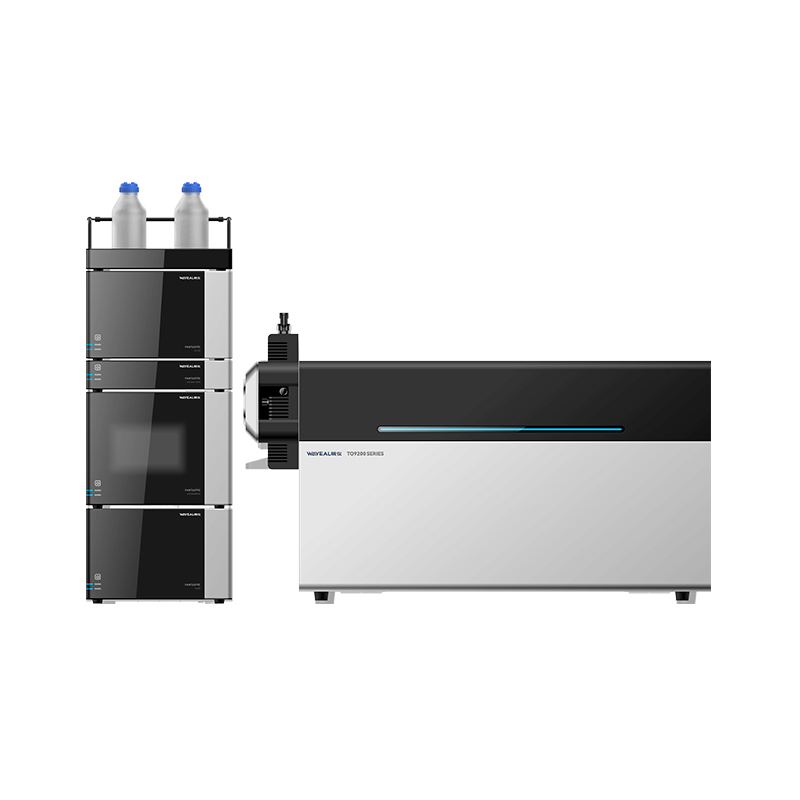

TQ9200 Liquid Chromatography-Mass Spectrometry (LC-MS/MS) System

Introduction of LC-MS/MS

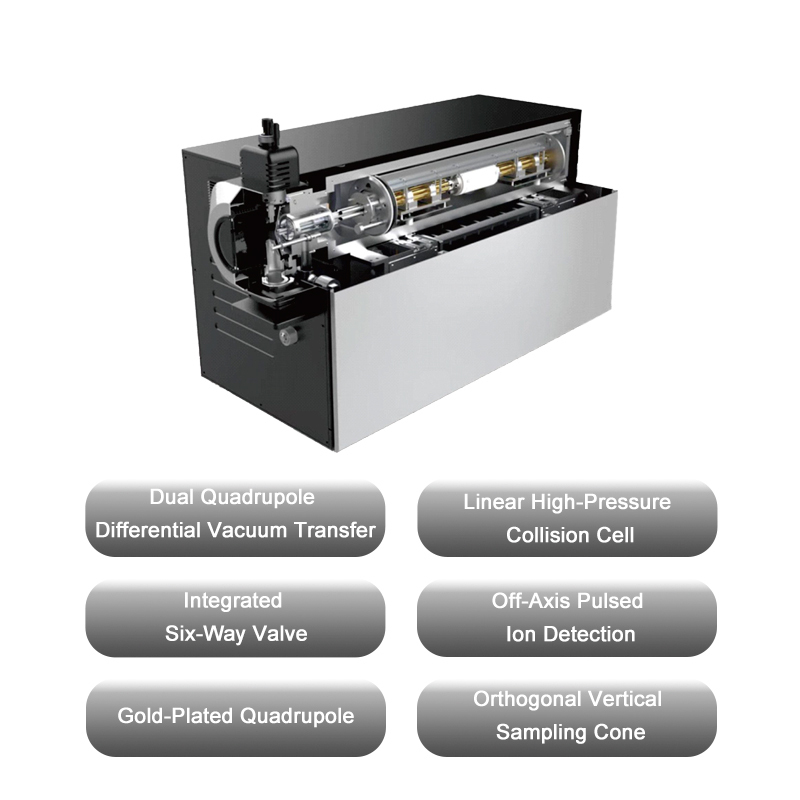

The system consists of the LC3600 ultra-high-performance liquid chromatograph and the TQ9200 triple quadrupole mass spectrometer. It incorporates core technologies such as an ultra-high-pressure direct-drive pump, ultra-high-pressure needle-in-flowpath lossless injection, an actively preheated column oven, a highly stable EI source, a high-durability vacuum interface, high-efficiency ion transfer lenses, and a tandem quadrupole high-stability drive system. These innovations collectively deliver stable, sensitive, and durable instrument performance.

Technical Parameters of TQ9200

Working conditions
Working power supply	220V±22V, 50Hz±0.5Hz
Ambient temperature	15-30°C
Relative humidity	not more than 80%
UHPLC
Pump drive mode	linear motor pump
Gradient mode	binary (4-waysolvent)
Flow rate setting range	0.001-2.000mL/min
Flow rate setting increment	0.001mL/min
Maximumoperating pressure	150MPa
Degassing	5-channel online degassing
Autosampler
Maximumwithstand pressure	150MPa
Sampling volume range	0.1-20.0μL (50μL optional)
Linearity	R≥0.9999
Cross-contamination	<0.004 %
Number of samples	108 (2*54,2 ml), supports 96 shallow well plate, 96 deep well plate, 384 well plate
Temperature setting range	4.0~40.0 ℃ (optional refrigeration)
Temperature stability	±2 ℃
Feed rate	12s
Column temperaturechamber
Temperature setting range	20.0-90.0 ℃
Temperature stability	±0.02 ℃/h
Temperature setting value error	± 0.1 ℃

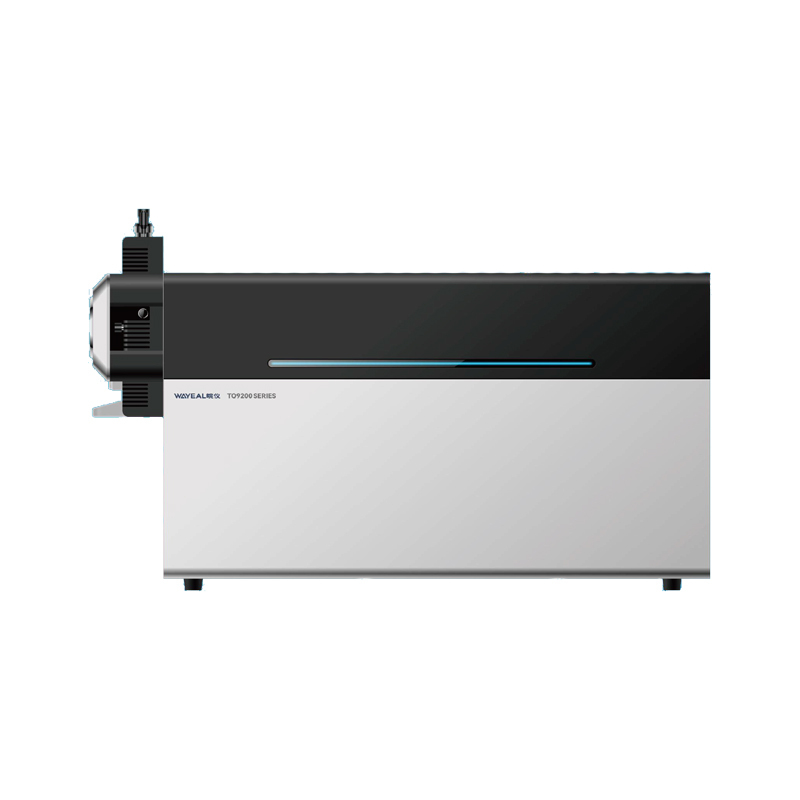

Triple quadrupole mass spectrometer
Mass analysis range	5-1250
Scanning speed	12000 Da/s
Mass resolution	0.6-0.8 Da (609 mass peaks)
Linearity range	≥1E4
Mass accuracy	0.1 Da
Massstability	0.1 Da/24h
Limit of detection (rifampicin)	0.1pg
Sensitivity	S:N >20w:1 on a 1pg Risperdal column
System indicators
Qualitative reproducibility	RSD≤5%
Quantitative reproducibility	RSD≤5%

Applications of LC-MS/MS

Forensic Safety
Detection of Toxicants (Drugs) in Blood and Urine
Rapid Identification of Drug Impurities
Illegally Adulterated Chemicals in Pharmaceuticals

Food Safety
Determination of Aflatoxin M-group in Dairy Products
Analysis of 204 Pesticide Residues in Tea
Detection of 76 Veterinary Drug Residues in Animal-derived Foods

Environmental Monitoring
Phenoxy Acid Herbicides in Water
Polycyclic Aromatic Hydrocarbons (PAHs) in Electrical and Electronic Products
Sulfonylurea Herbicide Residues in Soil
