Ce Nucleic Acid Testing 96 Wells Real Time Detection PCR Analyzer Fully Automatic

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number GT-96
Minimum Order Quantity 1 Unit
Price Negotiation
Packaging Details 1 unit of pcr analyzer packed in wooden cases
Delivery Time 30 Days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 30 Units/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nucleic Acids Tesing PCR Analyzer Average Heating Rate ≥3.0℃/s
Temperature Control Accuracy ±0.1℃ Temperature Uniformity ±0.1℃
Stability CV≤5% Light Source LED Light
High Light

Fully Automatic PCR Analyzer

,

Fully Automated PCR Analyzer

,

Real Time Detection PCR Analyzer

Leave a Message
Product Description

Ce Nucleic Acid Testing 96 Wells Fully Automatic Real Time Detection PCR Analyzer

Wayeal Clinical Medical Laboratory Nucleic Acids Testing Machine Real Time Pcr Analyzer



Product Introduction



A quantitative PCR instrument is a machine that amplifies and detects DNA. It combines the functions of a thermal cycler and a fluorimeter, enabling the process of quantitative PCR. The GT-96 Real-Time Fluorescence PCR instrument is a multiplexed fluorescence PCR analysis technology platform. The maximum throughput of the product is up to 96 samples, enabling five-channel fluorescence detection. The combination of sophisticated optical systems and clever algorithms greatly eliminates fluorescence interferences.



Product Parameters



Ce Nucleic Acid Testing 96 Wells Fully Automatic Real Time Detection PCR Analyzer

Product Size 470*350*530mm
Power Supply 100-220VAC, 50/60Hz, 1000VA
Average Heating Rate ≥3.0℃/s
Average Cooling Rate ≥2.0℃/s
Temperature Control Accuracy ±0.1℃
Temperature Accuracy ±0.1℃
Temperature Uniformity ±0.1℃
Temperature Range 4℃-100℃
Light Source Light Source
Repeatability of Fluorescence Intensity Repeatability of Fluorescence Intensity
Uniformity of Fluorescence Intensity CV≤5%
Linearity of Fluorescence Intensity |r|≥0.990
Detection Channels 5 Channels
Dyes F1:FAM,SYBR Green
F2:HEX,VIC
F3:TAMRA,CY3
F4:ROX,TEXAS Red
F5:CY5
Reaction System 10-100μL
Kinetics Scope 1-1010 copies

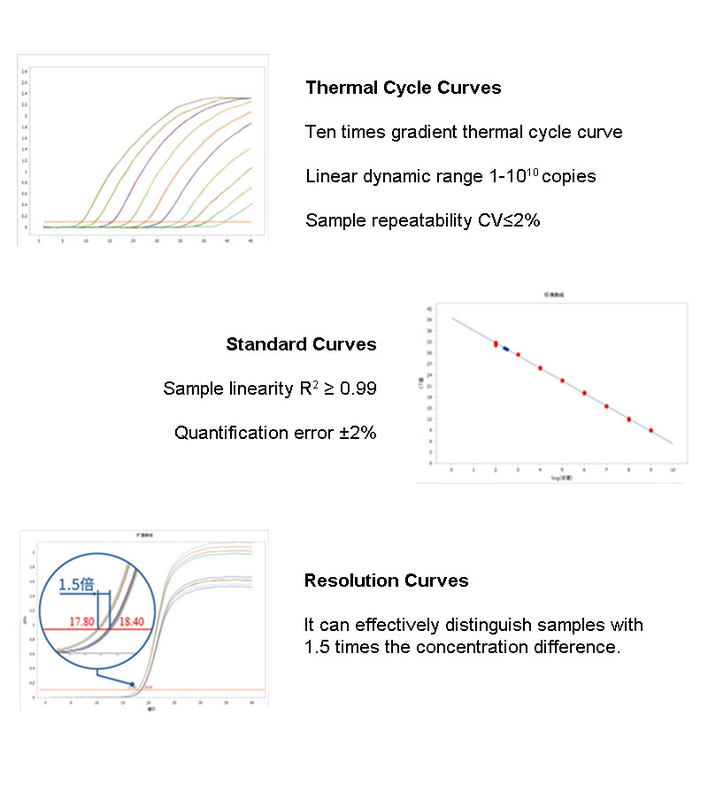

Sample Linearity |r|≥0.990
Quantitative Repeatability CV≤2%
Quantification Error ±2%
Stability CV≤5%

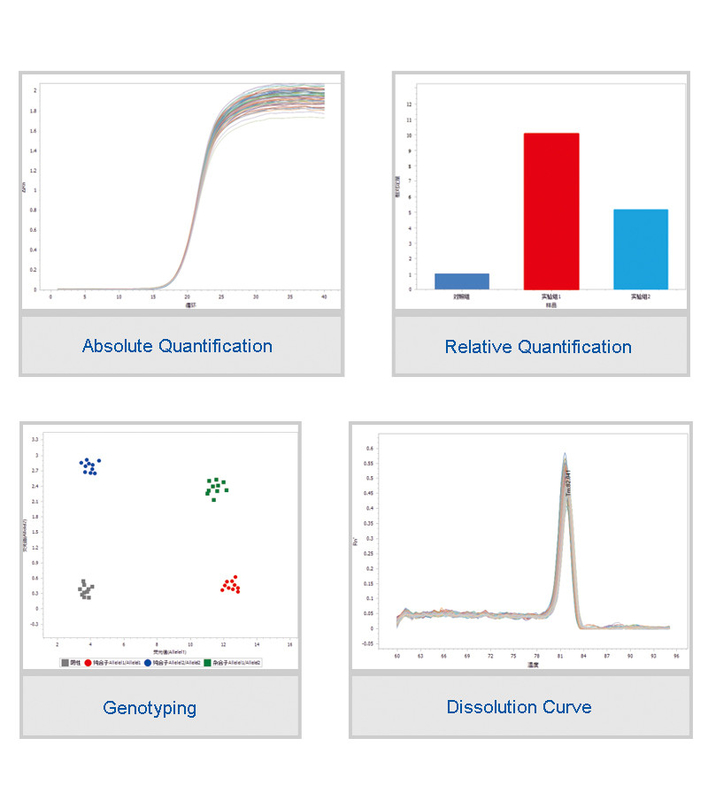

Experiments Absolute quantification,
Relative quantification,
Genotyping,
Dissolution curve



Product Performance



Optical System
1. Maintenance-free and long service life LED excitation light source
2. Large field of view and low distortion lens for reduced edge effect, no scanning and fast reading
3. High-speed, low-noise camera for improved signal sensitivity
4. 5-channel fluorescence detection

Temperature Control System
1. Fast reaction:Semiconductor cooling technology for rapid temperature rise and fall, saving the user's experimental time
2. Good temperature uniformity: multi-temperature zone regulation to ensure the stability of experimental results
3. High accuracy of temperature control: multiple temperature sensors feedback, intelligent algorithm assistance, infinitely close to the target value, improve the accuracy of experimental data

Software Analysis System
1. Open experimental program settings to enhance the convenience of experiments
2. Comprehensive function of analysis and export, making data results more intuitive
3. Database system makes safety data storage
4. The fully upgraded calibration algorithm makes the calibration process simple and easy
5. Multiple forms of report output
6. Free fluorescence channel selection, free extension time setting
7. One PC controls multiple instruments, making it easy to observe experiments
