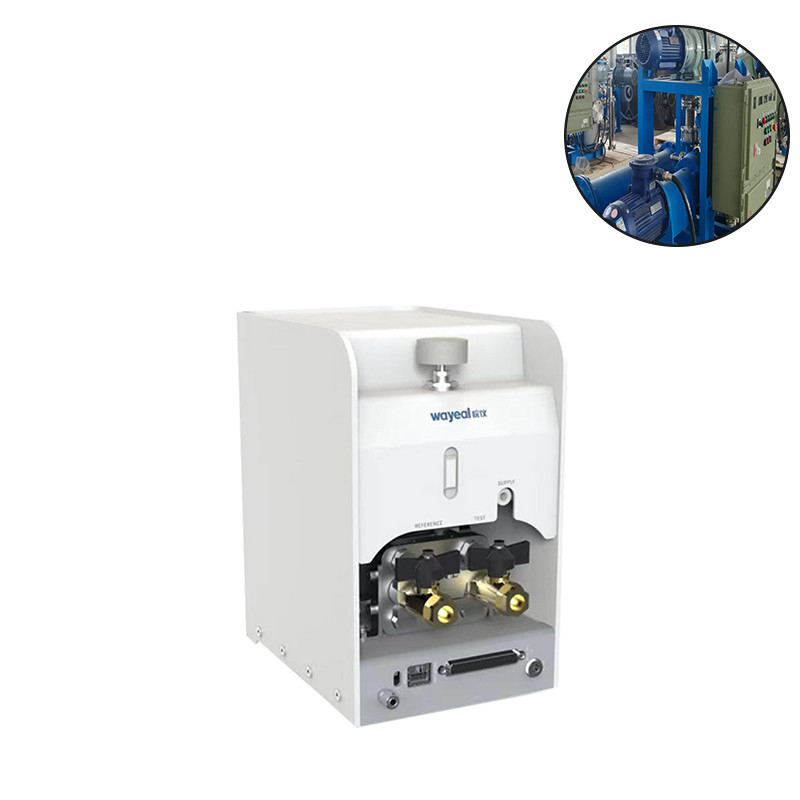

Air Tightness Differential Pressure Helium Leak Detector Modular

  • Air Tightness Differential Pressure Helium Leak Detector Modular
Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number Standard V5
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Differential Pressure Helium Leak Detector Working Power AC 220V+10%,50Hz
Test Pressure KPa、MPa、kg/cm2、psi、mbar. Bar、Torr. MmH,0、mmHg Sensor Error ±0.1%F.S
Weight 20KGS Diamension 321mmx205mmx460mm
High Light

Modular Mass Spectrometer Leak Detector

,

AC 220V Mass Spectrometer Leak Detector

,

Helium Leak Detector AC 220V
Leave a Message
Product Description

Air Tightness Differential Pressure Modular Leak Detection System Helium Leak Detector





Product Description



The Mass Spectrometer Leak Detector is a complete system for localization and measuring of leaks inside or outside of a product. Helium functions as a tracer as it has the unique ability to pass quickly even through very minute leaks. The natural properties of Helium make it very appropriate for leak detection. It has zero toxicity, is non-flammable and does not react with any other substance. Furthermore, this chemically inert element is present in the atmosphere in negligible quantity i.e. 5 ppm. Helium is reported to detect extremely small leaks as the atomic size of the gas is very small, second only to Hydrogen which is extremely reactive and flammable. The size of the leaks which it can detect at standard temperature and pressure range from 10−5(≈ 1 ml/minute) to 10−12(≈ 3 ml/minute) Pa·m3·s−1. Despite its many benefits, Helium is very cheap and easily available.



Product Parameters

Air Tightness Differential Pressure Modular Leak Detection System Helium Leak Detector
Main Models Parameters
Differential Pressure Sensor Display Precision The value can be set to 0 to 4 decimal places
  Sensor Range 0Pa~ +2000Pa
  Sensor Error +0.1%F.S
  Display Precision The value can be set to 0 to 4 decimal places
Direct Pressure Sensor Recommended Test Pressure Range VH90B

Mechanical

Pressure Regulating

 -100kPa~ -1kPa
CH050

Mechanical

Pressure Regulating

 5kPa~ 100kPa
CH600 Electronic
Pressure Regulation		 5kPa~ 89kPa
CH600D Electronic
Pressure Regulation		 5kPa~ 490kPa
CH1000 Mechanical
Pressure Regulating		 50kPa~ 1200kPa
CH1000D Electronic
Pressure Regulation		 50kPa~ 890kPa
CH4000 Mechanical Pressure Regulating 50kPa~4000kPa
CH500 Mechanical
Pressure Regulating		 10kPa~500kPa (seals leak detector)
ZF500 Mechanical
Pressure Regulating		 -100kPa~-1kPa,10kPa~500kPa
ZF2500 Mechanical
Pressure Regulating		 -100kPa~-1kPa,50kPa~2400kPa
ZF600 Mechanical
Pressure Regulating		 -100kPa～-1kPa,10kPa～600kPa(Optional)
ZF2400 Mechanical
Pressure Regulating		 -100kPa～-1kPa,50kPa～2400kPa(Optional)
Sensor Error   +0.1%F.S.
Display Unit Test Pressure kPa,MPa,kg/cm2,psi,mbar. bar,Torr. mmH,0,mmHg
Leakage Rate Pa,kPa,Pa/s,Pa.m3/s,mL/s,mL/min,mL/h. L ./min. L /h. SCCM
Parameter Program Number 64 groups (1~64)
Test Beat Setting 0 ~ 999 seconds, test time 1800 seconds
Power Supply AC 220V+10%,50Hz
Test Pressure Source Clean, dry, adequate flow, not less than 500KPa and 100KPa above the test pressure source
Overall Dimensions Standard V5 330mmx222mmx448mm
  Standard V6 321mmx205mmx460mm
  Modular 160mmx268mmx273mm
Weight About 20kgs







Product Performance



1. Modular structure design
2. Automatic evacuation pressure and time setting, high leak detection efficiency;
3. It is widely used for industrial and multi-station system integration,
4. With the central control system can realize unmanned inspection operation, suitable for assembly line applications.



Product Application



It is suitable for refirgeration, air conditioning, automative industry, new energy, lithium battery and all vacuum systems



Air Tightness Differential Pressure Helium Leak Detector Modular 0

Air Tightness Differential Pressure Helium Leak Detector Modular 1



Helium Mass Spectrometer Leak Detector

Air Tightness Differential Pressure Helium Leak Detector Modular 3

Air Tightness Differential Pressure Helium Leak Detector Modular 4

Air Tightness Differential Pressure Helium Leak Detector Modular 5

Air Tightness Differential Pressure Helium Leak Detector Modular 6
Air Tightness Differential Pressure Helium Leak Detector Modular 7

Air Tightness Differential Pressure Helium Leak Detector Modular 8
