Wayeal Flame Atomic Absorption Spectroscopy AAS For Metal Analysis

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number AA2210
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 25 days
Supply Ability 20 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name AAS Atomic Absorption Spectroscopy Machines Models AA2250
Wavelength Range(nm) 185-910 Wavelength Indication Error(mm) ±0.15
Wavelength Repeatability(nm) ≤0.05 Broadband Deviation(nm) ±0.01
High Light

Wayeal Flame Atomic Absorption Spectroscopy

,

Metal Analysis Flame Atomic Absorption Spectroscopy

Leave a Message
Product Description

Wayeal Flame Atomic Absorption Spectroscopy AAS Atomic Absorption Spectrophotometer Machine for Metal Analysis

Product Introduction

Atomic absorption spectrophotometry analyzes the concentration of elements in a liquid sample based on energy absorbed from certain wavelengths of light (usually 190 to 900 nm). Atomic absorption spectrophotometers typically include a flame burner to atomize the sample (most commonly a hollow cathode lamp), a monochromator and a photon detector. Depending on the model, some atomic absorption spectrometers are equipped with a turret or fixed lamp socket that can hold multiple lamps (up to eight) to reduce downtime between samples or allow for sequential analysis.


Product Parameter


Wayeal AA2230 Graphite Furnace AAS Atomic Absorption Spectroscopy Machine Atomic Absorption Spectrophotometer
Models AA2250
Wavelength Range(nm) 185-910
Wavelength Indication Error(mm) ±0.15
Wavelength Repeatability(nm) ≤0.05
Broadband Deviation(nm) ±0.01
Resolution(%) ≤15
Instantaneous Noise(Abs) ±0.0015
Zero Drift(Abs/30min) ±0.001
Boundary Energy:Instantaneous Noise(Abs) ≤0.01
Detection Limit(Flame:Cu ug/mL)) ≤0.002
Apparent Atomization rate(%) ≥12
Detection Limit(Graphite Furnance: Cd pg) ≤0.2
Repeatability(Flame RSD%) ≤0.1
Repeatability(Graphite Furnance RSD%) ≤0.85
Linearity Error(%) ≤2
Background Correction Capability ≥75


Product Features


1. Stability: Double-beam system can automatically compensate the light source drift and wavelength drift caused by the variation of temperature (with the function of the eliminating the affection of wavelength drift on the base line stability) and electronic circuit drift so as to reach a good basic line stability.
2. Full-reflection dual-beam optical path, high optical path stability
3. High precision of measurement: Gas path system is equipped with precision pressure stabilizing and current stabilizing devices to reach stable flame and low noise. Specially designed fine light beam passes through the flame to ensure a high precision analytical test and low characteristic concentration.
4. 6 lamp holders preheat simultaneously to improve detection efficiency

Product Application


Foods and Beverages – In synthetic processed foods, metal pickup takes place due to contact with processing equipment and catalytic conversions. Consumer awareness on food safety is increasing by the day so manufacturers have to ensure that the trace metals do not exceed the permissible limits and this requires rigorous quality control through atomic absorption spectroscopy and other sophisticated instruments.

Oil and Petroleum – Both edible oils and mineral oils require refining before consumption. Such refining operation can involve distillation as well as catalytic refining. Uptake of metals during such operations can lead to deterioration of performance or consumer hazards. Trace metal analysis of engine oil provides useful diagnostic information on the wear and tear of engine parts.

Agriculture – Trace metal constitution of soils in addition to their acidic or basic nature is essential to establish their productivity and nutrient value. Trace metal composition of plants (leaves, stems and roots) gives a fair idea on how the uptake of minerals gets distributed under different growth conditions

Forensics – Trace metal analysis provides valuable information on specimens such as stomach contents for food poisoning, paint chips, fibres and hair strands collected from the scene of a crime

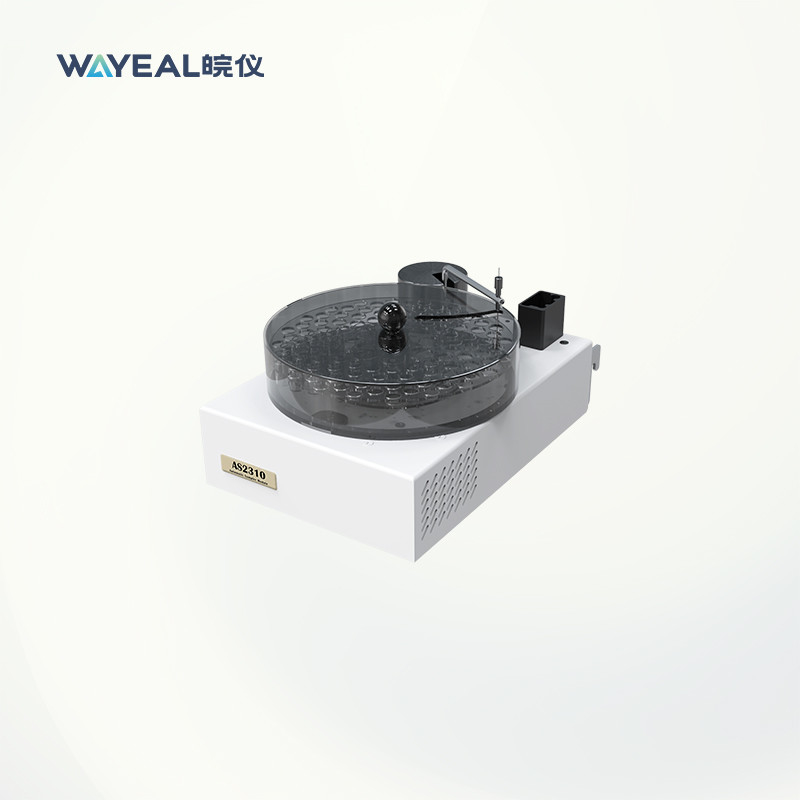

Wayeal Flame Atomic Absorption Spectroscopy AAS For Metal Analysis 0

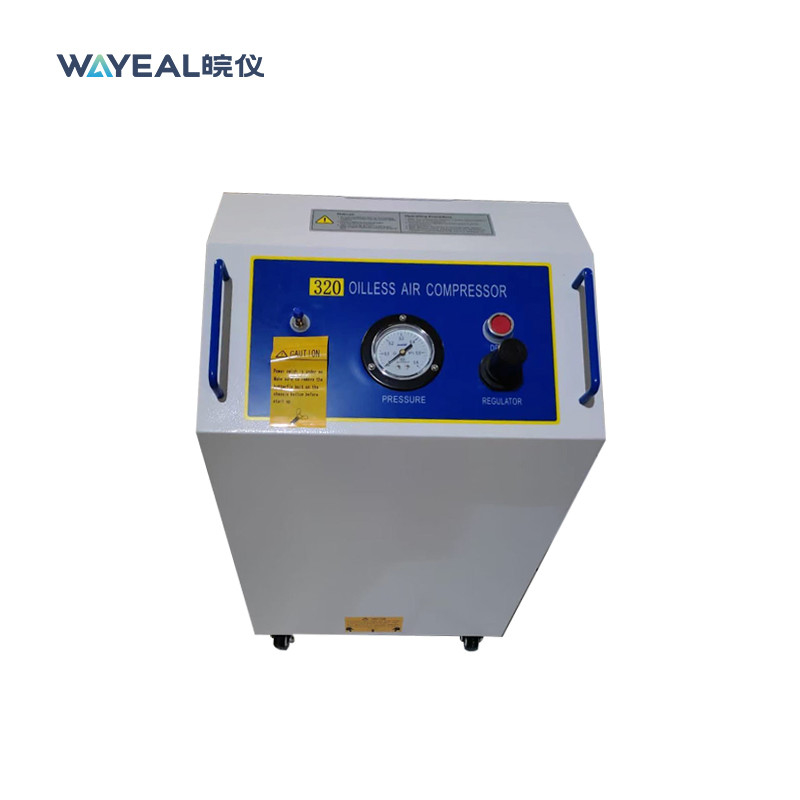

Wayeal Flame Atomic Absorption Spectroscopy AAS For Metal Analysis 1

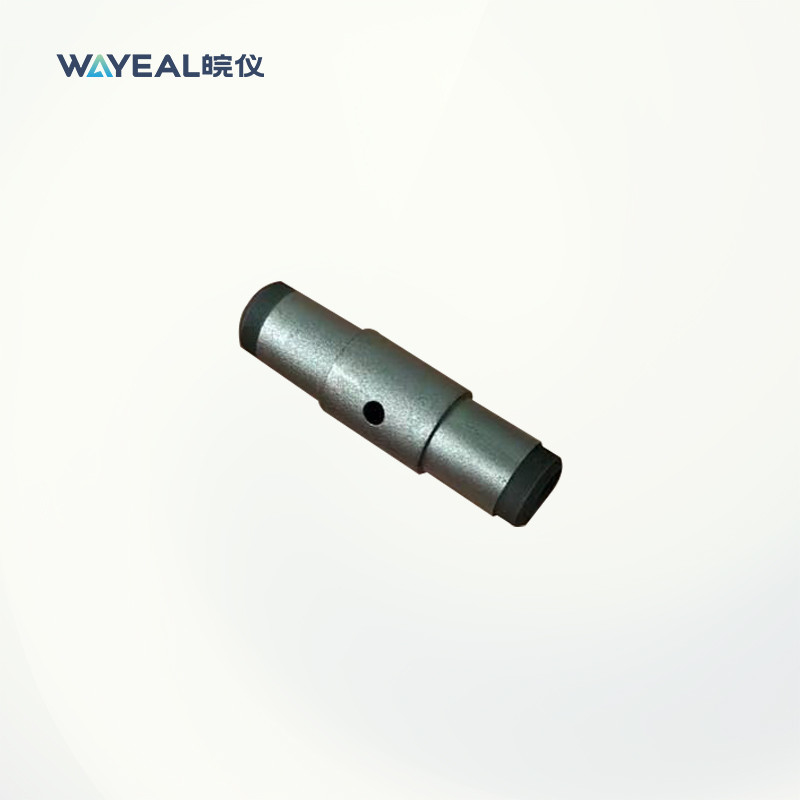

Wayeal Flame Atomic Absorption Spectroscopy AAS For Metal Analysis 2

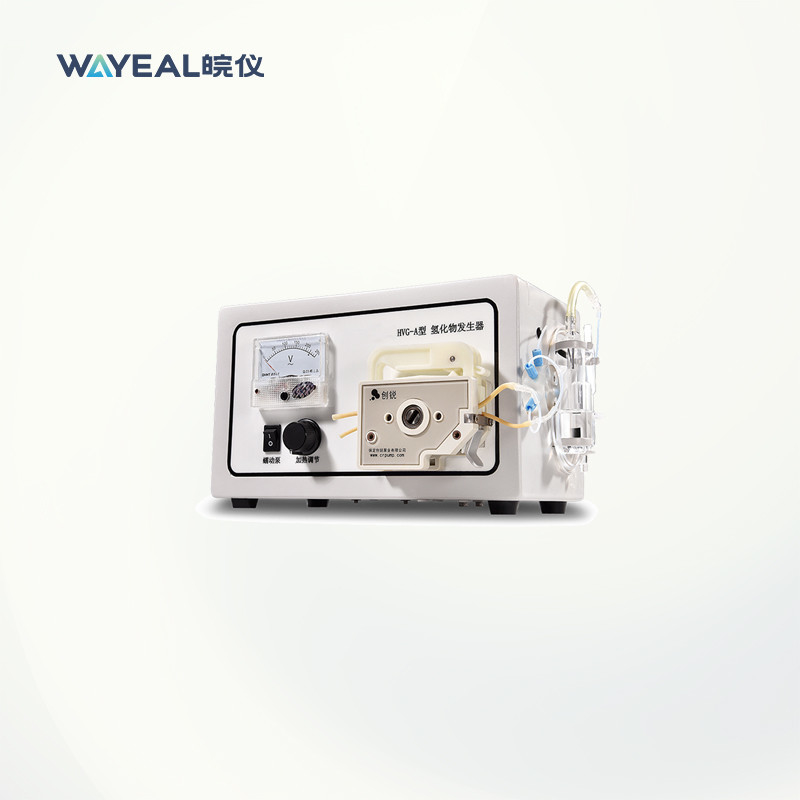

Wayeal Flame Atomic Absorption Spectroscopy AAS For Metal Analysis 3

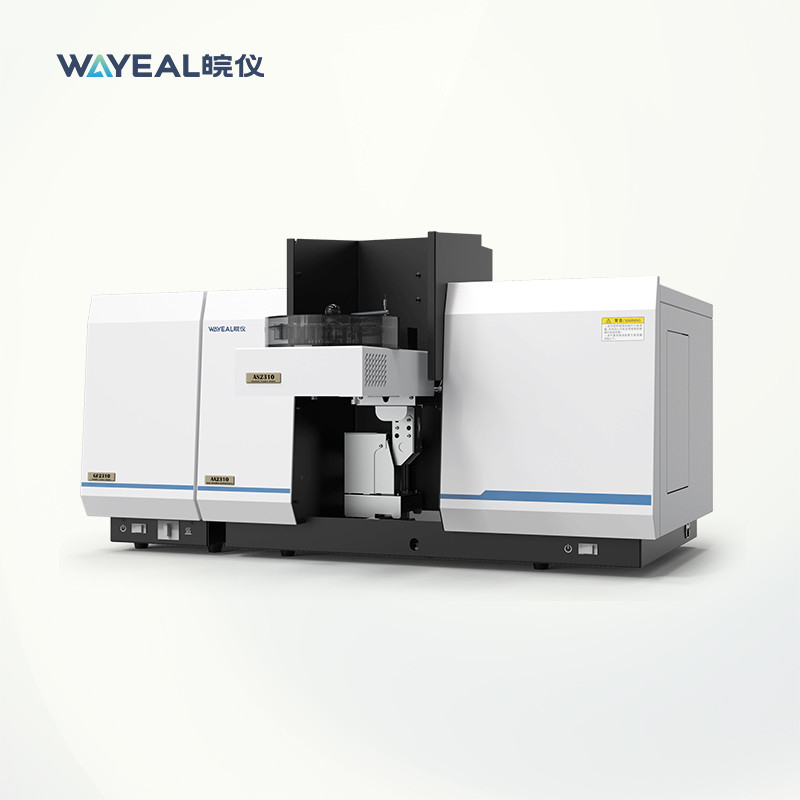

Wayeal Flame Atomic Absorption Spectroscopy AAS For Metal Analysis 4
