Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO
Model Number:
AA2300
Video
Video

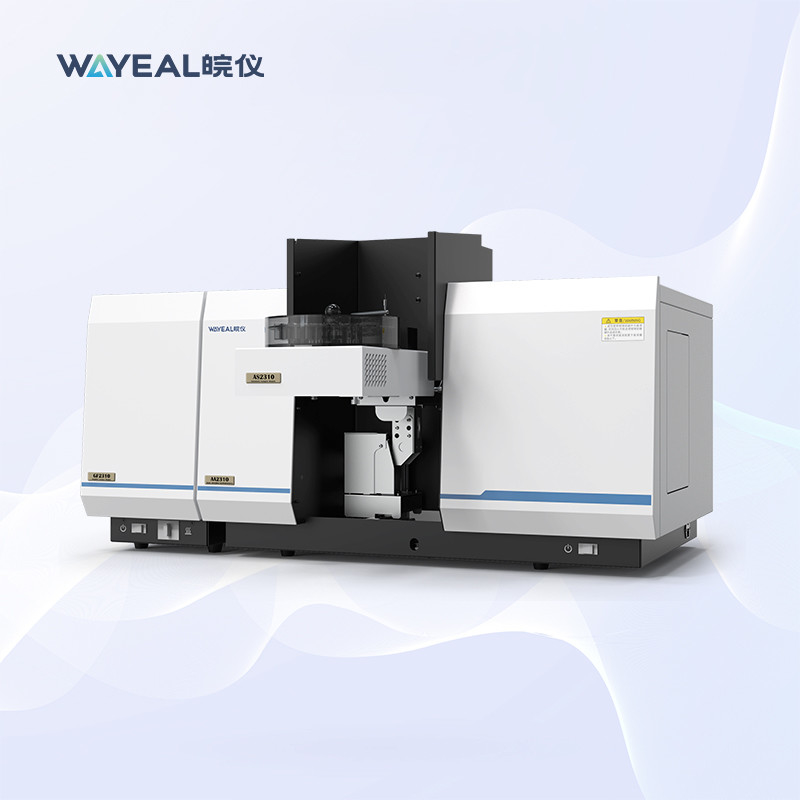

Description of Atomic Absorption Spectrophotometer:
The Atomic Absorption Spectrometer is a highly-accurate instrument designed for heavy metals Analysis. Its power supply is AC220V, and it is capable of atomization from three sources: Flame, Graphite Furnace, andhydride generator. It provides a high-resolution analysis of elemental composition with unparalleled accuracy. Its features include a wide dynamic range and fast response time, making it suitable for a variety of applications. With its robust design and reliable performance, the Atomic Absorption Spectrometer is an ideal choice for elemental analysis.
Technical Parameters of Atomic Absorption Spectrophotometer AA2300:
|
Five Spectral Bandwidths Atomic Absorption Spectrophotometer AC220V |
|
|---|---|
|
Technical Parameters |
Value |
| Atomization Source | Flame, Graphite Furnace, Electrothermal |
| Injection Position | 108 positions |
| Wavelength Range | 185-910nm |
| Power Supply | AC220V, 50Hz |
| Background Correction | D2 Background Correction |
| Name | Atomic Absorption Spectrophotometer |
| Weight | 280kgs |
| Spectral Bandwidth | 0.1, 0.2, 0.4, 1.0, 2.0nm |
| Data Storage | USB, PC |
| Light Source | Halogens, Deuterium, Tungsten |
| Optical System | |
| Wavelength Error | ±0.15nm |
| Wavelength Repeatability | ≤0.05nm |
| Flame Atomizer | |
| Detection Limit (LOD) | Cu by flame method:≤0.002ug/mL |
| Repeatability | RSD≤0.25% |
| Burning Head | Full titanium |
| Graphite Furnace Atomizer | |
| Detection Limit (Cd) | ≤0.3pg |
| Repeatability | RSD≤1.5% |
| Autosampler | |
| Linearity | ＞0.999 |
| Injection Volume | 1~200μL |
| Injection Volume Repeatability | ≤0.1% |
| Repeatability of Results | ≤1.5% |
Applications of Atomic Absorption Spectrophotometer:
In the field of scientific research, atomic absorption spectrophotometer is widely used in the analysis and determination of elements. In geology, it can help researchers accurately determine trace metal elements in rocks, minerals and soil, providing important data for geological exploration and mineral resources development. In biology and medicine, the atomic absorption spectrophotometer is used to determine the concentration of metal ions in biological samples such as blood and urine, which is of great significance for disease diagnosis and treatment monitoring.
