Name: Analytical DAD Detector HPLC Liquid Chromatography Instrument For Aflotoxin Testing
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: LC3200
Price: 15,400.00 USD
Availability: InStock

Home > products > Liquid Chromatography Instrument >

Analytical DAD Detector HPLC Liquid Chromatography Instrument For Aflotoxin Testing

DAD Detector HPLC Instrument

DAD Detector Liquid Chromatography Instrument

Aflotoxin Testing HPLC Instrument

Place of Origin:

Anhui, China

Brand Name:

Wayeal

Certification:

ISO, CE

Model Number:

LC3200

Request A Quote

Product Details

Product Name:

HPLC Liquid Chromatography Instrument

Detector:

DAD/UVD/ELSD/RID/FLD

System Qualitative Repeatability(Retention Time):

RSD≤0.3%

System Quantitative Repeatability(Area):

RSD≤0.6%

Flow Rate Range:

0.0001-10.000mL/min( Increments :0.0001 ML/min)

Max Operating Pressure:

42MPa

Highlight:

DAD Detector HPLC Instrument

DAD Detector Liquid Chromatography Instrument

Aflotoxin Testing HPLC Instrument

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Wooden Case

Delivery Time

30 days

Payment Terms

L/C, T/T

Supply Ability

30 Pieces Per Month

LC3400 75MPa Ultra Fast HPLC System High Performance Liquid Chromatography Machine With 108 Injection Bits

Get Best Price

LC3400 75MPa Chromatography Machine Hplc Liquid Chromatography Instrument System

Get Best Price

LC3400 Flow To Needle High Performance Liquid Hplc Chromatography Instrument 220V

Get Best Price

LC3400 62MPa Hplc High Performance Liquid Chromatography Instrument

Get Best Price

+8613586823203

export@wayeal.com.cn

Contact Now

Product Description

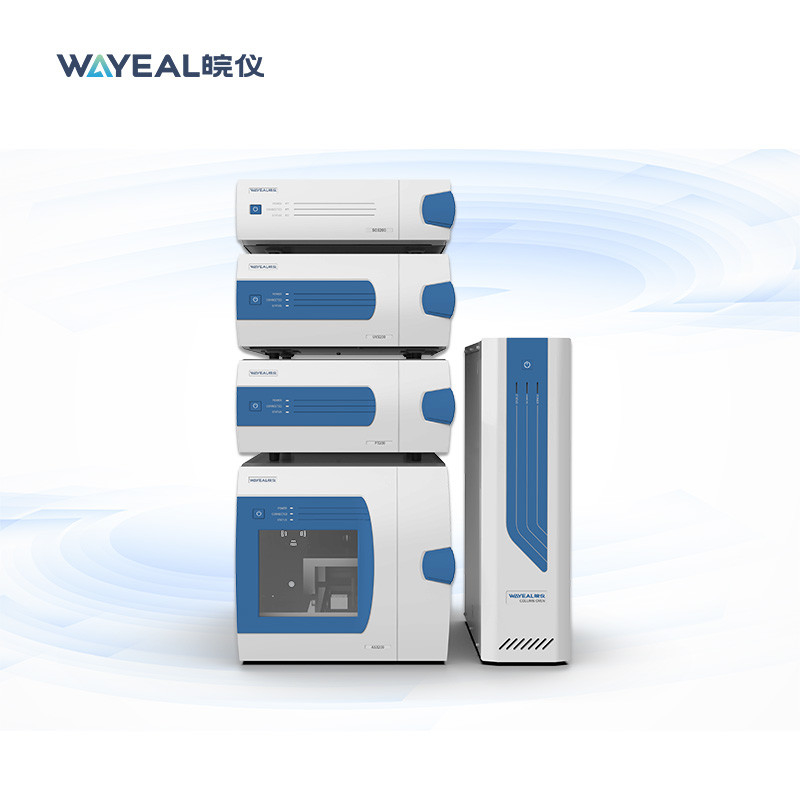

High Performance Liquid Chromatography with DAD Detector HPLC Instrument for Aflotoxin Testing

Description of High Performance Liquid Chromatography Instrument

High-performance liquid chromatography (HPLC) is an analytical technique to separate, identify, and quantify components in a mixture. Separation using High Performance Liquid Chromatography is based on the affinity of the different compounds within the analyte to the mobile phase (eluent) and the stationary phase. The specific intermolecular interactions between the molecules of a component of the sample and the packing material result, in effect, in these molecules being taken up transitorily on to the stationary phase. HPLC is used in a variety of industrial and scientific applications, such as pharmaceutical, environmental, forensics and chemicals.

Technical Data of High Performance Liquid Chromatography Instrument

Manufacturer:	Wayeal
Product Name:	Liquid Chromatography Instrument
Working Power Supply	220V, 50Hz
Ambient Temperature	10~40°C
Relative Humidity	20~85%
Qualitative Repeatability	≤0.2%
Quantitative Repeatability	≤0.4%
High Pressure Constant Flow Pump
Flow Rate Range	0.001~10.000mL/min
Setting Step	0.001mL/min
Pressure Range	0~42MPa
Pressure Pulsation	0.1MPa
Flow Rate Set Error	±0.2%
Flow Rate Stability	RSD≤0.06%
Gradient Error	±1%
Column Oven
Temperature Control Range	4~85°C
Temperature Stability	±0.02°C
Temperature Setting Resolution	0.1°C
Autosampler
Injection Volume Repeatability	＜0.5%RSD
Linearity	＞0.9999
Cross Contamination	＜0.002%
Injection Volume Accuracy Error	±1%
Sample Positions	120
Injection Volume	1~100μL
UV Detector
Baseline Noise	≤2.0*10^-6Au
Baseline Drift	≤1*10^-5Au/h
Mini Detection Concentration	≤3.0*10^-9g/mL (naphthalene/methanol)
Spectral Range	188~900nm
Wavelength Error	≤±0.1nm
Wavelength Repeatability	≤±0.1nm
Linearity Range	≥10³
DA Detector
Baseline Noise	≤4*10^-5Au
Baseline Drift	≤3*10^-5Au/h
Mini Detection Concentration	≤2*10^-8g/mL
Spectral Range	190~800nm
Wavelength Error	≤±0.1nm
Wavelength Repeatability	≤±0.1nm
Linearity Range	≥ 10⁴
ELS Detector
Baseline Noise	≤ 0.0037mV
Baseline Drift	≤ 0.0026mV/30min
Evaporation Gas Flow Range	(0 ~ 3) SLM
Atomization Temperature Range	Room temperature ~ 90℃
Evaporation Temperature Range	Room temperature～110℃
Detection Chamber Temperature Range	Room temperature～60℃
Input Air Pressure	(4 ~ 7) bar
FL Detector
Baseline Noise	≤ 5×10^-6 FU
Baseline Drift	≤ 2 × 10^-5FU/30min
Spectral Range	(200 ~ 650) nm
Wavelength Error	± 0.1 nm
Linearity Range	≥ 10⁴
RI Detector
Detection Range	0.25 ~ 512 μRIU
Linearity Range	≥ 600 μRIU
Response Time	0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec;
Cell Volume	8μL

Applications of High Performance Liquid Chromatography Instrument

Food, medicine, environment, agriculture and scientific research
