Analytical DAD Detector HPLC Instrument For Aflotoxin Testing

  • Analytical DAD Detector HPLC Instrument For Aflotoxin Testing
Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number LC3100
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 30 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HPLC Instrument For Aflotoxin Testing Detector DAD Detector
System Qualitative Repeatability(Retention Time) RSD≤0.3% System Quantitative Repeatability(Area) RSD≤0.6%
Flow Rate Range 0.0001-10.000mL/min( Increments :0.0001 ML/min) Max Operating Pressure 42MPa
High Light

DAD Detector HPLC Instrument

,

DAD Detector Liquid Chromatography Instrument

,

Aflotoxin Testing HPLC Instrument
Leave a Message
Product Description

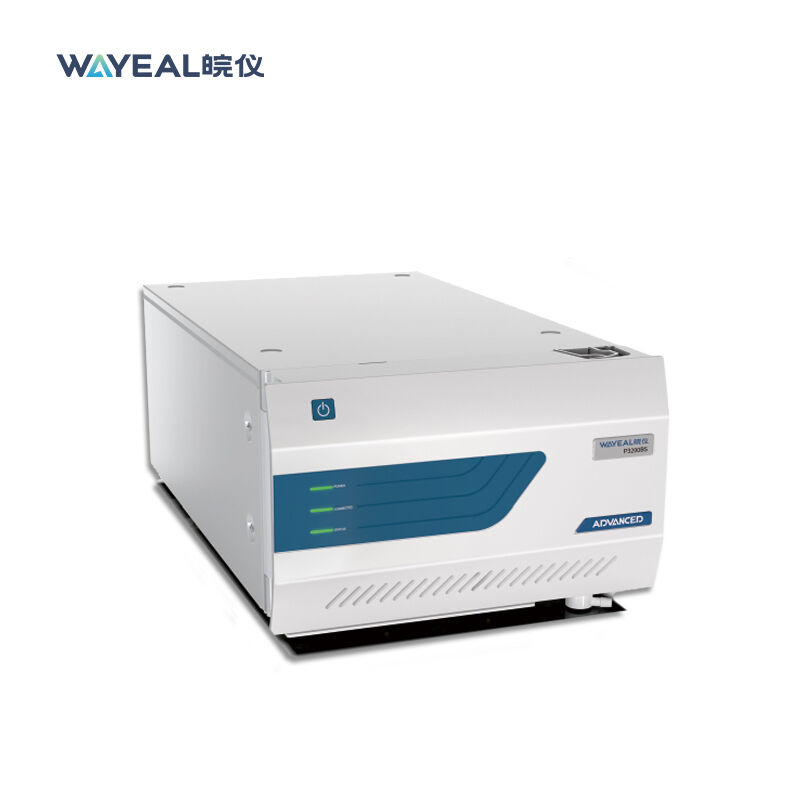

High Performance Liquid Chromatography with DAD Detector HPLC Instrument for Aflotoxin Testing

Product Description



High-performance liquid chromatography (HPLC) is an analytical technique to separate, identify, and quantify components in a mixture. Separation using High Performance Liquid Chromatography is based on the affinity of the different compounds within the analyte to the mobile phase (eluent) and the stationary phase. The specific intermolecular interactions between the molecules of a component of the sample and the packing material result, in effect, in these molecules being taken up transitorily on to the stationary phase. HPLC is used in a variety of industrial and scientific applications, such as pharmaceutical, environmental, forensics and chemicals.



Product Parameter



High Performance Liquid Chromatography with DAD Detector HPLC Instrument for Aflotoxin Testing

Physical Specifications


Power Requirements 220V,50HZ
Ambient Temperature 4-40℃
Ambient Humidity 20-85% relative humidity(non-condensing)

System features


Qualitative Repeatability(Retention time) RSD≤0.3%
Quantitative Repeatability(Area) RSD≤0.6%
Pump
Flow Rate Range 0.0001-10.000mL/min( increments :0.0001 mL/min)
Max Operating Pressure 42MPa
Pressure Pulsation <0.1MPa( Test condition: 10MPa , at 1.0ml/min methanol)
Flow Accuracy ±0.2%( Test condition: 10MPa , at 1.0ml/min methanol)
Flow Precision RSD≤0.06%( Test condition: 10MPa , at 1.0ml/min methanol)
Gradient Accuracy ±1%
Column Oven
Temperature Setting Range 5 °C ~ 85 °C.
Temperature Stability ≤0.2°C/h
Temperature Controlling Precision ±0.1 °C
Autosampler
Injection Volume Precision

<0.25%RSD( full loop) ;

<0.5%RSD( partial loop) ;

<1%RSD( no waste)
Linearity >0.999
Cross Contamination(Carry Over) <0.01%
Sample Capacity 120 Vials
Syringe 250 μL( Standard, with 500μL,1000μL, 2500μL optionals
Sample Loop 20μL( Standard, with 50μL, 100μL, 200μL optional)

DAD Detector


Noise 1.5×10-5Au
Drift ≤1×10-3Au/h
LOD 5.0×10-9g/mL (naphthalene/methanol)
Wavelength Range 190-800nm
Wavelength Accuracy ≤±1 nm
Wavelength Reproducibility ≤±0.1 nm
Linearity ≥1.0×104



Product Performance


  • Water purification
  • Detection of impurities in pharmaceutical industries
  • Pre-concentration of trace components
  • Ligand-exchange chromatography
  • High-pH anion-exchange chromatography of carbohydrates and oligosaccharides





Product Application


Food, medicine, environment, agriculture and scientific research


Analytical DAD Detector HPLC Instrument For Aflotoxin Testing 0


Analytical DAD Detector HPLC Instrument For Aflotoxin Testing 1



Analytical DAD Detector HPLC Instrument For Aflotoxin Testing 2



Analytical DAD Detector HPLC Instrument For Aflotoxin Testing 3
