Quaternary Pump High Performance Liquid Chromatography System With UV Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number LC3200
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 30 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Quaternary Pump HPLC Chromatography Detector UV Detector
Wavelength Length 188 - 900 Nm Lamp Tungsten Lamp
Linearity 2.5AU Drift 1.0 × 10-4 AU/h
High Light

Quaternary Pump Liquid Chromatography System

,

Tungsten Lamp Liquid Chromatography System

,

Wayeal HPLC System

Leave a Message
Product Description

Quaternary Pump HPLC Cromatografía with UV Detector High Performance Liquid Chromatography System

Product Description



High Performance Liquid Chromatography (HPLC) is a form of column chromatography that pumps a sample mixture or analyte in a solvent (known as the mobile phase) at high pressure through a column with chromatographic packing material (stationary phase). HPLC has the ability to separate, and identify compounds that are present in any sample that can be dissolved in a liquid in trace concentrations as low as parts per trillion.



Product Parameter



Quaternary Pump HPLC Cromatografía with UV Detector High Performance Liquid Chromatography System
Pump
Gradient Quadratic Low Pressure
Flow Rate Range 0-11.0000mL/min
Min Injection Unit 0.0001mL/min
Flow Rate Error ±0.2%
Flow Rate Repeatability ≤ 0.08% RSD
Gradient Stability < 0.5% RSD
Max Operating Pressure 42MPa
In-line Degassing
Column Oven
Temperature Range 4 ℃ ~ 85 ℃
Temperature Stability ≤±0.02 ℃
Autosampler
Sampling Volume 0.1-20.0uL (in 0.1μL increments)
Sample Capacity 120 vials, 2ml vial
Linearity r > 0.9999
Cross-contamination < 0.002%
Sampling Error ±0.2μL (sampling volume 10μL)
Sampling Repeatability < 0.3% RSD
Injection Speed 15s
UV Detector
Wavelength Range 188 - 900 nm
Wavelength Error ≤ ±0.5 nm
Wavelength Repeatability ≤ ±0.1 nm
Baseline Noise 0.8 × 10-5 AU
Drift 1.0 × 10-4 AU/h
Linearity 2.5 AU



Product Performance

1. Two optional modes: binary high pressure and quaternary low pressure. The binary high pressure mode is equipped with a solvent selector valve, which can be extended from binary to quaternary system, greatly improving the flexibility of system configuration.



2. Wavelength scaning: the absorption spectrum can be scanned in the entire range of the light source.



3. A variety of detectors available, such as DAD, ELSD and FLD.



4. Dual-wavelength detection, two wavelengths canbe detected at the same time.





Product Application


Food, medicine, environment, agriculture and scientific research

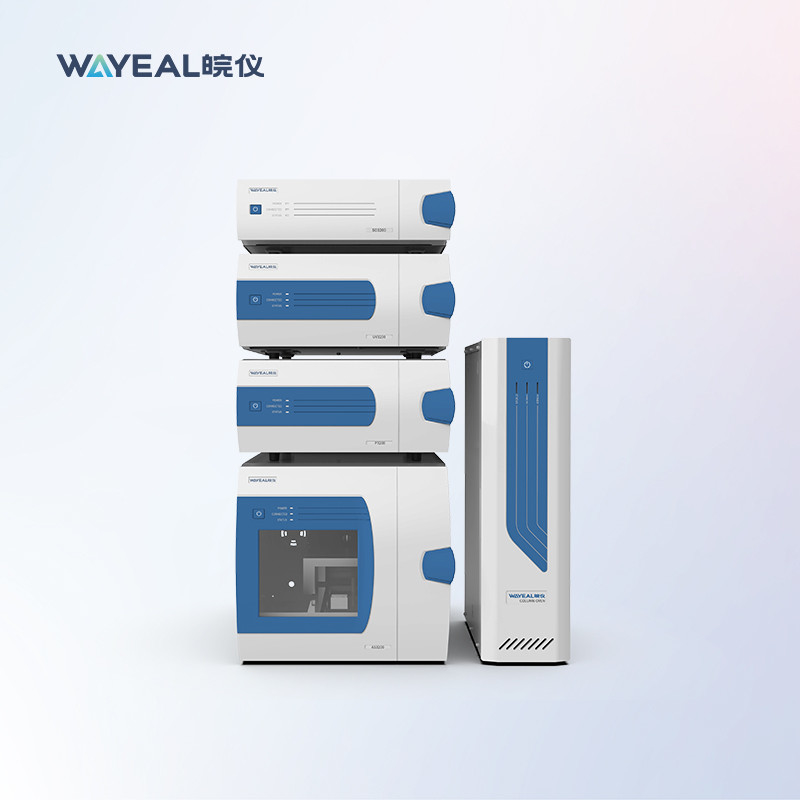

Quaternary Pump High Performance Liquid Chromatography System With UV Detector 0

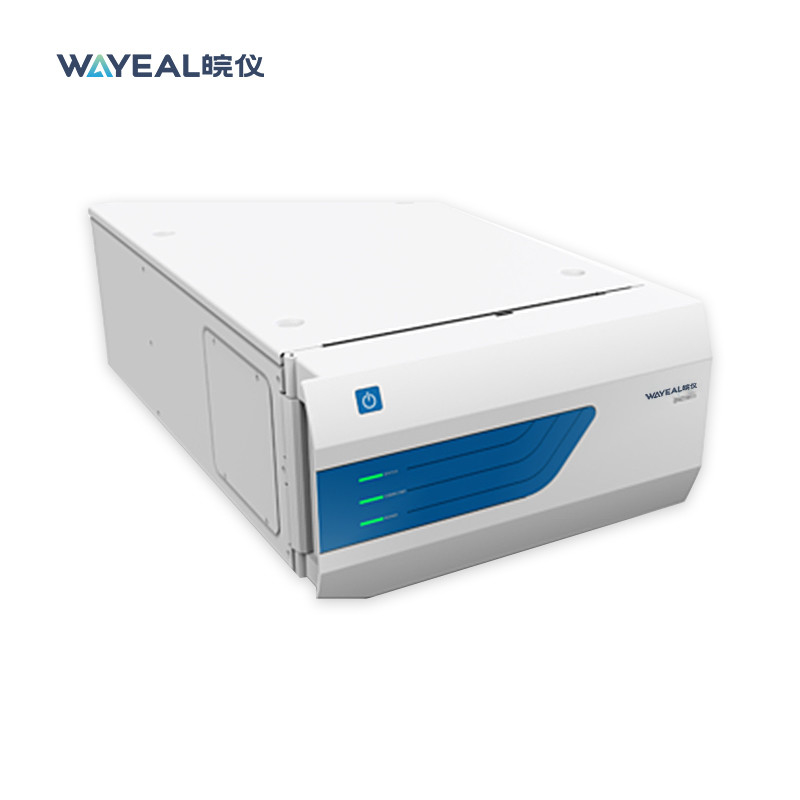

Quaternary Pump High Performance Liquid Chromatography System With UV Detector 1

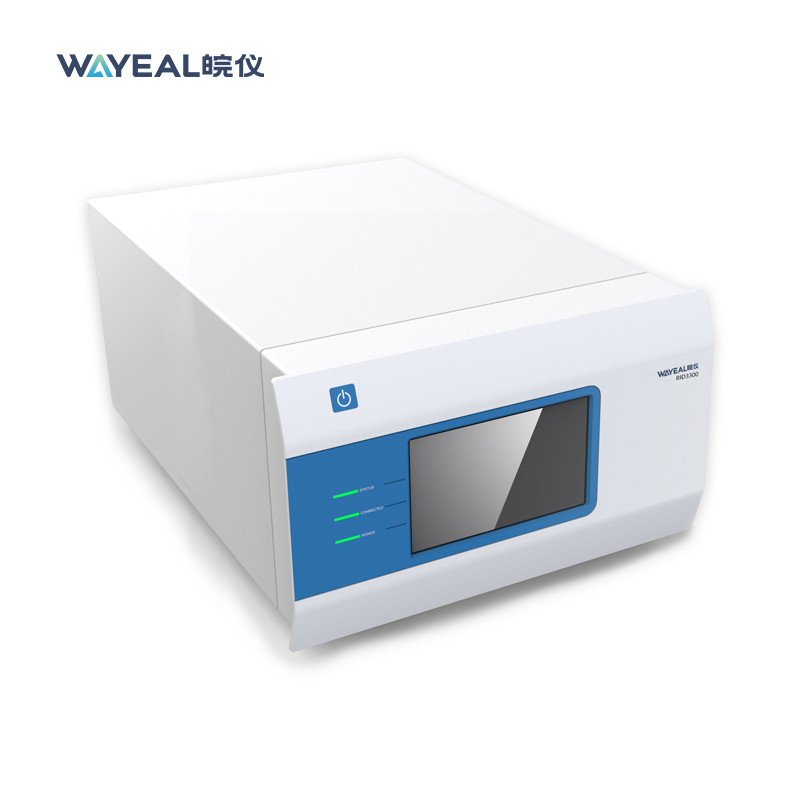

Quaternary Pump High Performance Liquid Chromatography System With UV Detector 2

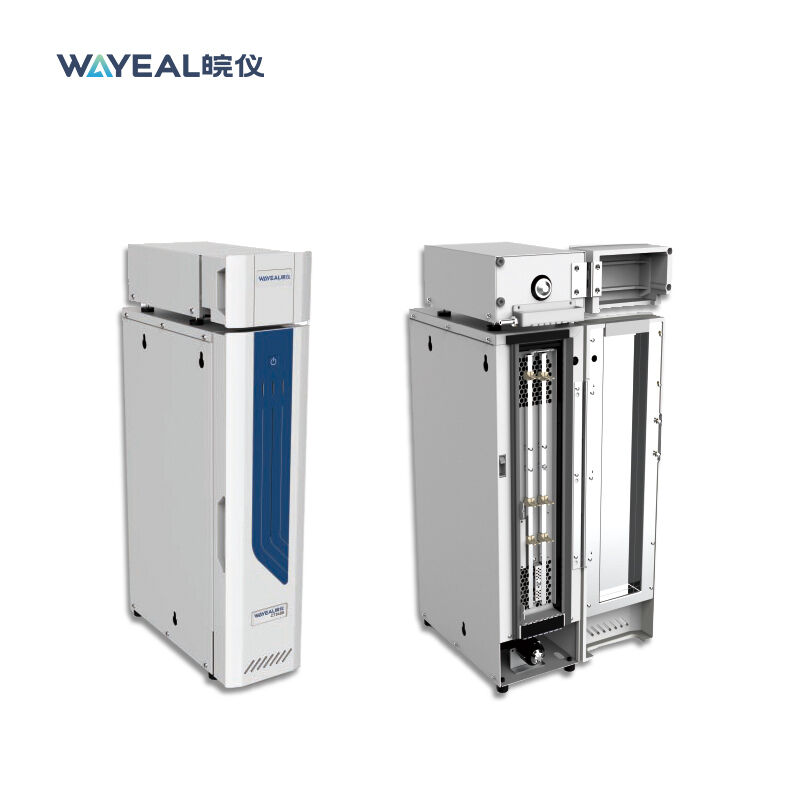

Quaternary Pump High Performance Liquid Chromatography System With UV Detector 3
