Modular Design HPLC Liquid Chromatography Instrument 220V 50HZ 42MPa

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number LC3100
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 30 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HPLC Chromatografia Detector DAD Detector
Column Temperature Range 5 °C ~ 85 °C Syringe 250 μL( Standard, With 500μL,1000μL, 2500μL Optionals)
Sample Loop 20μL( Standard, With 50μL, 100μL, 200μL Optional) Noise 1.5×10-5Au
High Light

Modular Liquid Chromatography Instrument

,

Hplc Liquid Chromatography 42MPa

,

220V 50HZ Liquid Chromatography Instrument

Leave a Message
Product Description

220V 50HZ 42MPa Modular Design HPLC Chromatografia High Efficiency Liquid Chromatography Instrument

Product Description



High-performance liquid chromatography (HPLC) is a form of liquid chromatography to separate compounds that are dissolved in solution. HPLC instruments consist of a reservoir of mobile phase, a pump, an injector, a separation column, and a detector. Compounds are separated by injecting a plug of the sample mixture onto the column.The different components in the mixture pass through the column at different rates due to differences in their partitioning behavior between the mobile liquid phase and the stationary phase.



Product Parameter

e

220V 50HZ 42MPa Modular Design HPLC Chromatografia High Efficiency Liquid Chromatography Instrument
Physical Specification
Power Requirements 220V,50HZ
Ambient Temperature 4-40℃
Ambient Humidity 20-85% relative humidity(non-condensing)
System
Qualitative repeatability(Retention time) RSD≤0.3%
Quantitative repeatability(Area) RSD≤0.6%
Pump
Flow Rate Range 0.0001-10.000mL/min( increments :0.0001 mL/min)
Max Operating Pressure 42MPa
Pressure Pulsation <0.1MPa( Test condition: 10MPa , at 1.0ml/min methanol)
Flow Accuracy ±0.2%( Test condition: 10MPa , at 1.0ml/min methanol)
Flow Precision RSD≤0.06%( Test condition: 10MPa , at 1.0ml/min methanol)
Gradient Accuracy ±1%
Column Oven
Temperature Setting Range 5 °C ~ 85 °C
Temperature Stability ≤0.2°C/h
Temperature Controlling Precision ±0.1 °C
Autosampler
Injection Volume Precision

<0.25%RSD( full loop) ;

<0.5%RSD( partial loop) ;

<1%RSD( no waste)

Linearity >0.999
Cross Contamination(Carry Over) <0.01%
Sample Capacity 120 Samples( 1.5ml vials)
Syringe 250 μL( Standard, with 500μL,1000μL, 2500μL optionals)
Sample Loop 20μL( Standard, with 50μL, 100μL, 200μL optional)

DAD Detector


Noise 1.5×10-5Au
Drift ≤1×10-3Au/h
LOD 5.0×10-9g/mL (naphthalene/methanol)
Wavelength Range 190-800nm
Wavelength Reproducibility ≤±0.1 nm
Linearity ≥1.0×104



Product Performance

1. Two optional modes: binary high pressure and quaternary low pressure



2. The column oven of standard configuration has refrigeration function, which expands the application range of the system.



3. Provide two-way "250mm column+protection column" installation position, to meet the majority of user needs.



4. High precision reflector lens, 1800 lines of shinning grating, to ensure extremely low stray light and a large linear range.





Product Application

Food, medicine, chemical industry, agriculture, etc.

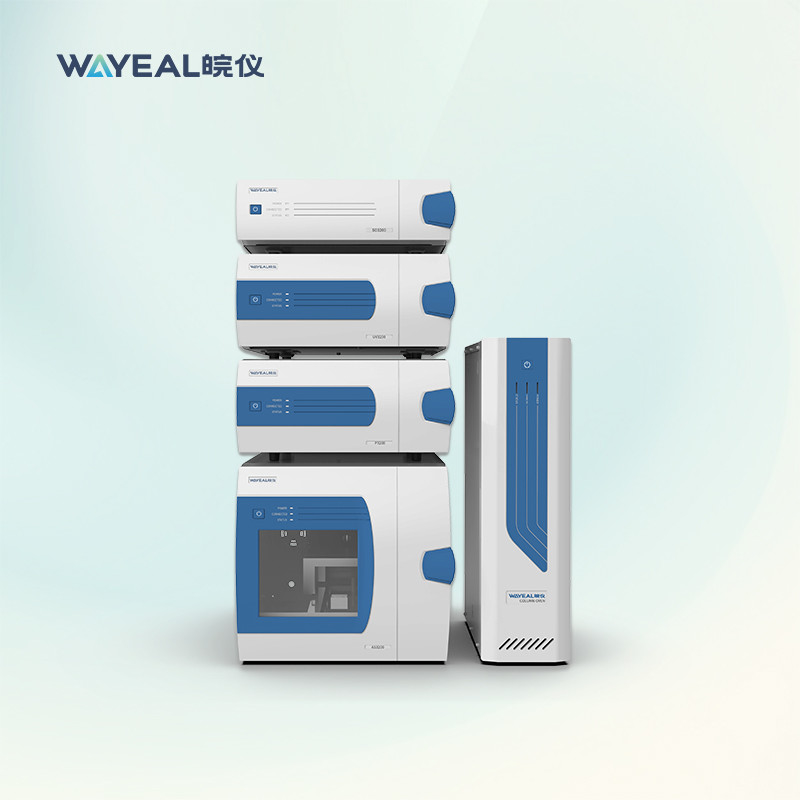

Modular Design HPLC Liquid Chromatography Instrument 220V 50HZ 42MPa 0

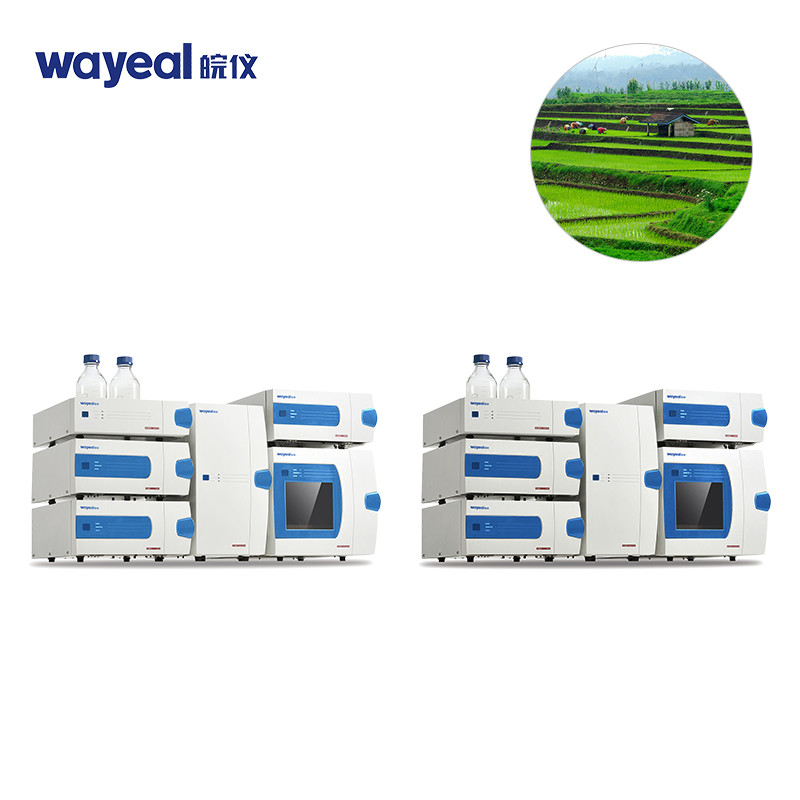

Modular Design HPLC Liquid Chromatography Instrument 220V 50HZ 42MPa 1

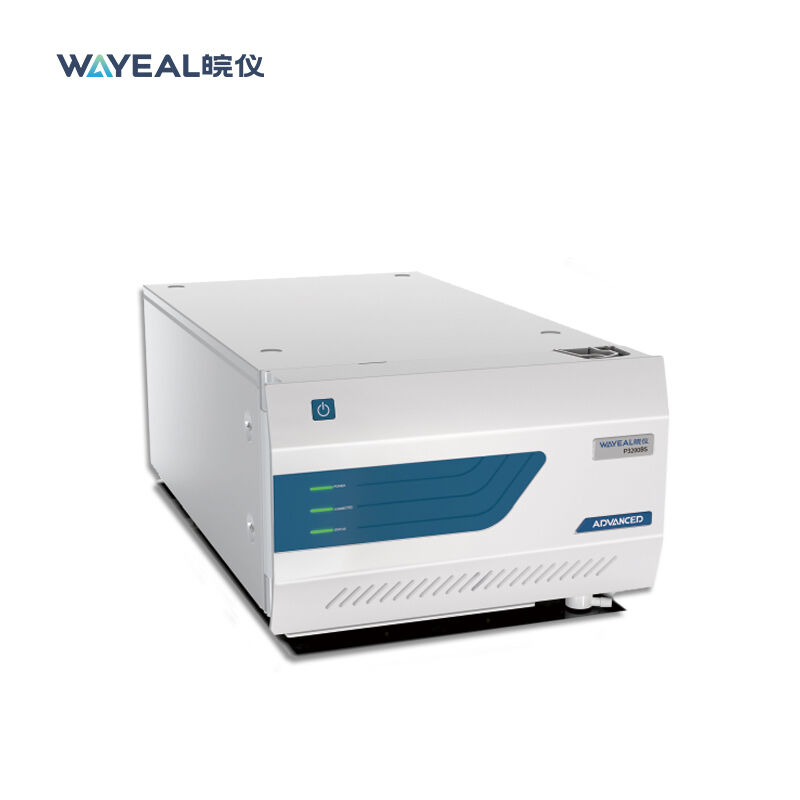

Modular Design HPLC Liquid Chromatography Instrument 220V 50HZ 42MPa 2

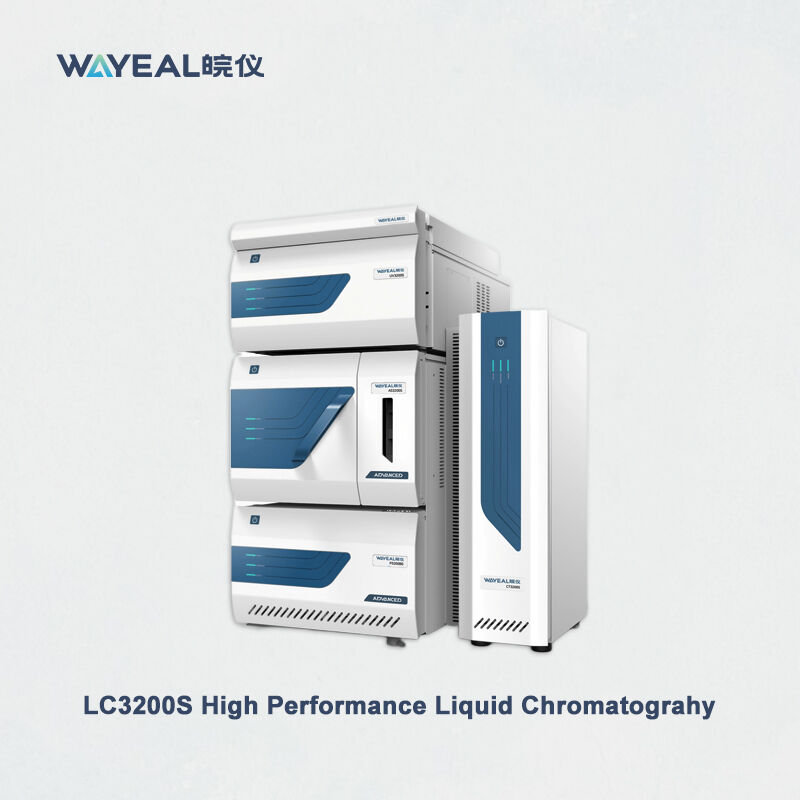

Modular Design HPLC Liquid Chromatography Instrument 220V 50HZ 42MPa 3
