Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
LC104

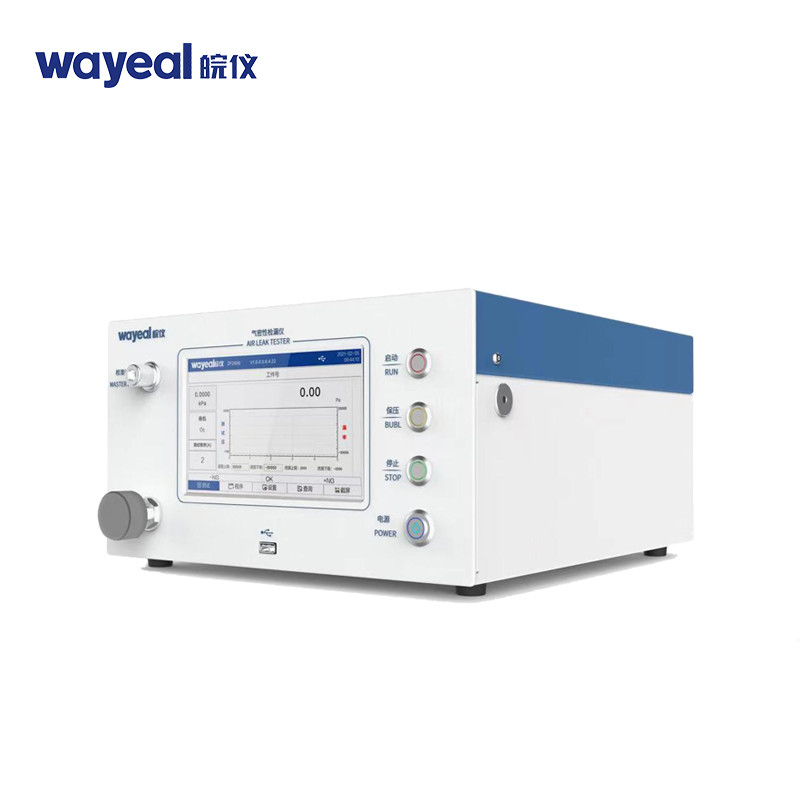

Wayeal Air Tightness Leak Tester Pressure Leak Detector for Medical Industry
Product Description of Air Tightness Leak Detector
The air tightness direct pressure leak detector detects the pressure drop per unit time of the equipment by means of a high precision pressure sensor. The system is simple in structure, highly reliable and inexpensive to maintain. Convenient for long time pressure monitoring and leak detection of large volumes.
Product Parameter of Air Tightness Leak Detector
|
Air Tightness Direct Pressure Leak Detector |
||||
|
Standard |
ZH2400 |
Customized |
50KPa~2400KPa(optional) |
|
|
Standard-(four-channel) |
ZH600-X |
Customized |
10KPa~500KPa(optional) |
|
|
Direct pressure sensor |
Sensor error |
±0.1%F.S. |
||
|
Display precision |
The value can be set to 0 to 4 decimal places |
|||
|
Display unit |
Test pressure |
Pa, kPa, kg/cm2, psi, mbar, bar, Torr, mmH2O, mmHg,MPa |
||
|
Leakage |
Pa,kPa,Pa/s,kPa/s,kPa/min,mL/s,mL/min,mL/h,L/min,L/h,SCCM |
|||
|
Parameter program number |
64 groups (1~64), Switchable via I/O or communication. |
|||
|
Test beat setting |
0 ~ 3600 seconds |
|||
|
Power supply |
AC 220V±10%,50Hz |
|||
|
Test pressure source |
Clean, dry, adequate flow, not less than 500KPa and 100KPa above the test pressure source |
|||
|
Diamension |
Standard |
321mm×440mm×206mm |
||
|
Standard(four-channel) |
431*460*208mm |
|||
|
Weight |
Standard |
15kg |
||
|
Standard(four-channel) |
20kg |
|||
Product Performance of Air Tightness Leak Detector
1. High precision components, efficient and stable, high detection accuracy
2. Integrated structure, small size and light weight
3. High resolution full colour touch screen, friendly human-machine interface, easy to learn and use
4. EMC testing, strong anti-interference capability, to ensure the safety and reliability of the whole machine
5. Multi-interface control: multiple interfaces for PC, PLC, USB stick, scanner, printer, etc.
6. Large storage capacity: 10,000 groups of records, searchable by date, job number and workpiece number
Industry Application
Automobile, new energy, electronics, medical, food
