Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE

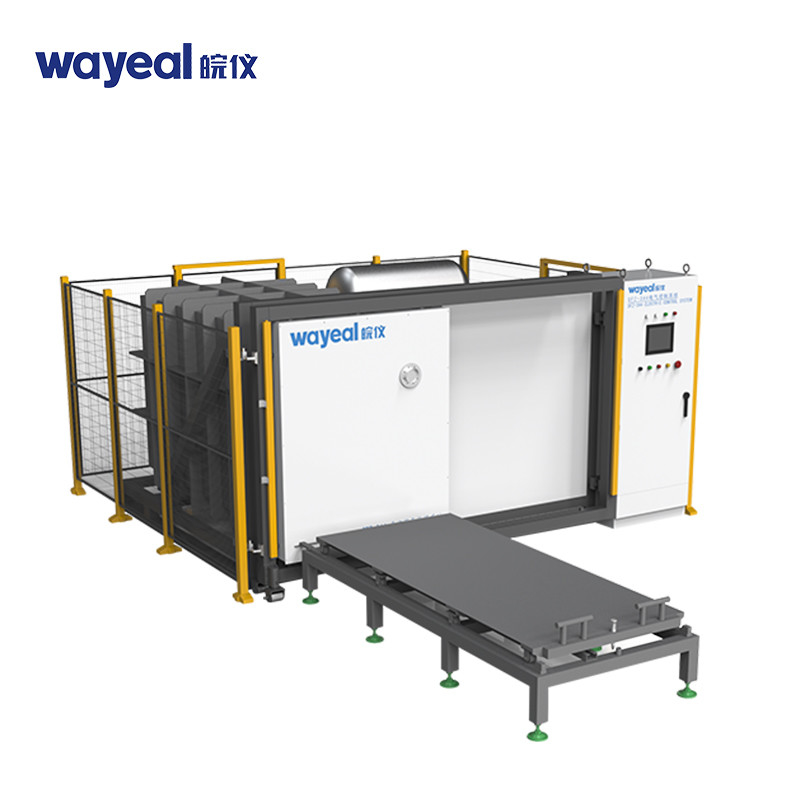

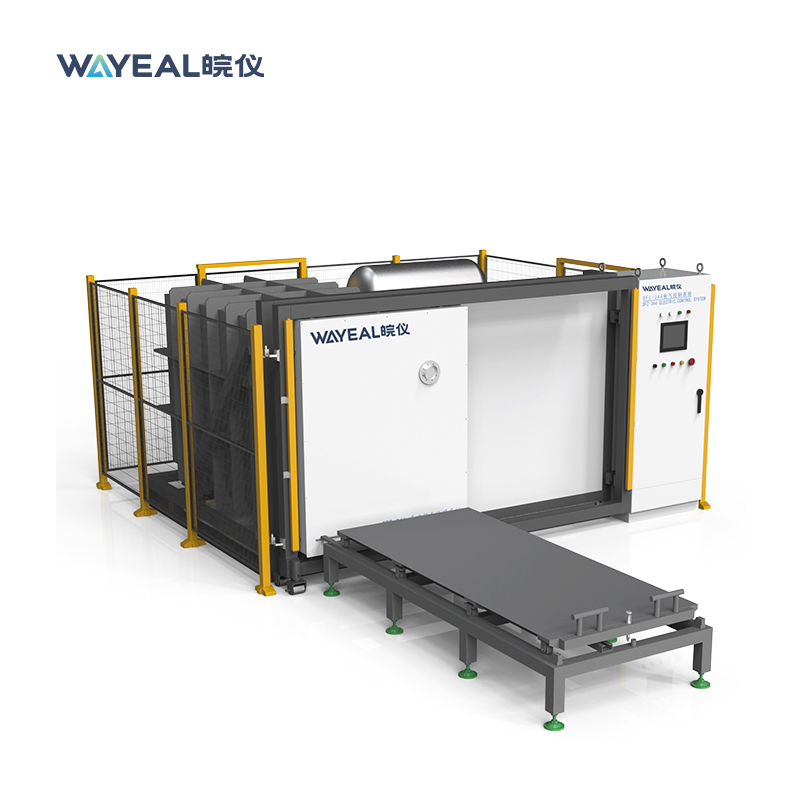

Customized Helium Leak Tester Vacuum Leak Detection System for New energy
Product Introduction
The customized vacuum chamber leak detection system is suitable for leakage detection of high-voltage switchgears. It can be equipped with a material handling system to realize automatic in-and-out chamber, and reduce labor intensity.
Product Parameter
| Power Industry High Voltage Switch Gear Vacuum Chamber Leak Detection System | |
| Number of vacuum chammbers | 1~6 |
| Number of test pieces per chammber | 1~6 |
| Vacuum chamber volume | 0.1-10000L, Accept Customized |
| Testing pressure | ≤35Mpa |
| Detector leakge rate | 1*10-4-1*10-9 Pa.m3/s |
| ecycling efficiency | ≤98% |
| Vacuum chammber evacuation pressure | ≤30Pa |
Product Performance
1. The automatic in-and-out chamber function (optional) can be selected to connect the automatic line and realize full automatic detection;
2. The functions of vacuum dehumidification and hot nitrogen dehumidification (optional) can be selected to reduce the micro-water content in the workpiece;
3. The online micro-water detection function (optional) can detect the micro-water content of helium source in real time.
Product Application
Power switchgear, ring main unit, pole top switch, power castings
