Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number Customized System
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 25 days
Payment Terms L/C, T/T
Supply Ability 10 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ultimate Pressure 1000 Pa Shape Customized
Industry Application Whole-set Air Conditioners Number Of Test Pieces Per Chammber 1~6
Product Name Power Industry High Voltage Switch Gear Vacuum Chamber Leak Detection System Leak Detection Rate 1*10-4~1*10-9 Pa.m3/s
High Light

helium leak detection equipment

,

Switchgear helium leak detection equipment

,

Switchgearvacuum detector

Leave a Message
Product Description

Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances





Introduction of Vaccum Chamber Helium Leak Detection System

Condenser cores and evaporator cores are subject to dry leak detection. The equipment first uses nitrogen of a specified pressure to test the compressive strength of the inspected workpiece and check large leak for air tightness; then helium of a specified pressure will be filled; manual plugging and unplugging of joints and handling of the workpiece into and out of the vacuum chamber to conduct the helium leak test by the vacuum chamber method; finally the helium in the inspected workpiece will be recovered and recycled.

Parameters of Vaccum Chamber Helium Leak Detection Ssytem

Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances
Number of vacuum chammbers 1~6
Number of test pieces per chammber 1~6
Vacuum chamber volume 0.1-10000L, Accept Customized
Testing pressure ≤35Mpa
Detector leakge rate 1*10-4-1*10-9 Pa.m3/s
ecycling efficiency ≤98%
Vacuum chammber evacuation pressure ≤30Pa



Components of Vaccum Chamber Helium Leak Detection System

Helium-filled recovery section, vacuum chamber leak detection section, leak detector section, and electrical control system.



Features of Vaccum Chamber Helium Leak Detection System

1. The size of vacuum chamber can be customized according to the size of workpiece; the equipment size and layout can be customized according to the workshop;


2. There are multiple optional ways to open the vacuum chamber: drawer type, lifting type, bell jar type, etc., which can be customized;


3. High-end configuration, standardized design and production, and stable and reliable performance;


4. The multi-chamber linkage design can realize flexible production with a production rhythm as high as 20-60S/chamber;


5. Helium can be recovered and recycled with up to 98% recovery rate


6. The system has automatic helium cleaning function, which can quickly and efficiently clean the helium pollution caused by leaking workpieces;


7. The system integrates industrial IoT technology, and the detection process can realize intelligent production such as real-time storage, monitoring and diagnosis;


8. The helium purification system (optional) can be selected to further improve the utilization rate of helium and reduce the production and detection cost;


9. Customized upper computer software development services can be provided according to customers' manufacturing and production MES needs.

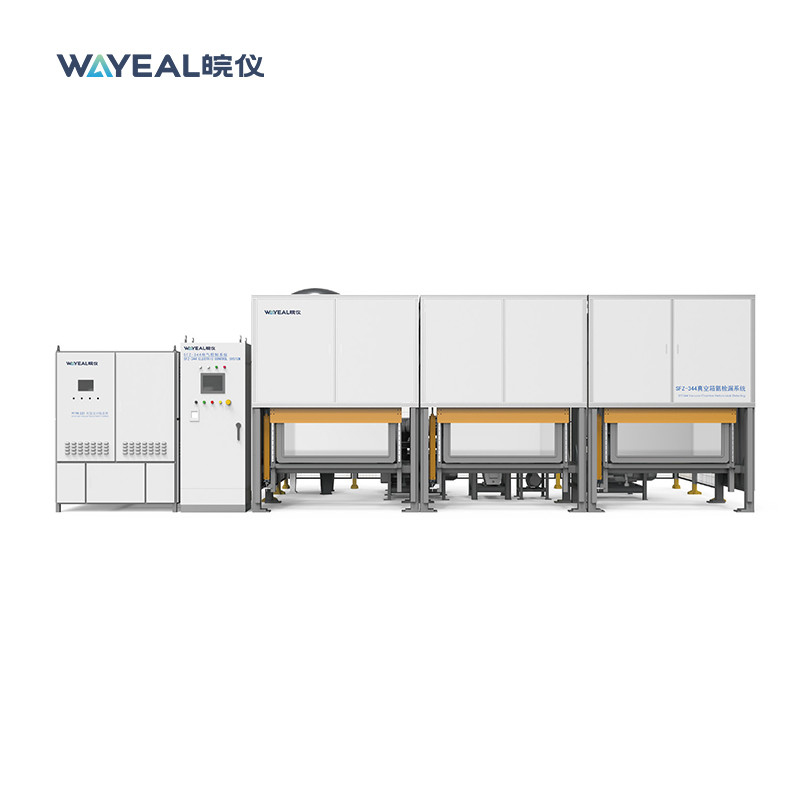

Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances 0

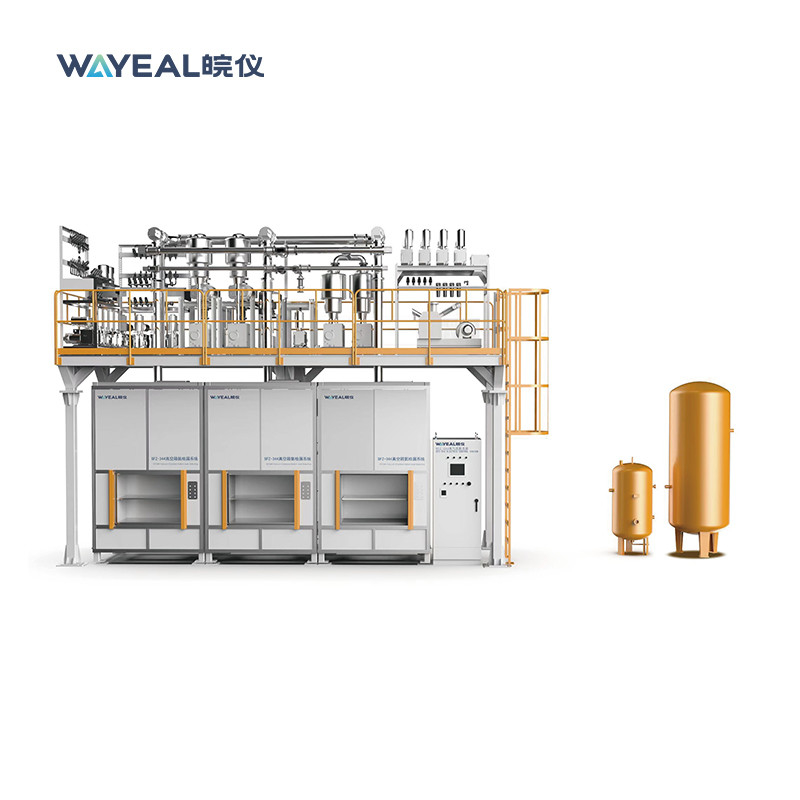

Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances 1

Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances 2Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances 3



Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances 4
