Vacuum Test Chamber Helium Gas Leak Detector System In Electricity Industry
| Ultimate pressure: | 1000 Pa | Shape: | Customized |
| Industry Application: | Power Switchgear | Number of test pieces per chammber: | 1~6 |
| Product Name: | Vacuum Chamber Helium Leak Detecting System Used In Electricity Industry | Customized Vacuum Leak Detection System Equipment for Vacuum Industry: | 600W |
| High Light: | Vacuum helium gas leak detector,Electricity helium gas leak detector,Vacuum helium leak test chamber |
||

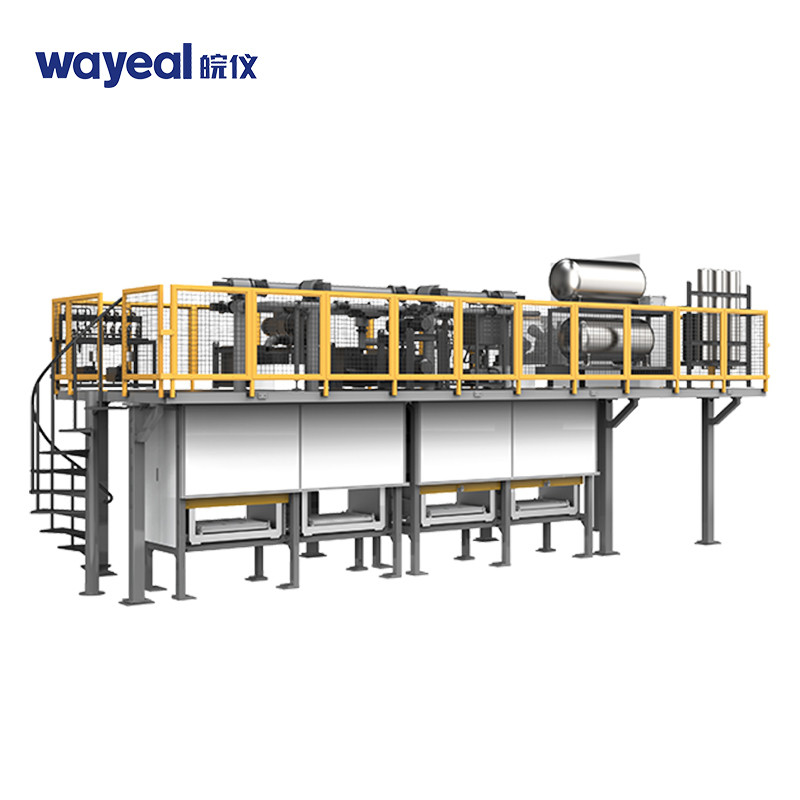

Vacuum Chamber Helium Leak Detecting System Used in Electricity Industry
System Introduction
The vacuum chamber leak detection system is suitable for leakage detection of expansion valves, stop valves, compressors, liquid storage tanks, outdoor units and heat exchangers of household air conditioners.
Technical Parameters of Vacuum Chamber Leak Detection System
| Vacuum Chamber Helium Leak Detecting System Used in Electricity Industry | |
| Number of vacuum chammbers | 1~6 |
| Number of test pieces per chammber | 1~6 |
| Vacuum chamber volume | 0.1-10000L, Accept Customized |
| Testing pressure | ≤35Mpa |
| Detector leakge rate | 1*10-4 - 1*10-9 Pa.m3/s |
| ecycling efficiency | ≤98% |
| Vacuum chammber evacuation pressure | ≤30Pa |
Product Performance
1. Accept customized vacuum chamber shapes and sizes according to the size of workpiece; the equipment size and layout can be customized according to the workshop;
2. There are multiple optional ways to open the vacuum chamber: drawer type, lifting type, bell jar type, tunnel type, etc., which can be customized;
3. High-end configuration, standardized design and production, and stable and reliable performance;
Application Industries
Power switchgear, ring main unit, pole top switch, power castings
