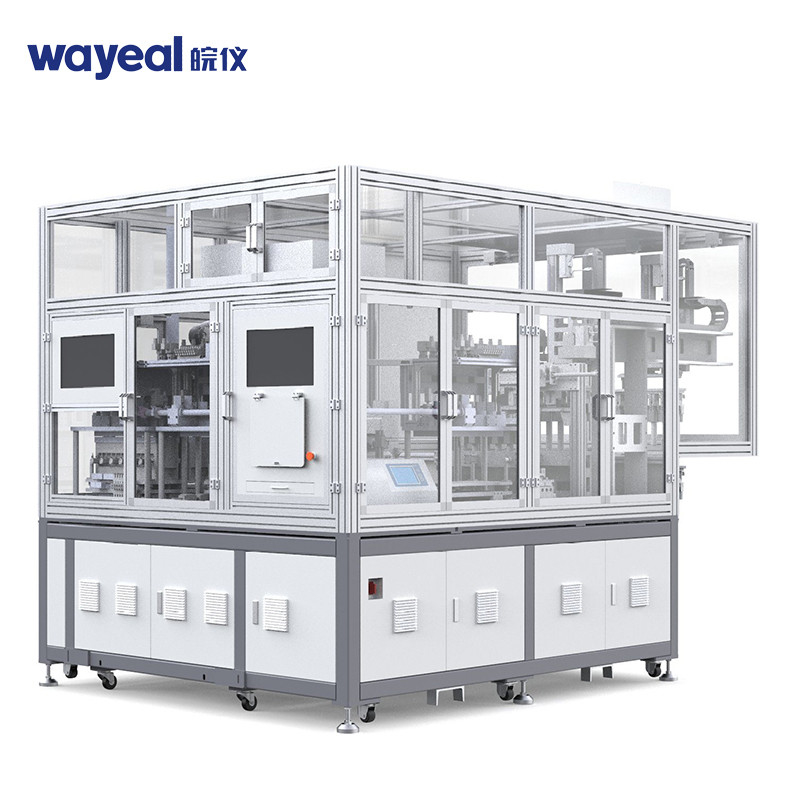

Automatic Vacuum Leak Detection System He Leak Detector 20KW 600W

  • Automatic Vacuum Leak Detection System He Leak Detector 20KW 600W
Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 25 days
Payment Terms L/C, T/T
Supply Ability 10 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Vacuum Leak Detection System Power Supply AC 220V, 50Hz/60Hz
Overkill Rate ≤1% Equipment Failure Rate ≤1%
Yield Rate ≥99.9% Customized Vacuum Leak Detection System Equipment For Vacuum Industry 20KW
High Light

600W Vacuum Leak Detection System

,

20KW Vacuum Leak Detection System

,

600W he leak detector
Leave a Message
Product Description

Automatic Leak Detection Chamber for Lithium Battery Vacuum Helium Leak Detection System



Product Introduction

The equipment is suitable for leakage detection of lithium battery cover plate and cell shell. It has high degree of automation, and can realize full-automatic unmanned production. The equipment can meet the requirements of manipulator's synchronous material loading and unloading, independent leak detection and recording of workpieces, automatic sorting and conveying of qualified products and unqualified products, which greatly reduces the mistakes caused by manual operation. Thanks to its high leak detection accuracy and low false detection rate, the equipment is a reliable guarantee for safe production of lithium batteries and safe driving of electric vehicles.

Product Parameter

Workpiece Metal bipolar plates, Membrane electrode
Product Size 4500*2000*2000mm
Power 20KW
Weight 3000KG
Leak detector opening detecting pressure ≤30pa
Workpiece Evacuation pressure ≤2000pa
Helium leak detector parameters Display ranges 1.0*10-3~10-13 Pa.m3/s
  Minimum detectable leakage rate 5*10-13 Pa.m/s
  Response Time <1S
Leak rate control setting Set up on the system according to your process requirements
Overkill Rate ≤1%
Leakage rate 0
Equipment failure rate ≤1%
Yield rate ≥99.9%
Leak detection tempo ≥3PPM
Motro Power 600 W
Ultimate pressure 1000 Pa


Product Application

Power switchgear, ring main unit, pole top switch, power castings



Automatic Vacuum Leak Detection System He Leak Detector 20KW 600W 0

Automatic Vacuum Leak Detection System He Leak Detector 20KW 600W 1

Automatic Vacuum Leak Detection System He Leak Detector 20KW 600W 2

Automatic Vacuum Leak Detection System He Leak Detector 20KW 600W 3

Automatic Vacuum Leak Detection System He Leak Detector 20KW 600W 4

Automatic Vacuum Leak Detection System He Leak Detector 20KW 600W 5
