Wayeal Vacuum Helium Leak Detection Equipment For Automotive Components Leak Detection
| Vacuum Charmber Quantity: | 1~6 | Vacuum chamber volume: | 0.1-10000L， Accept Customized |
| Size: | Customized | Number of test pieces per chammber: | 1~6 |
| Product Name: | Vacuum Leak Detection System | Customized: | OEM & ODM |
| High Light: | 10000L vacuum detector,Customized vacuum detector,10000L he detector |
||

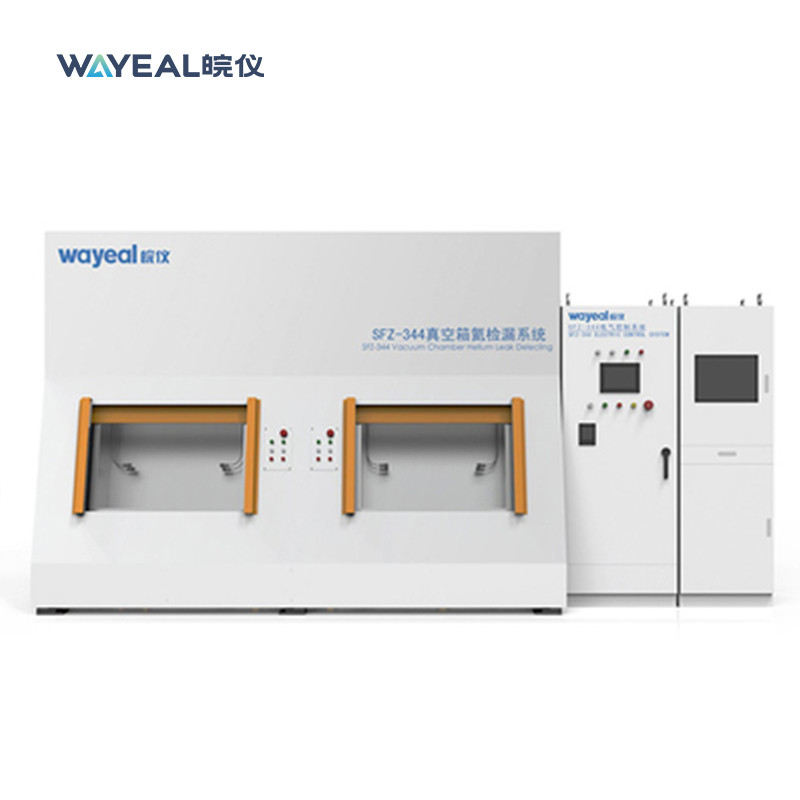

Wayeal Vacuum Helium Leak Detection Equipment For Automotive Components Leak Detection
Introductionv of Vaccum Helium Leak Detection Equipment
The vacuum leak detection system is suitable for leak detection of automobile air conditioner, expansion valve, wheel hub, oil cooler, oil tank and water tank. The helium recovery system can realize helium recycling, which can greatly reduce the use-cost. The remote monitoring function is optional.
Performance of Vaccun Helium Leak Detection Equipment
1.. The system has an automatic helium cleaning function, which can quickly and efficiently clean the helium pollution caused by leaking workpieces;
2. The automatic in-and-out chamber function (optional) can be selected to connect the automatic line and realize full automatic detection;
3. The functions of vacuum dehumidification and hot nitrogen dehumidification (optional) can be selected to reduce the micro-water content in the workpiece;
4. The online micro-water detection function (optional) can detect the micro-water content of helium source in real time;
5. The system integrates industrial IoT technology, and the detection process can realize intelligent production such as real-time storage, monitoring and diagnosis;
6. Customized upper computer software development services can be provided according to clients' manufacturing and MES requirements.
Parameters of Vaccum Helium Leak Detection Equipment
| Number of vacuum chammbers | 1~6 |
| Number of test pieces per chammber | 1~6 |
| Vacuum chamber volume | 0.1-10000L, Accept Customized |
| Testing pressure | ≤35Mpa |
| Detector leakge rate | 1*10-4 - 1*10-9 Pa.m3/s |
| ecycling efficiency | ≤98% |
| Vacuum chammber evacuation pressure | ≤30Pa |
