Wayeal Vacuum Helium Leak Detection Equipment For Automotive Components Leak Detection

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number Customized
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 10 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Vacuum Charmber Quantity 1~6 Vacuum Chamber Volume 0.1-10000L, Accept Customized
Size Customized Number Of Test Pieces Per Chammber 1~6
Product Name Vacuum Leak Detection System Customized OEM & ODM
High Light

10000L vacuum detector

,

Customized vacuum detector

,

10000L he detector

Leave a Message
Product Description

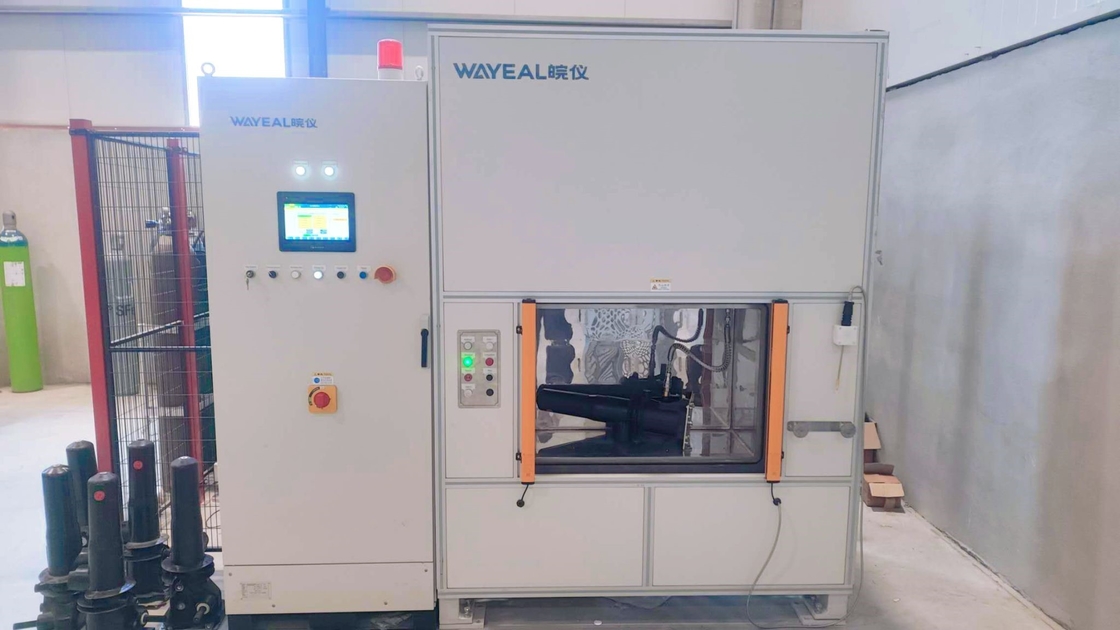

Wayeal Vacuum Helium Leak Detection Equipment For Automotive Components Leak Detection



Introductionv of Vaccum Helium Leak Detection Equipment

The vacuum leak detection system is suitable for leak detection of automobile air conditioner, expansion valve, wheel hub, oil cooler, oil tank and water tank. The helium recovery system can realize helium recycling, which can greatly reduce the use-cost. The remote monitoring function is optional.



Performance of Vaccun Helium Leak Detection Equipment

1.. The system has an automatic helium cleaning function, which can quickly and efficiently clean the helium pollution caused by leaking workpieces;
2. The automatic in-and-out chamber function (optional) can be selected to connect the automatic line and realize full automatic detection;
3. The functions of vacuum dehumidification and hot nitrogen dehumidification (optional) can be selected to reduce the micro-water content in the workpiece;
4. The online micro-water detection function (optional) can detect the micro-water content of helium source in real time;
5. The system integrates industrial IoT technology, and the detection process can realize intelligent production such as real-time storage, monitoring and diagnosis;
6. Customized upper computer software development services can be provided according to clients' manufacturing and MES requirements.



Parameters of Vaccum Helium Leak Detection Equipment

Number of vacuum chammbers 1~6
Number of test pieces per chammber 1~6
Vacuum chamber volume 0.1-10000L, Accept Customized
Testing pressure ≤35Mpa
Detector leakge rate 1*10-4-1*10-9 Pa.m3/s
ecycling efficiency ≤98%
Vacuum chammber evacuation pressure ≤30Pa
