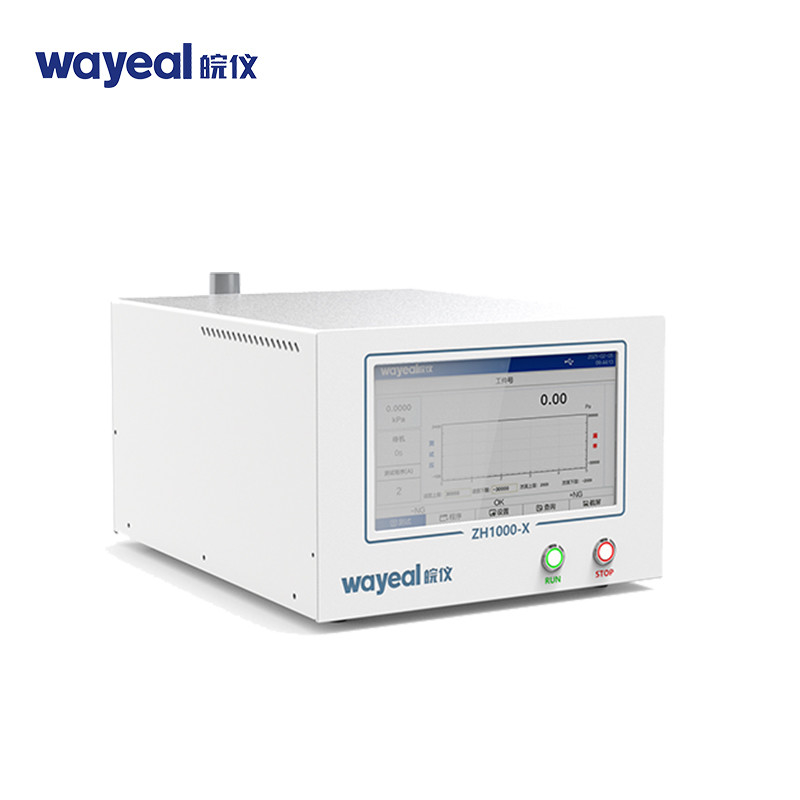

Air Tightness Pressure Helium Leak Test Machine Multi Channels 500KPa

  • Air Tightness Pressure Helium Leak Test Machine Multi Channels 500KPa
Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number ZH1000-X
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 8 days
Payment Terms L/C, T/T
Supply Ability 50 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Air Tightness Direct Pressure Leak Detector Size 460mm×328mm×222mm
Weight 14kg Mechanical Pressure Regulation 10kPa~1200kPa
Test Beat Setting 0 ~ 999 Seconds, Test Time 1800 Seconds Power AC 220V±10%， 50Hz
High Light

helium leak test machine 500KPa

,

500KPa helium leak test machine

,

500KPa leak test machine
Leave a Message
Product Description

Professional Multi Channels Air Tightness Pressure Leak Detector



Product Description



ZH500-X/ZH1000-X is our new generation of multi-function, multi-port and multi-channel pressure leak detection test instruments. This instrument can test four products at the same time in a synchronous or asynchronous way, which can be completed with one ZH500-X/ZH1000-X instrument at different stations.



Product Parameter

Air Tightness Direct Pressure Leak Detector
Direct pressure sensor Display precision The value can be set to 0 to 4 decimal places
Recommended test pressure range Recommended test pressure range ZH500 Mechanical pressure regulating 10KPa~500KPa
ZH1000 Mechanical pressure regulating 50KPa~1200KPa
ZH2400 Mechanical pressure regulating 50KPa~2400KPa(optional)
ZH600-X
(multi-station)		 Mechanical pressure regulating 10KPa~500KPa(optional)
Sensor error ±0.1%F.S.
Test pressure kPa, MPa, kg/cm2, psi, mbar, bar, Torr, mmH2O, mmHg
Leakage Pa,kPa,Pa/s,kPa/s,kPa/min,mL/s,mL/min,mL/h,L/min,L/h,SCCM
Parameter program number other 64 groups (1~64)
  ZH600-X(multi-station) 64 groups (A/B/C/D each channel can set 16 groups of parameters program)
Test beat setting 0 ~ 999 seconds, test time 1800 seconds
Power supply AC 220V±10%,50Hz
Test pressure source Clean, dry, adequate flow, not less than 500KPa and 100KPa above the test pressure source
Overall dimensions 460mm×328mm×222mm
Weight 14kg



Product Performance



One device integrates multiple test channels, which can realize multi-station simultaneous testing. Each station is independent of each other, which effectively improves the test efficiency.



Industry Application


Automobile, new energy, electronics, medical, food



Air Tightness Pressure Helium Leak Test Machine Multi Channels 500KPa 0

Air Tightness Pressure Helium Leak Test Machine Multi Channels 500KPa 1

Air Tightness Pressure Helium Leak Test Machine Multi Channels 500KPa 2

Air Tightness Pressure Helium Leak Test Machine Multi Channels 500KPa 3



Air Tightness Pressure Helium Leak Test Machine Multi Channels 500KPa 4





Air Tightness Pressure Helium Leak Test Machine Multi Channels 500KPa 5
