Vacuum Chamber Helium Leak Detector System for Corrugated Pipes Detection

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number Customized
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 50 days
Payment Terms L/C, T/T
Supply Ability 5 Pieces/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Vacuum Chamber Helium Leak Detection System Application Traditional Vacuum Industry
High Light

UV Visible Spectrometer Instrument

,

220nm UV Visible Spectrometer

,

220nm uv spectrophotometer instrument

Leave a Message
Product Description

Vacuum Helium Chamber Leak Detector System for Corrugated Pipes Detection





Introduction of Vacuum Chamber Helium Leak Detection System



They are used for dry leak detection of corrugated pipes. The system is controlled by PLC and is automated from the start of the leak test to the display of the test results. The vacuum chamber will be first vacuumized, then the inspected workpiece shall be subject to pressure maintaining and checking for major leaks; then the equipment shall be filled with helium; the vacuum chamber method will be applied to gas tightness testing of the helium mass spectrometer, with which the inspected workpiece will be determined to be qualified or unqualified; finally the helium in the inspected workpiece will be recovered and recycled.







Features of Vacuum Chamber Helium Leak Detection System



1. The size of vacuum chamber can be customized according to the size of workpiece; the equipment size and layout can be customized according to the workshop;


2. There are multiple optional ways to open the vacuum chamber: drawer type, lifting type, bell jar type, etc., which can be customized;


3. High-end configuration, standardized design and production, and stable and reliable performance;


4. The multi-chamber linkage design can realize flexible production with a production rhythm as high as 20-60S/chamber;


5. The helium can be recycled, with a recovery rate as high as 98%;


6. The system has automatic helium cleaning function, which can quickly and efficiently clean the helium pollution caused by leaking workpieces;


7. The system integrates industrial IoT technology, and the detection process can realize intelligent production such as real-time storage, monitoring and diagnosis;


8. The helium purification system (optional) can be selected to further improve the utilization rate of helium and reduce the production and detection cost;


9. Customized upper computer software development services can be provided according to customers' manufacturing and production MES needs.





Composition of Vacuum Chamber Helium Leak Detector



Helium-filled recovery section, vacuum chamber leak detection section, leak detector section, and electrical control system.





Application of Vacuum Chamber Helium Leak Detection System



Traditional vacuum industry - corrugated pipes

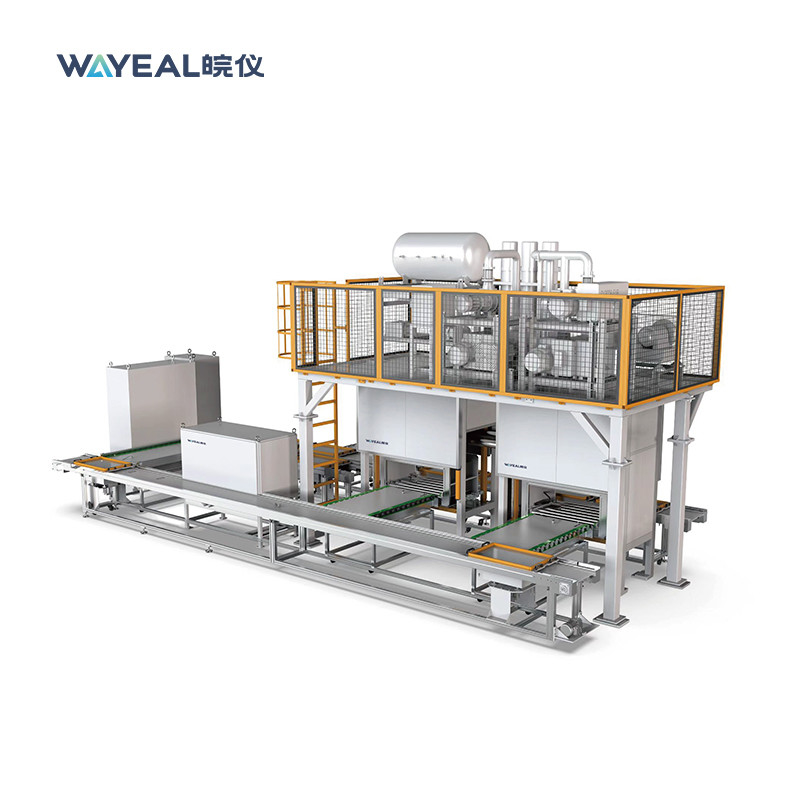

Vacuum Chamber Helium Leak Detector System for Corrugated Pipes Detection 0

Vacuum Chamber Helium Leak Detector System for Corrugated Pipes Detection 1Vacuum Chamber Helium Leak Detector System for Corrugated Pipes Detection 2



Vacuum Chamber Helium Leak Detector System for Corrugated Pipes Detection 3
