LCD Display Hplc Uhplc Chromatography Equipment For Lab Analysis
| Place of Origin | Anhui, China |
|---|---|
| Brand Name | Wayeal |
| Certification | ISO, CE |
| Model Number | LC3204 |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | One piece per wooden case |
| Delivery Time | 15 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Pieces Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hplc Liquid Chromatography Instrument | Ambient Temperature | 4-40℃ |
|---|---|---|---|
| Stationary Phase | Solid | Mobile Phase | Liquid |
| Flow Rate Range | 0.0001-10.000mL/min | Max Operating Pressure | 42MPa |
| High Light | uhplc chromatography Equipment,hplc uhplc chromatography,uhplc hplc Equipment |
||
Product Description

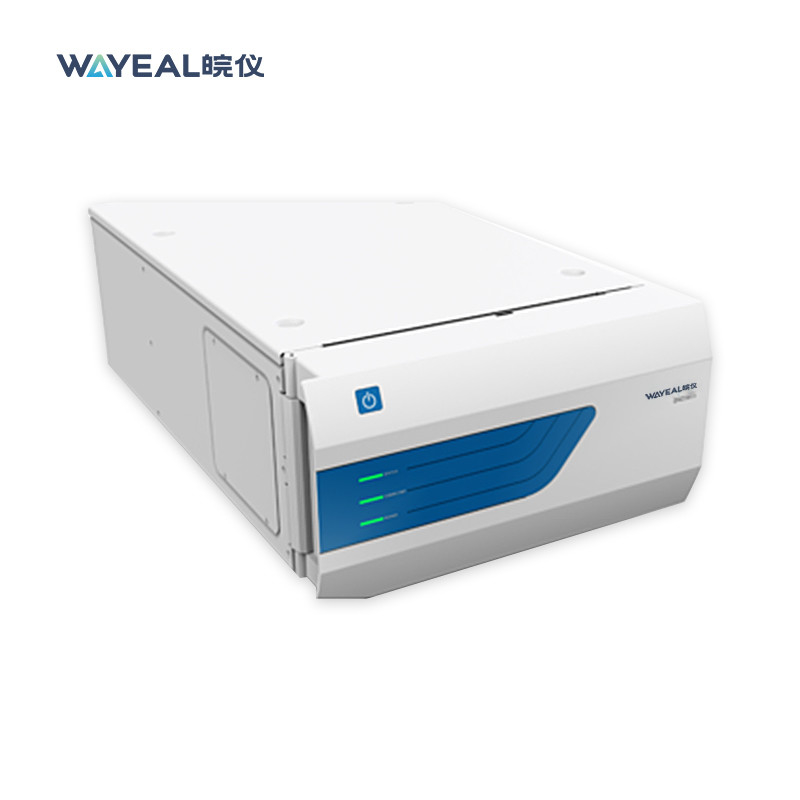

LCD Display High Performance Liquid Chromatography Instrument for Laboratory Analysis
Product Description
High performance liquid chromatograph instrument is consists of reservoir, pump, sample injector, chromatographic column, detector and recorder, which is an instrument based on the principle of high performance liquid chromatography. It is used to analyze less-volatile and thermal-unstable organic compounds with high boiling point and large molecular weight.
Product Parameters
| High Performance Liquid Chromatography Instrument | |
| Autosampler | |
| Injection Volume Precision | <0.25%RSD( full loop) ; <0.5%RSD( partial loop) ; <1%RSD( no waste) |
| Linearity | >0.999 |
| Cross Contamination(Carry Over) | <0.01% |
| Sample Capacity | 120 samples( 1.5ml vials) |
| Syringe | 250 μL( Standard, with 500μL,1000μL, 2500μL optionals) |
| Sample Loop | 20μL( Standard, with 50μL, 100μL, 200μL optional) |
| Optional sample chamber cooler | 4 °C ~ 30 °C(4 °C lowest) |
| Injection volume range | 1-100 μL |
| Column Oven | |
| Temperature setting range | 5 °C ~ 85 °C |
| Temperature stability | ≤0.2°C/h |
| Temperature controlling precision | ±0.1 °C |
Product Performance
1. Modular system designing.
2. Dual separated pump heads with specially designed integrated check valve.
3. Dynamic compression compensation technology ensure the flow accuracy and stability.
4. Active seal washing.
5. UV detector has wavelength scanning and dual wavelength detection functions.
6. The high-pressure pump adopts two-stage suspension transmission technology, combined with the suspension plug rod design of imported pump head, so as to prolong the service life of sealing ring and reduce the user's cost.
7. The proportional valve precisely controlled by the FPGA programmable logic ensure the accuracy of gradient proportion.
Product Application
Food, medicine, environment, agriculture and scientific research
