Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
LC3200
LCD Display High Performance Liquid Chromatography Instrument for Laboratory Analysis
Introduction of Liquid Chromatography Instrument

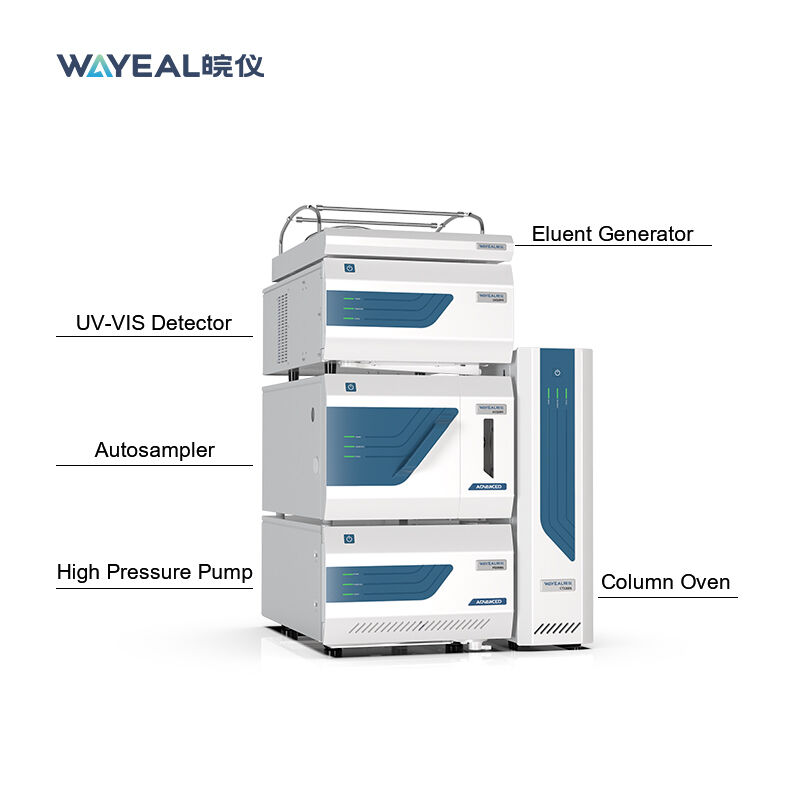

High performance liquid chromatography instrument is consists of reservoir, pump, sample injector, chromatographic column, detector and recorder, which is an instrument based on the principle of high performance liquid chromatography. It is used to analyze less-volatile and thermal-unstable organic compounds with high boiling point and large molecular weight.
Parameters of Liquid Chromatography Instrument
| Manufacturer: | Wayeal |
| Product Name: | Liquid Chromatography Instrument |
| Working Power Supply | 220V, 50Hz |
| Ambient Temperature | 10~40°C |
| Relative Humidity | 20~85% |
| Qualitative Repeatability | ≤0.2% |
| Quantitative Repeatability | ≤0.4% |

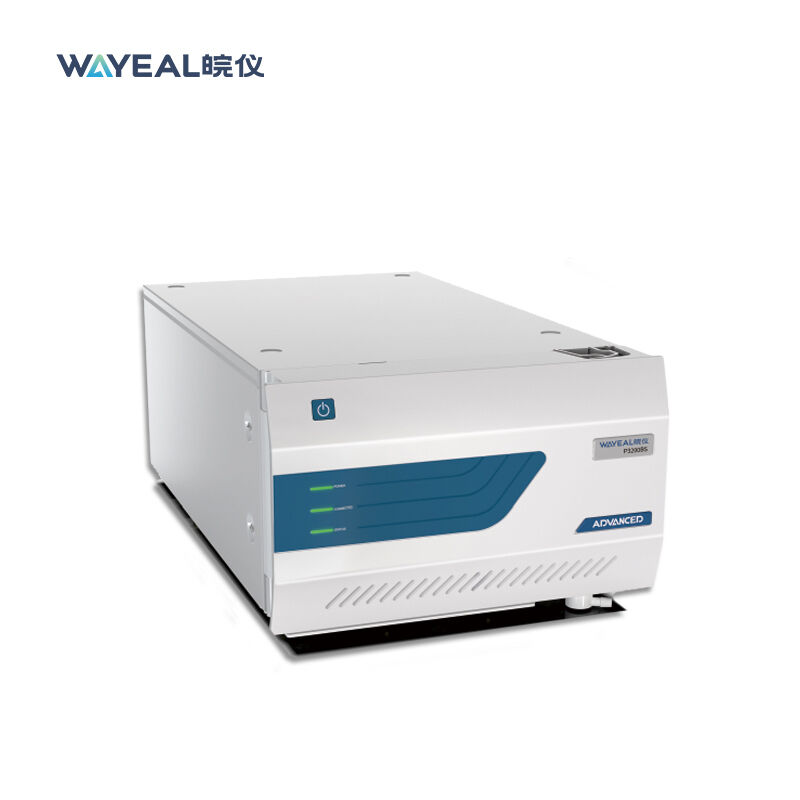

| High Pressure Constant Flow Pump | |
| Flow Rate Range | 0.001~10.000mL/min |
| Setting Step | 0.001mL/min |
| Pressure Range | 0~42MPa |
| Pressure Pulsation | 0.1MPa |
| Flow Rate Set Error | ±0.2% |
| Flow Rate Stability | RSD≤0.06% |
| Gradient Error | ±1% |
| Column Oven | |
| Temperature Control Range | 4~85°C |
| Temperature Stability | ±0.02°C |
| Temperature Setting Resolution | 0.1°C |

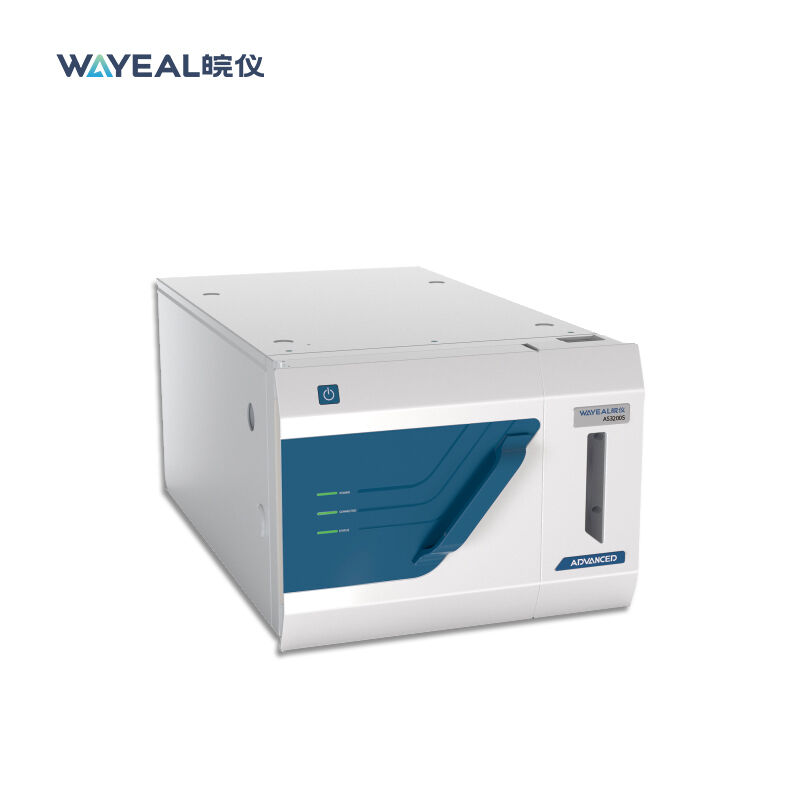

| Autosampler | |
| Injection Volume Repeatability | ＜0.5%RSD |
| Linearity | ＞0.9999 |
| Cross Contamination | ＜0.002% |
| Injection Volume Accuracy Error | ±1% |
| Sample Positions | 120 |
| Injection Volume | 1~100μL |
| UV Detector | |
| Baseline Noise | ≤2.0*10-6Au |
| Baseline Drift | ≤1*10-5Au/h |
| Mini Detection Concentration | ≤3.0*10-9g/mL (naphthalene/methanol) |
| Spectral Range | 188~900nm |
| Wavelength Error | ≤±0.1nm |
| Wavelength Repeatability | ≤±0.1nm |
| Linearity Range | ≥103 |
| DA Detector | |
| Baseline Noise | ≤4*10-5Au |
| Baseline Drift | ≤3*10-5Au/h |
| Mini Detection Concentration | ≤2*10-8g/mL |
| Spectral Range | 190~800nm |
| Wavelength Error | ≤±0.1nm |
| Wavelength Repeatability | ≤±0.1nm |
| Linearity Range | ≥ 104 |
| ELS Detector | |
| Baseline Noise | ≤ 0.0037mV |
| Baseline Drift | ≤ 0.0026mV/30min |
| Evaporation Gas Flow Range | (0 ~ 3) SLM |
| Atomization Temperature Range | Room temperature ~ 90℃ |
| Evaporation Temperature Range | Room temperature～110℃ |
| Detection Chamber Temperature Range | Room temperature～60℃ |
| Input Air Pressure | (4 ~ 7) bar |
| FL Detector | |
| Baseline Noise | ≤ 5×10-6 FU |
| Baseline Drift | ≤ 2 × 10-5 FU/30min |
| Spectral Range | (200 ~ 650) nm |
| Wavelength Error | ± 0.1 nm |
| Linearity Range | ≥ 104 |
| RI Detector | |
| Detection Range | 0.25 ~ 512 μRIU |
| Linearity Range | ≥ 600 μRIU |
| Response Time | 0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec; |
| Cell Volume | 8μL |
Features of Liquid Chromatography Instrument
1. Modular system designing.
2. Dual separated pump heads with specially designed integrated check valve.
3. Dynamic compression compensation technology ensure the flow accuracy and stability.
4. Active seal washing.
5. UV detector has wavelength scanning and dual wavelength detection functions.
6. The high-pressure pump adopts two-stage suspension transmission technology, combined with the suspension plug rod design of imported pump head, so as to prolong the service life of sealing ring and reduce the user's cost.
7. The proportional valve precisely controlled by the FPGA programmable logic ensure the accuracy of gradient proportion.
Applications of Liquid Chromatography Instrument
Food, medicine, environment, agriculture and scientific research
