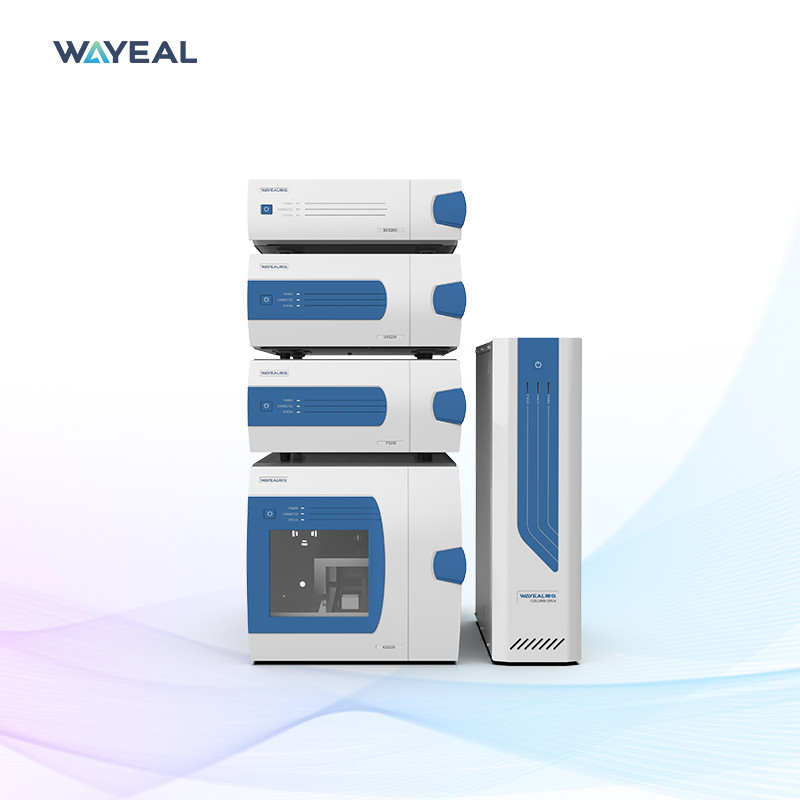

Laboratory Analytical hplc Machine High Performance Liquid Chromatography Instrument
Introduction of Liquid Chromatography Instrument
High performance liquid chromatograph (HPLC) is an instrument based on the principle of high performance liquid chromatography, which is widely used in food, medicine, environment, agriculture and scientific research area.
Parameters of Liquid Chromatography Instrument
| Manufacturer: | Wayeal |
| Product Name: | Liquid Chromatography Instrument |
| Working Power Supply | 220V, 50Hz |
| Ambient Temperature | 10~40°C |
| Relative Humidity | 20~85% |
| Qualitative Repeatability | ≤0.2% |
| Quantitative Repeatability | ≤0.4% |
| High Pressure Constant Flow Pump | |
| Flow Rate Range | 0.001~10.000mL/min |
| Setting Step | 0.001mL/min |
| Pressure Range | 0~42MPa |
| Pressure Pulsation | 0.1MPa |
| Flow Rate Set Error | ±0.2% |
| Flow Rate Stability | RSD≤0.06% |
| Gradient Error | ±1% |
| Column Oven | |
| Temperature Control Range | 4~85°C |
| Temperature Stability | ±0.02°C |
| Temperature Setting Resolution | 0.1°C |
| Autosampler | |
| Injection Volume Repeatability | ＜0.5%RSD |
| Linearity | ＞0.9999 |
| Cross Contamination | ＜0.002% |
| Injection Volume Accuracy Error | ±1% |
| Sample Positions | 120 |
| Injection Volume | 1~100μL |
| UV Detector | |
| Baseline Noise | ≤2.0*10-6Au |
| Baseline Drift | ≤1*10-5Au/h |
| Mini Detection Concentration | ≤3.0*10-9g/mL (naphthalene/methanol) |
| Spectral Range | 188~900nm |
| Wavelength Error | ≤±0.1nm |
| Wavelength Repeatability | ≤±0.1nm |
| Linearity Range | ≥103 |
| DA Detector | |
| Baseline Noise | ≤4*10-5Au |
| Baseline Drift | ≤3*10-5Au/h |
| Mini Detection Concentration | ≤2*10-8g/mL |
| Spectral Range | 190~800nm |
| Wavelength Error | ≤±0.1nm |
| Wavelength Repeatability | ≤±0.1nm |
| Linearity Range | ≥ 104 |
| ELS Detector | |
| Baseline Noise | ≤ 0.0037mV |
| Baseline Drift | ≤ 0.0026mV/30min |
| Evaporation Gas Flow Range | (0 ~ 3) SLM |
| Atomization Temperature Range | Room temperature ~ 90℃ |
| Evaporation Temperature Range | Room temperature～110℃ |
| Detection Chamber Temperature Range | Room temperature～60℃ |
| Input Air Pressure | (4 ~ 7) bar |
| FL Detector | |
| Baseline Noise | ≤ 5×10-6 FU |
| Baseline Drift | ≤ 2 × 10-5 FU/30min |
| Spectral Range | (200 ~ 650) nm |
| Wavelength Error | ± 0.1 nm |
| Linearity Range | ≥ 104 |
| RI Detector | |
| Detection Range | 0.25 ~ 512 μRIU |
| Linearity Range | ≥ 600 μRIU |
| Response Time | 0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec; |
| Cell Volume | 8μL |
Performance of Liquid Chromatography
1. Mainstream split design and perfect system detection function to meet most of the detection needs
2. Customized acetonitrile resistant check valve
3. In-line plunger rod cleaning function as standard
4. France imported 1800l/mm grating
5. Fully intelligent reverse control chromatography workstation
