Place of Origin:
Anhui, China
Brand Name:
Wayeal

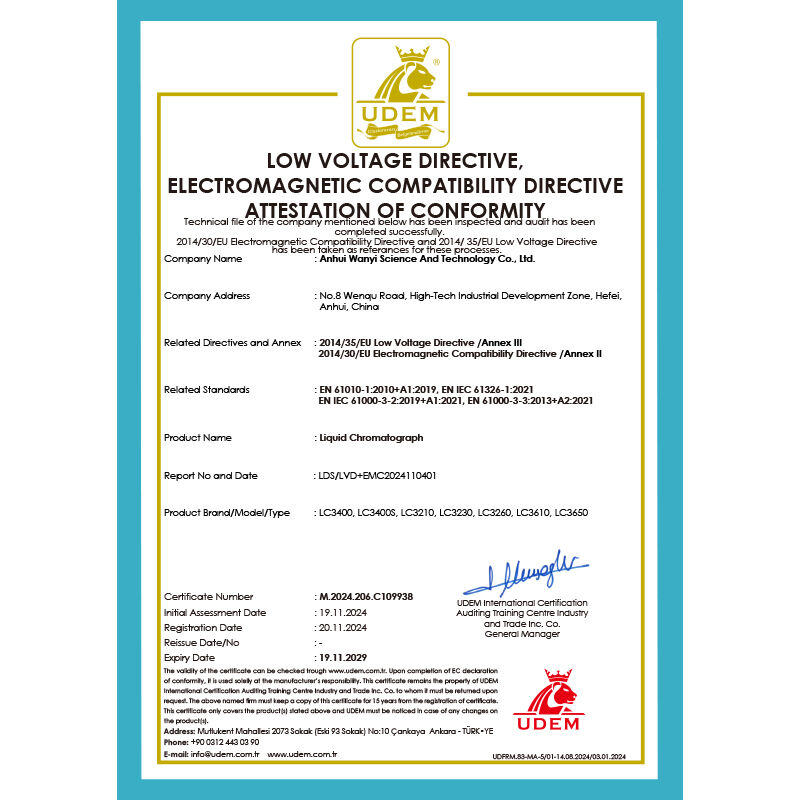

Certification:
ISO, CE
Model Number:
LC3200

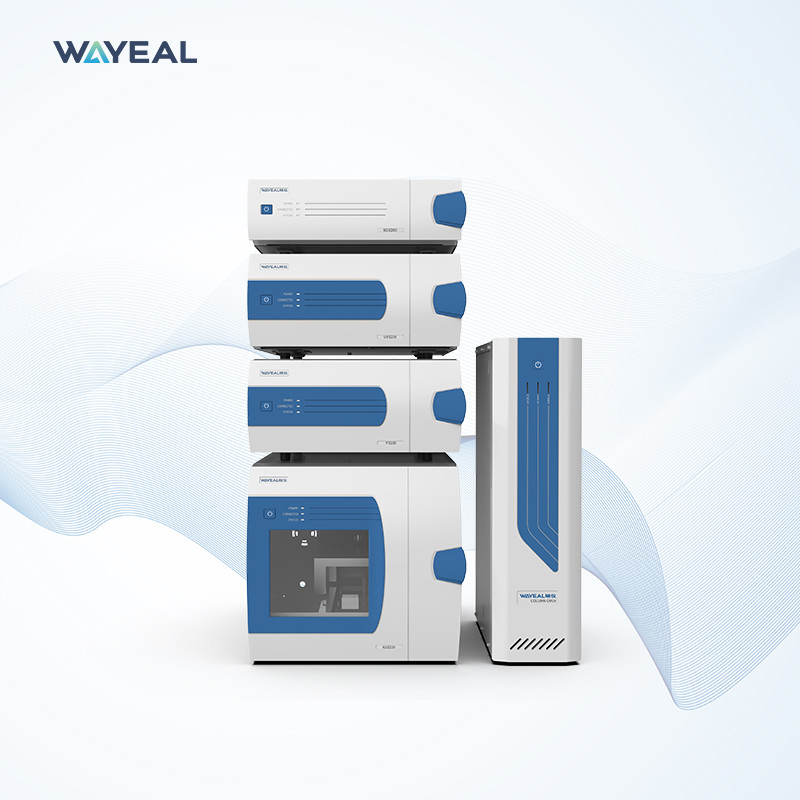

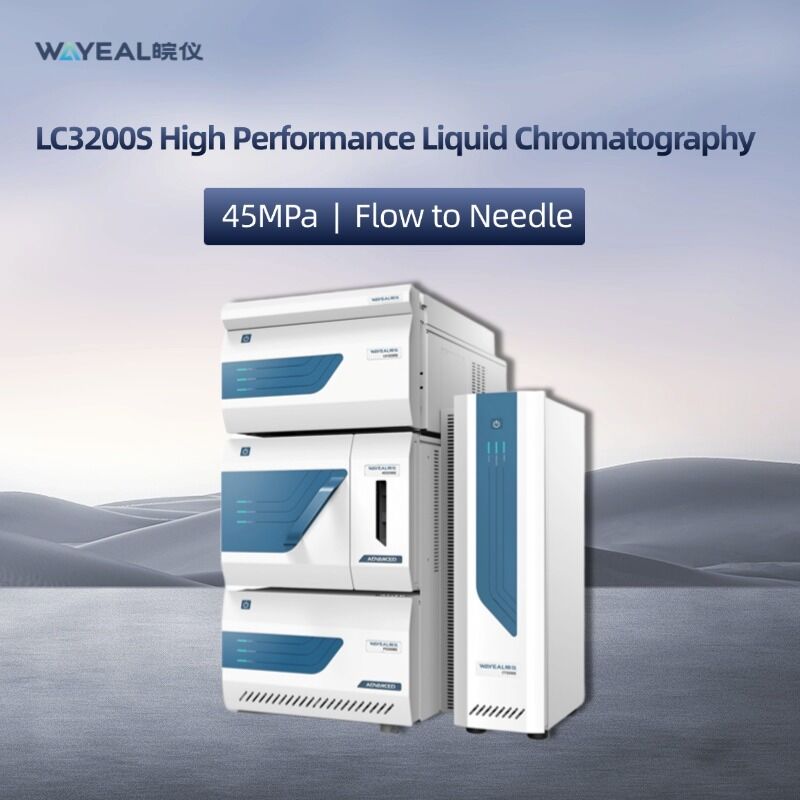

Intelligent High Performance Full-controlled hplc Liquid Chromatography Instrument
Introduction of HPLC Liquid Chromatography Instrument
High performance liquid chromatograph (HPLC) is consists of reservoir, pump, sample injector, chromatographic column, detector and recorder. And it is mainly used to analyze less-volatile and thermal-unstable organic compounds with high boiling point and large molecular weight.
Parameters of HPLC Liquid Chromatography Instrument

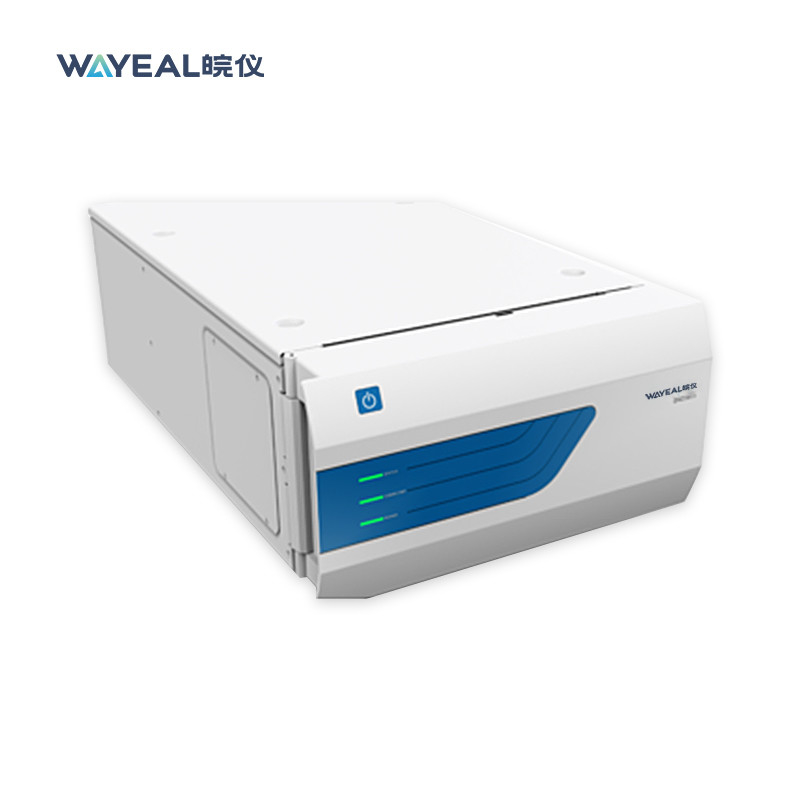

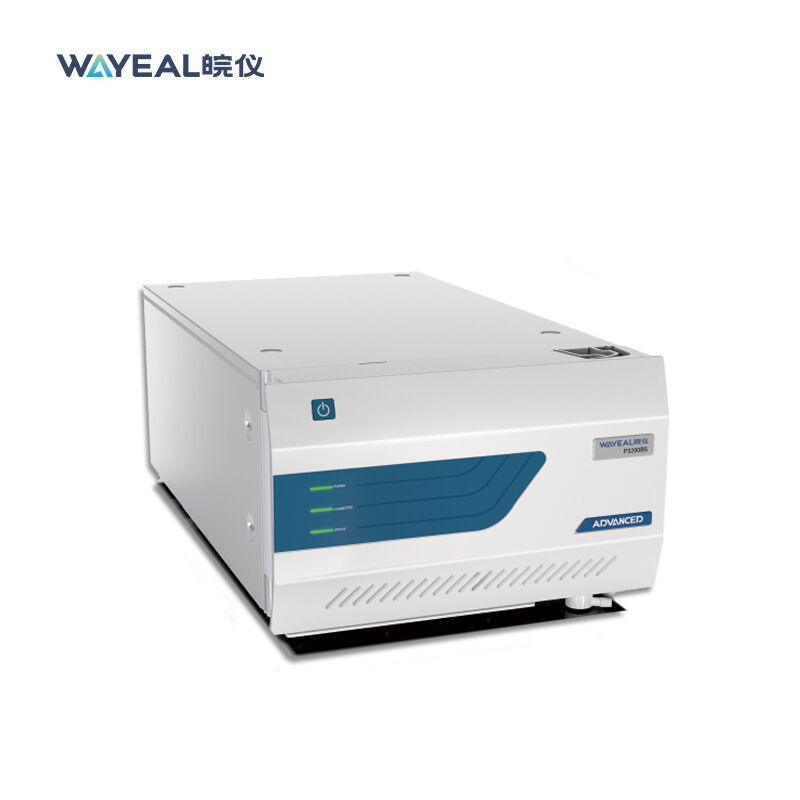

Pump
| Flow rate range | 0.001-10.000mL/min( increments :0.0001 mL/min) |
| Max operating Pressure | 42MPa |
| Pressure pulsation | <0.1MPa( Test condition: 10MPa , at 1.0ml/min methanol) |
| Flow accuracy | ±0.2%( Test condition: 10MPa , at 1.0ml/min methanol) |
| Flow precision | RSD≤0.06%( Test condition: 10MPa , at 1.0ml/min methanol) |
| Gradient accuracy | ±1% |
| Seal wash | With programmable on-line seal wash module |
Auto sampler
| Injection Volume Precision | <0.25%RSD( full loop) ; <0.5%RSD( partial loop) ; <1%RSD( no waste) |
| Linearity | >0.999 |
| Cross Contamination(Carry Over) | <0.01% |
| Sample Capacity | 120 samples( 1.5ml vials) |
| Syringe | 250 μL( Standard, with 500μL,1000μL, 2500μL optionals) |
| Sample Loop | 20μL( Standard, with 50μL, 100μL, 200μL optional) |
| Optional sample chamber cooler | 4 °C ~ 30 °C(4 °C lowest) |
| Injection volume range | 1-100 μL |
| Injection mode | Full loop injection,partial loop injection,no waste injection |

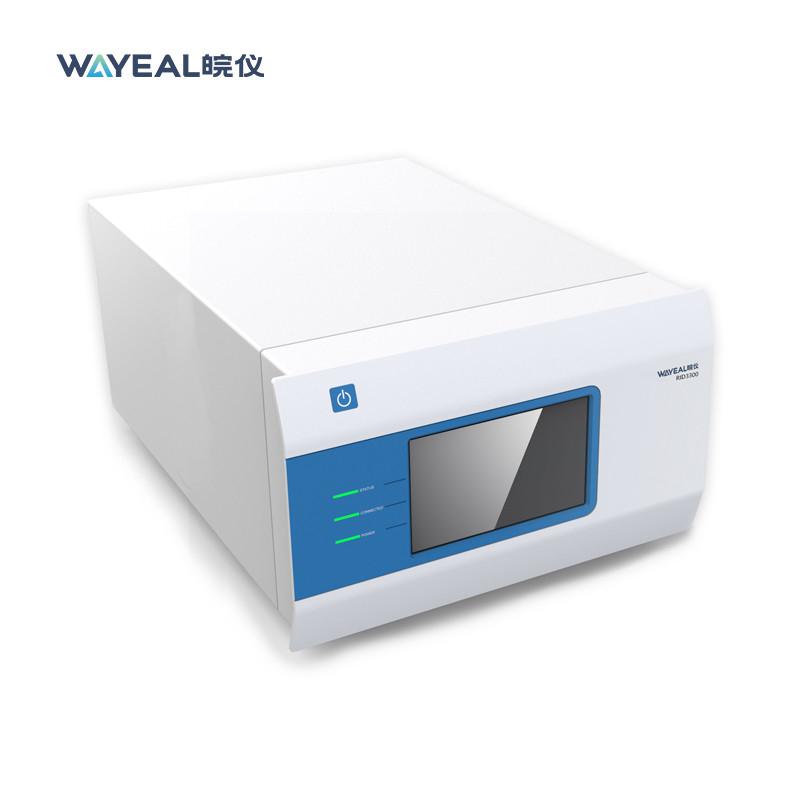

DAD Detector
| Noise | 1.5×10-5Au |
| Drift | ≤1×10-3Au/h |
| LOD | 5.0×10-9g/mL (naphthalene/methanol) |
| Wavelength range | 190-800n |
| Wavelength accuracy | ≤±1 nm |
| Wavelength reproducibility | ≤±0.1 nm |
| Linearity | ≥1.0×104 |
| Extend functions | Wavelength bunching etc. |
FLD Detector
| Noise | 1×10-5 Fu |
| Drift | ≤2×10-4Fu/30min |
| LOD | 5.0×10-10g/mL (naphthalene/methanol) |
| Wavelength range | 200-650nm |
| Wavelength accuracy | ±2 nm |
| Wavelength reproducibility | ±0.2 nm |
| Linearity | ≥1.0×104 |
Performance of Liquid Chromatography
1. Mainstream split design, complete system testing function, to meet most testing needs;
2. Customized acetonitrile-resistant check valve;
3. The new cam curve design adopts electronic pulsation suppression technology and solvent
compression compensation to further reduce pressure fluctuations and ensure higher repeatability of test results;
4. Standard configuration of plunger rod online cleaning function;
5. 1800L/mm grating imported from France;
6. Optional UV, ELSD, FLD, DAD detectors from our company;
7. Fully intelligent counter-control chromatography workstation
