LD1200A Continuous Emissions Monitoring System pm2.5 pm10 Particle Dust Monitor
Product Introduction

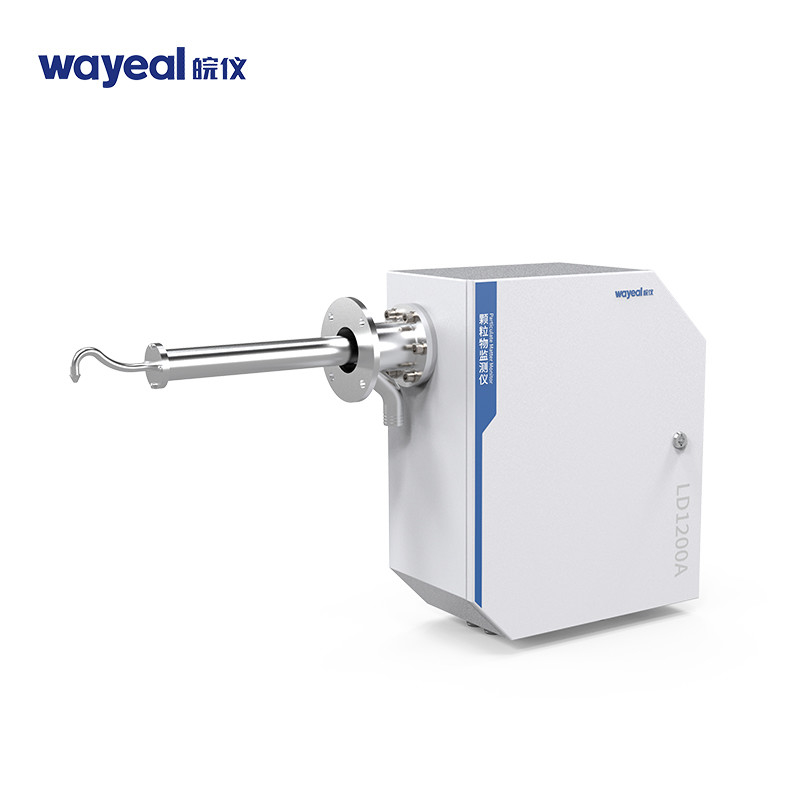

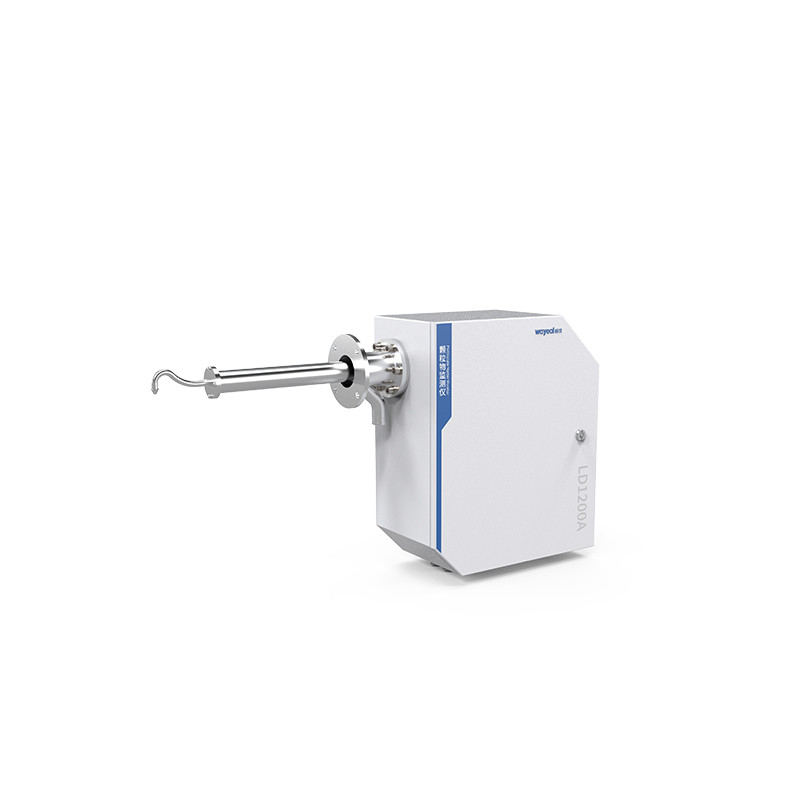

The LD1200A system is a highly sensitive particulate monitor for continuous monitoring of particulate matter concentrations in wet flue gases. The instrument is suitable for ultra-low range particulate emission measurements in wet scrubbers with flue gas temperatures below the dew point or in the presence of liquid droplets, or other dry flue gas processes.
Product Parameter
| Product Name | Continuous Emissions Monitoring System pm2.5 pm10 Particle Dust Monitor |
| Size | 2000*1200*800mm/600*600*600mm |
| Weight | 50KGS |
| Detection Gas | PM2.5, PM10 |
| Minimum Detection Limit | 0.1mg/m3 |
| Packing | Wooden Case |
| Material | Stainless Steel |
Product Performance
1. Sampling laser front scattering principle, ultra-high sensitivity, minimum detection limit of 0.1mg/m3.
2. The whole process of high temperature sampling and high temperature analysis and measurement, not affected by water vapor.
3. The unique patented technology of thermal conduction heating sampling rod, heating box build in a large diameter high
temperature pneumatic ball valve, to achieve power outage and lack of air automatically disconnect the gas circuit to protect the detector, and can achieve the timed blowback system maintenance-free design.
4. High-sensitivity laser front scattering detector, and the use of the inner layer of smoke outer high-temperature gas curtain to protect the lens, for zero maintenance.
Industry Application
Mainly used in thermal power plants, industrial boiler kilns, garbage incineration plants, petrochemical industry, etc.
