Chromatography Pad HPLC Detector Diode Array 190nm-800nm

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: ISO, CE
Trading Properties
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 30 Pieces Per Month
Tags

continuous flow analyzers

fld detector hplc

hplc uv detector
Specifications
Product Name: Diode Array Detector Instrument In HPLC Drift: ≤1×10-3Au/h
Wavelength: 190nm-800nm Color: White, Blue
Packing: Wood Case Or Customized Wavelength accuracy: ≤±1 Nm
High Light:

800nm HPLC Detector

,

Diode Array HPLC Detector

,

HPLC Chromatography Detectors
Product Description

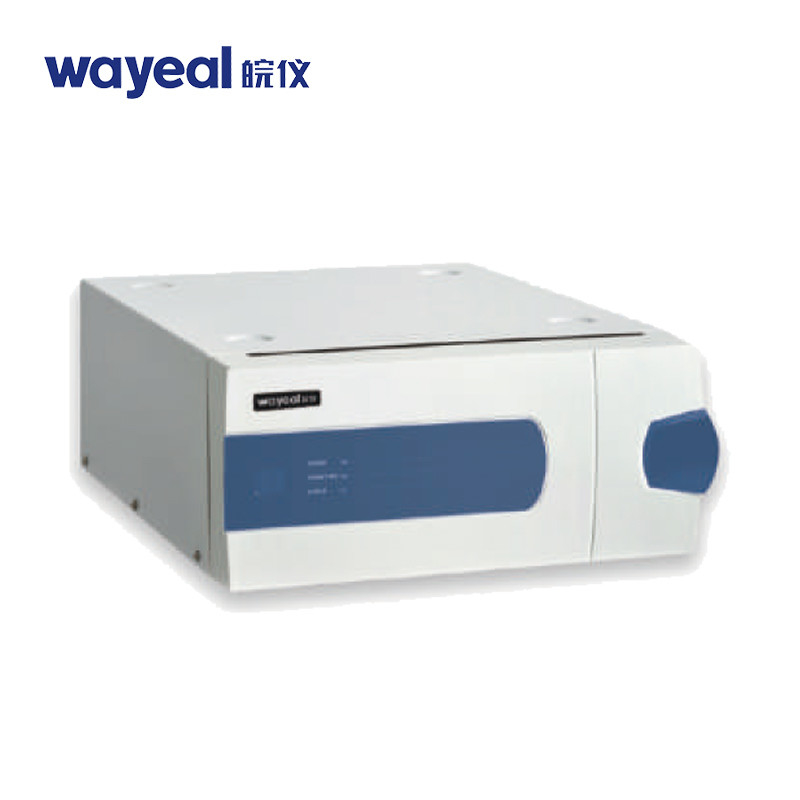

Wayeal hplc Pad Detector Diode Array Detector Instrument for HPLC Chromatography

Product Introduction
The diode array detector is a highly efficient, powerful and versatile detector for high performance liquid chromatography systems. With imported core components, integrated optical structure design, stable and reliable performance, it can achieve simultaneous detection of all wavelengths in the range of 190nm-800nm, with 1024 times more information than the UV detector. On top of the chromatographic functions, it provides spectrograms and matching calculations, maximum value graphs, 3D views, contour line graphs, peak purity calculations and spectral library management.

Product Parameter

Wayeal hplc Pad Detector Diode Array Detector Instrument for HPLC Chromatography
Noise 1.5×10-5Au
Drift ≤1×10-3Au/h
LOD 5.0×10-9g/mL (naphthalene/methanol)
Wavelength range 190-800nm
Wavelength accuracy ≤±1 nm
Wavelength reproducibility ≤±0.1 nm
Linearity ≥1.0×104
Extend functions Wavelength bunching etc
