Wayeal Remote Control Helium Leak Test Equipment Chamber 600W
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xVacuum Charmber Quantity | 1~6 | Vacuum Chamber Volume | 0.1-10000L, Accept Customized |
---|---|---|---|
Product Size | Customized | Number Of Test Pieces Per Chammber | 1~6 |
Product Name | Vacuum Leak Detection System | Customized Vacuum Leak Detection System Equipment For Vacuum Industry | 600W |
High Light | Wayeal helium leak test equipment,600W helium leak test equipment,600W helium leak test chamber |

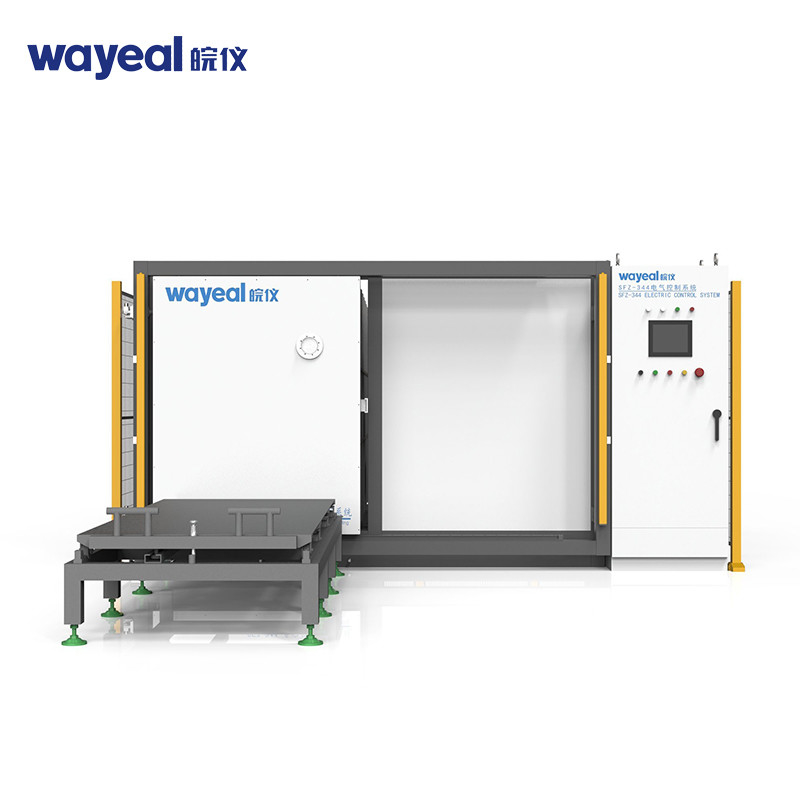

Vacuum Chamber Helium Leak Detecting System Used in Electricity Industry
Product Introduction
Motor Power: 600 W
Ultimate pressure: 1000 Pa
German original molecular pump, double-iridium with ion source;
Unique air circuit design, low particulate interference;
Self-protection function to prevent background contamination;
Automatic evacuation pressure and time setting for high leak detection efficiency;
Mobile cart, low moving noise
With fault prompt and alarm function;
Optional wireless remote control.
This equipment is suitable for leakage detection of high-voltage switchgears. It can be equipped with a material handling system to realize automatic in-and-out chamber, and reduce labor intensity. It can effectively control the internal-external pressure difference of the workpiece to ensure that the workpiece will not be damaged due to the pressure difference exceeding the limit. The helium recovery system can realize helium recycling, which can greatly reduce the use-cost. The remote monitoring function is optional.
Product Performance
1. The size of vacuum chamber can be customized according to the size of workpiece; the equipment size and layout can be customized according to the workshop;
2. It is equipped with a left-right sliding door and a platform outside the chamber, so that workpieces can get in and out of the chamber smoothly and conveniently;
3. There are several independent joints reserved in the chamber, so multiple workpieces can be detected at the same time;
4. The helium can be recycled, with a recovery rate as high as 96%, which can reduce the use-cost;
5. High-end configuration, standardized design and production, and stable and reliable performance;
Product Application
Power switchgear, ring main unit, pole top switch, power castings
Product Parameter
Number of vacuum chammbers | 1~6 |
Number of test pieces per chammber | 1~6 |
Vacuum chamber volume | 0.1-10000L, Accept Customized |
Testing pressure | ≤35Mpa |
Detector leakge rate | 1*10-4-1*10-9 Pa.m3/s |
ecycling efficiency | ≤98% |
Vacuum chammber evacuation pressure | ≤30Pa |
