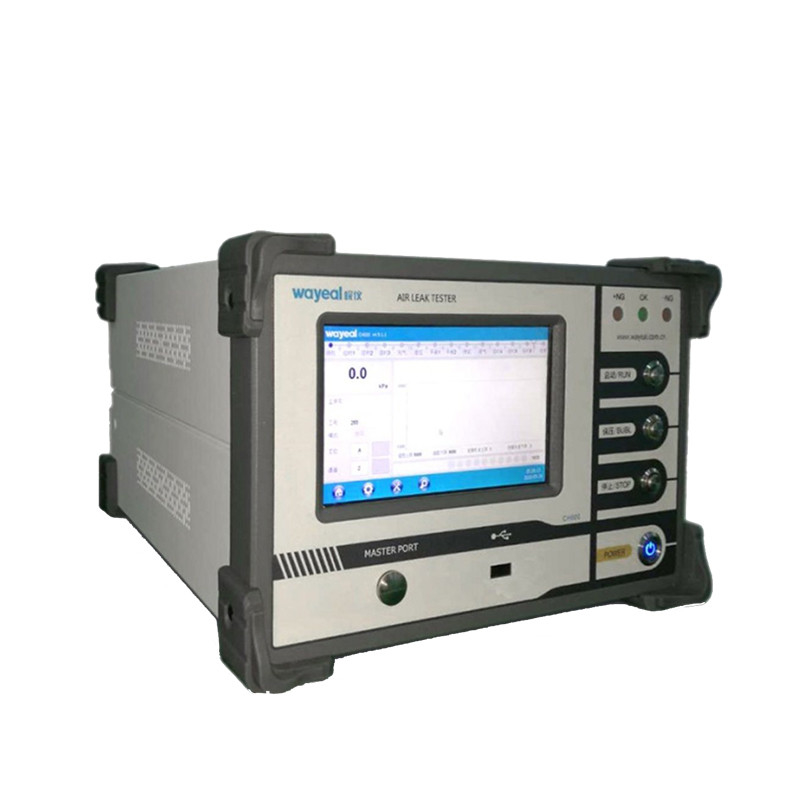

Smart Helium Differential Pressure Leak Detector Machine 100KPa

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Minimum Order Quantity 1
Price US$999~US$9999 Per Piece
Packaging Details One piece per wooden case
Delivery Time 8 days
Payment Terms L/C, T/T
Supply Ability 50 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Precision The Value Can Be Set To 0 To 4 Decimal Places Size 460mm×328mm×222mm
Weight 14kg Test Pressure ≥500KPa
High Light

helium Pressure Leak Detector

,

100KPa Pressure Leak Detector

,

100KPa helium testing machine

Leave a Message
Product Description

Smart Leak Detector Differential Pressure Type Air Tightness Leak Detector Tester



Product Description

The instrument detects the pressure drop per unit time through a high-precision pressure sensor. The system has a simple structure, high reliability and low maintenance cost. It is convenient for large-volume long-time pressure monitoring and leakage detection

Product Performance
By filling compressed air of specified pressure into the measured object (product), this instrument detects whether there is leakage according to the change of its internal pressure. Firstly, the leak detector fills the measured object with the regulated gas, and then stops the inflation to maintain pressure. During the pressure maintaining process, it senses the pressure drop caused by leakage, that is, direct pressure leakage rate, through a high sensitivity pressure sensor.

Industry Application
Automobile, new energy, electronics, medical, food



Product Parameter



Direct pressure air tightness leak detector
Main models and technical parameters
Direct pressure sensor Recommended Test pressure Range



ZH500 Mechanical pressure regulating 10KPa~500KPa
ZH1000 Mechanical pressure regulating 50KPa~1200KPa
ZH2400 Mechanical pressure regulating 50KPa~2400KPa(optional)
ZH600-X
(multi-station)
Mechanical pressure regulating 10KPa~500KPa(optional)
Sensor error ±0.1%F.S.
Display Unit Test pressure KPa,MPa,kg/cm2,psi,mbar, bar, Torr, mmH2O, mmHg
Leakage

Pa,kPa,Pa/s,kPa/s,kPa/min,mL/s, mL/min,mL/h,L/min,L/h,SCCM

Parameter program number Other 64 groups (1~64)
  ZH600-X(multi-station) 64 groups (A/B/C/D each channel can set 16 groups of parameters program)
Test Beat Setting 0 ~ 999 seconds, test time 1800 seconds
Power Supply AC 220V±10%,50Hz
Test Pressure Source Clean, dry, adequate flow, not less than 500KPa and 100KPa above the test pressure source
Overall dimensions 460mm×328mm×222mm
Weight 14kg
