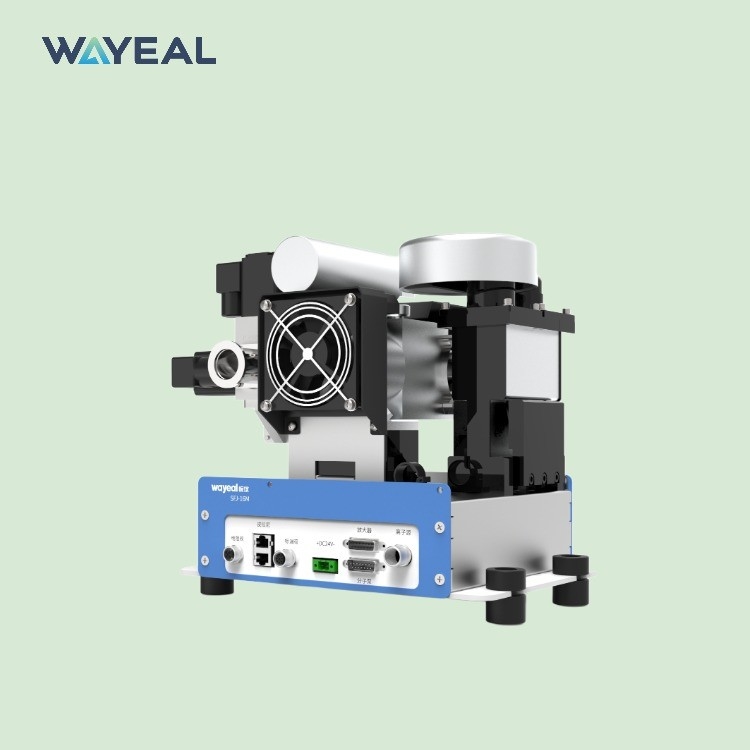

Introduction of Helium Leak Detector:
Featuring a DN25KF leak detection port, this Helium Leak Detector is compatible with a wide range of vacuum systems, making it a versatile tool for industrial vacuum detection. The detectable quality of this leak detector is also impressive, with the ability to detect leaks of H2, He3, and He4. This means that you can be sure that even the smallest leaks will be detected, ensuring that your vacuum system remains in top condition.
One of the standout features of this Helium Leak Detector is the multiple communication interfaces it offers. With RS232/485 and LAN interfaces, you can easily connect this leak detector to your existing systems, making it a seamless addition to your industrial setup. This allows for easy data transfer, which can be useful for tracking and analyzing vacuum system performance.
The Helium Leak Detector also features multiple ways to display leak rate information. Whether you prefer numbers, bar charts, or graphs, this leak detector can deliver the information in a format that is easy to understand. This makes it easy to quickly identify and address any issues with your vacuum system, ensuring that it operates at peak efficiency.
In conclusion, the Helium Leak Detector is an essential tool for any industrial setup that relies on vacuum systems. With its impressive detectable quality, versatile compatibility, and multiple communication interfaces, this leak detector is designed to make your job easier and more efficient. Whether you are looking to maintain high-quality vacuum performance or improve the overall efficiency of your industrial setup, the Helium Leak Detector is the solution you have been looking for.
Technical Parameters of Helium Leak Detector:
| SFJ-16M Helium Leak Detector |
|
Performance Indicators
|
Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode |
Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5 l/s)
Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5 L /s) |
Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode |
5.0×10-8 |
| Response time(s) |
<1 |
| Startup time(min) |
≤95s |
Leakage detection range
(Pa·m3/s) |
5.0×10-13~1.0×10-3 |
Leakage rate display range
(Pa·m3/s) |
1.0×10-13~1.0×10-3 |
| Maximum allowable leak detection pressure(Pa) |
1500 |
| Detectable quality |
2,3,4(H2 , He3, He4) |
|
Basic Configuration
|
Man-machine interface |
5 "color LCD Touch Screen |
| Ion source |
2pcs, iridium coated yttrium oxide, automatic switching |
| I/O Input/output interface |
Eight inputs and eight outputs |
| Communication interface |
RS232/485,LAN |
| MES interface |
Standard |
Physical size of instrument
(W)×(D)×(H),mm |
592 * 498 * 370mm |
| Specifications of leak detection port |
DN16 KF/2pcs |
| Power Supply |
DC24V |
| Operating temperature |
0-40ºC |
| Power |
240W |
| Display language |
Both Chinese and English |
| Leakage rate display |
Figure, bar chart, curve chart |
Applications of Helium Leak Detector:
Product Application Occasions and Scenarios for Wayeal SFJ-16M Helium Leak Detector
Household air conditioners, automobile air conditioners, household refrigerators, and other equipment using refrigerants use the helium leak detector to conduct the helium leak test.
The helium leak test using the helium leak detector is used in a wide range of applications and industries, from fire extinguishers, food products, and electronic components to aircraft and satellites.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Sniffer Method
Helium Hood Method
