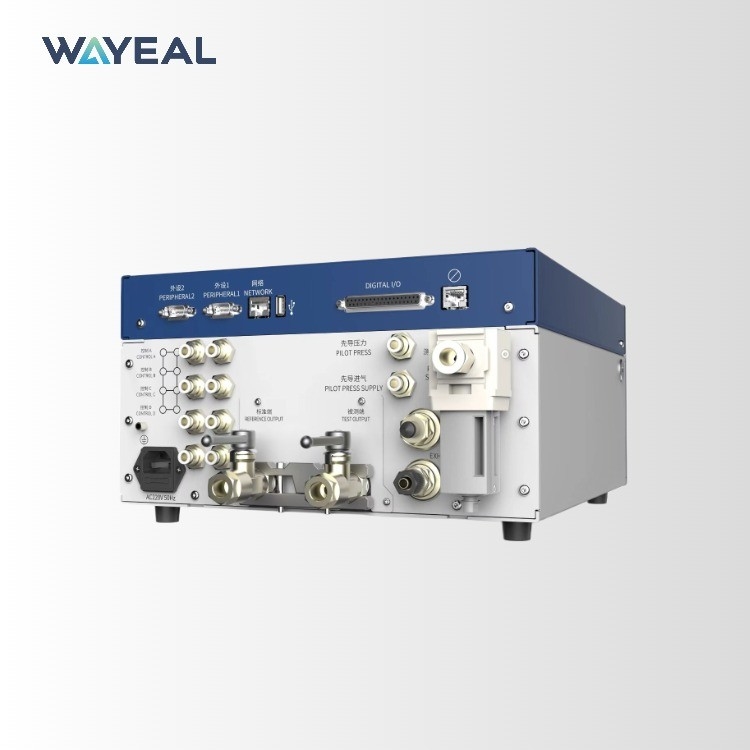

Introduction of Helium Leak Detector:
The Helium Leak Detector provides a highly accurate and reliable method of detecting leaks in vacuum systems. The device uses Helium as a tracer gas to detect even the smallest leaks in the system. The Helium leak detector is widely used in the semiconductor industry, aerospace, and other industries that require high vacuum systems.
Technical Parameters of Helium Leak Detector:
|
Airtightness Helium Mass Spectrometer Leak Detector Use in Pressurized Systems
|
|
Product Name
|
Helium Leak Detector
|
| Flow Sensor |
Display Precision |
The value can be set to 0 to 4 decimal places |
| Sensor Range |
LC103 (V5) |
30mL/min~1000mL/min (optional) |
| |
LC101 (V6) |
15mL/min~1000mL /min (optional) |
| Sensor Error |
±3%F.S.(optional) |
|
|
| Direct Pressure |
Display Precision |
The value can be set to 0 to 4 decimal places |
| Recommended Test Pressure Range |
LC103 (V5) |
Mechanical Pressure Regulating |
10~600kPa (Optional) |
| LC101(V6) |
Mechanical Pressure Regulating |
10~600kPa (Optional |
| Sensor Error |
±0.1%FS. |
|
| Display Unit |
Test Pressure |
kPa,Mpa,kg/cm2,psi,mbar.bar, Torr,mmH,O,mmHg |
| Leakage |
mL/s,mL/min,L/min,Lh,m3/h,Pa/min,g/h,SCCM |
| Parameter Program Number |
64 groups(1~64) |
| Test Beat Setting |
0~999 seconds, test time 1800 seconds |
| Power Supply |
AC220V±10%, 50Hz |
| Test Pressure Source |
Clean, Dry, Adequate flow, no less than 500KPa and 100KPa above the test pressure source |
| Overall Diamensions |
Standard V5 |
330mm*222mm*448mm |
| Standard V6 |
321mm*205mm*560mm |
| Weight |
About 16kg |
Applications of Helium Leak Detector:
The Wayeal SFJ-16C Helium mass spectrometer Leak Detector is widely used in various occasions and scenarios, such as:
1. Aerospace industry: It can be used for vacuum detection of satellite components, aircraft fuel tanks, and other equipment.
2. Electronics industry: It can be used for vacuum detection of electronic components, semiconductor materials, and vacuum equipment.
3. Medical industry: It can be used for vacuum detection of medical equipment, such as blood analyzers and vacuum suction devices.
4. Chemical industry: It can be used for vacuum detection of chemical equipment, such as reaction kettles and distillation equipment.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
