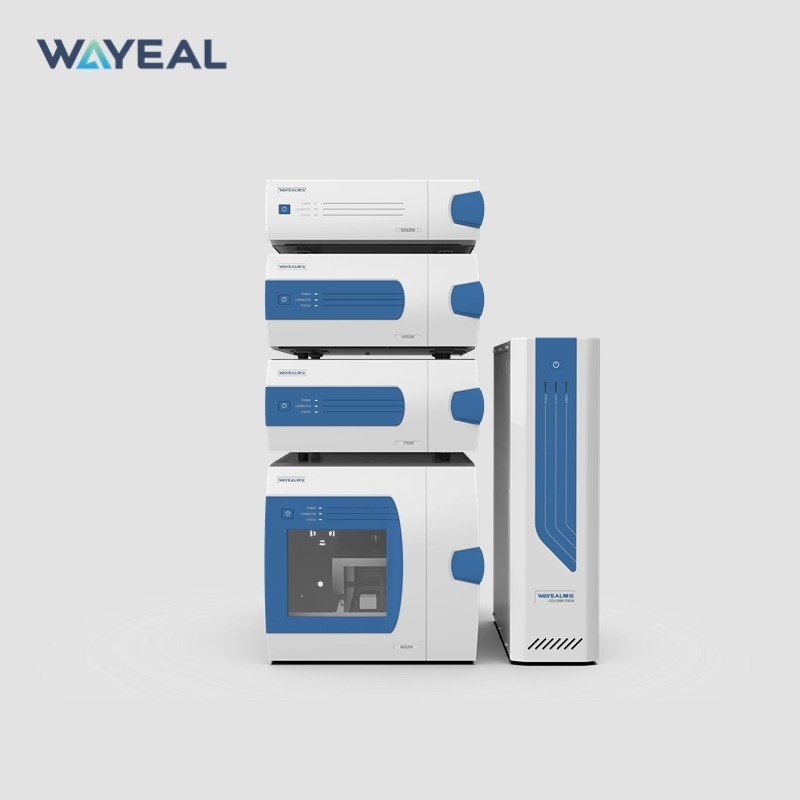

High Performance Liquid Chromatography Hplc Machine With DAD Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number LC3200
Minimum Order Quantity 1
Price Negotiation
Packaging Details One unit per wooden case
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 30-40 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HPLC Instrument Price Detector DAD Detector
Baseline Noise ≤4*10-5Au Baseline Drift ≤3810-5Au/h
Spectral Range 190-800nm Wavelength Error ≤±0.1nm
High Light

DAD Detector HPLC Instrument

,

ISO hplc chromatography system

,

DAD Detector Hplc Machine

Leave a Message
Product Description

Cromatógrafo hplc preço hplc Machine Liquid Chromatography Instrument Price

Product Description



High performance liquid chromatography is an analytical chemistry technique applied to separate, identify, and quantify semi- and non-volatile compounds in liquid samples. Industries like pharma and biopharma, environmental, and food and beverage use HPLC for the characterization, purification, and quantitation of compounds. An HPLC instrument has four major components: a pump to deliver the mobile phase, an autosampler to inject the sample, a stationary phase column to separate the sample compounds, and a detector to measure the compounds. Additional elements include connective capillaries and tubing to allow the continuous flow of the mobile phase and sample through the system and a CDS package to control the HPLC instrument, separation, detection, and result evaluation.



Product Parameter



Cromatógrafo hplc preço hplc Machine Liquid Chromatography Instrument Price

Working Conditions


Working Power Supply 220V,50HZ
Ambient Temperature 10-40℃
Ambient Humidity 20-85% relative humidity(non-condensing)

System features


Qualitative Repeatability RSD≤0.2%
Quantitative Repeatability RSD≤0.4%
High Pressure Pump
Flow Rate Range 0.0001-10.000mL/min( increments :0.0001 mL/min)
Setting Step 0.001mL/min
Pressure Range 0~42MPa
Pressure Pulsation 0.1MPa(10MPa, C18, methanol 1mL/min)
Flow Rate Set Error ±0.2%
Flow Rate Set Stability RSD≤0.06%
Gradient Error

±1%

Column Oven
Temperature Control Range 4~85°C
Temperature Stability ±0.02°C
Temperature Setting Resolution 0.1°C
Autosampler
Injection Volume Repeatability <0.5%RSD
Linearity >0.9999
Injected Volume Accuracy Error ±1%
Cross Contamination <0.002%
Number of Smaples 120(2*20,2ml)
Injection Volume 1-100ul

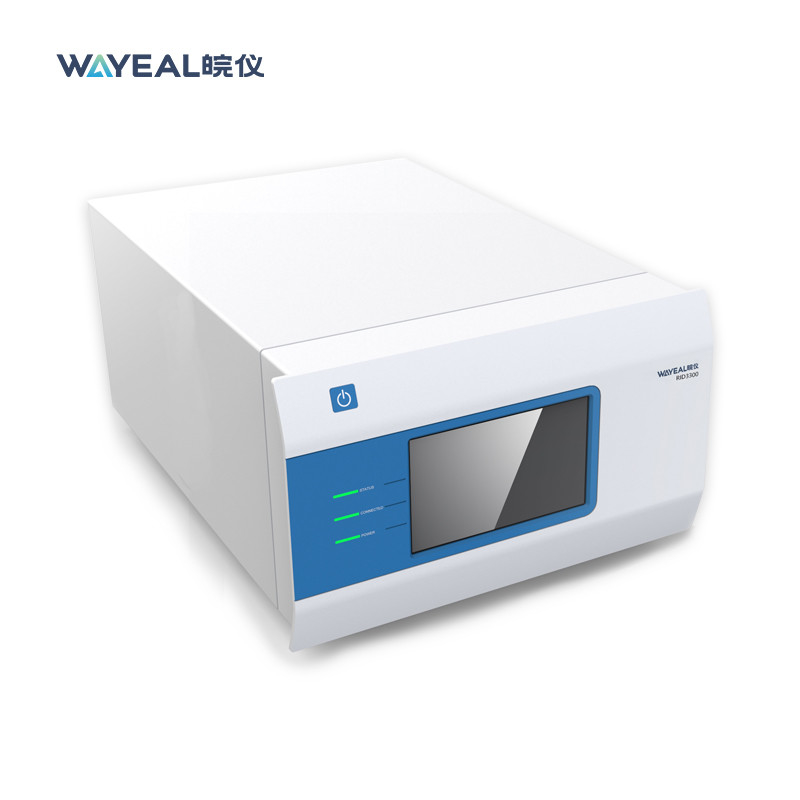

Detector(DAD)
Baseline Noise ≤4810-5Au
Baseline Drift ≤3*10-5Au/h
Min Detection Concentration ≤2*10-8g/mL
Spectral Range 190-800nm
Wavelength Error ≤±0.1nm
Wavelength Repeatability ≤±0.1nm
Linearity Range ≥104



Product Performance


  • Water purification
  • Detection of impurities in pharmaceutical industries
  • Pre-concentration of trace components
  • Ligand-exchange chromatography
  • High-pH anion-exchange chromatography of carbohydrates and oligosaccharides





Product Application


Determination of Aflatoxin B and G groups, Nutrients, Additives, Aflatoxin M, Heterotrophic trichothecene, Penicillin, Erythrostenone, Deoxynivalenol and its acetylated derivatives, Ochratoxin A, T-2 toxin, Fumonisins in food.
