Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
GT-96
Video

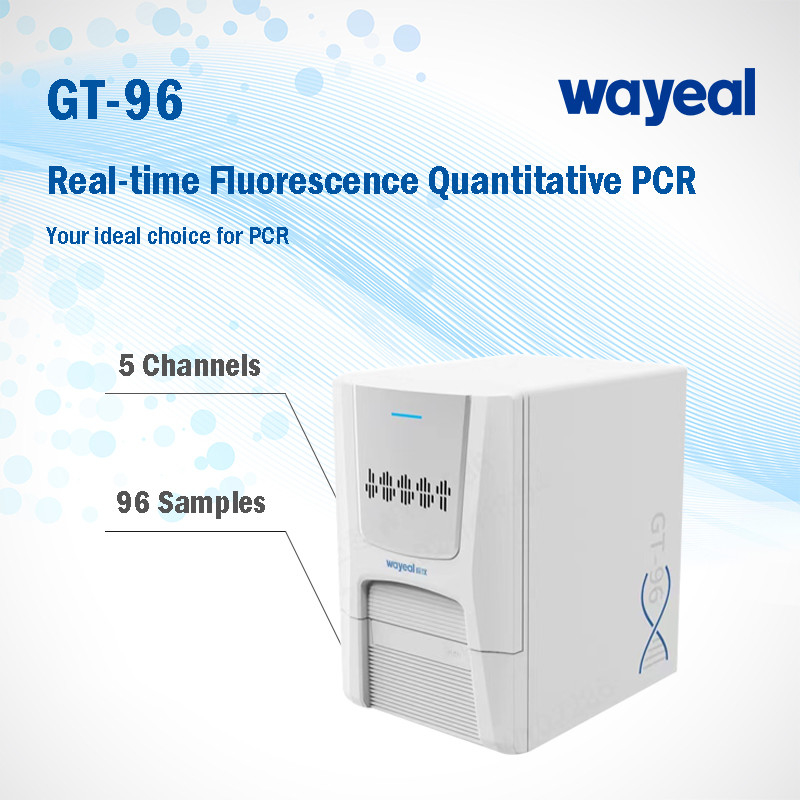

Real Time Laboratory Fluorescence Quantitative PCR Analyzer System for Nucleic Acid Test
Product Introduction
Sometimes called "molecular photocopying," the polymerase chain reaction (PCR) is a fast and inexpensive technique used to "amplify" - copy - small segments of DNA. Because significant amounts of a sample of DNA are necessary for molecular and genetic analyses, studies of isolated pieces of DNA are nearly impossible without PCR amplification.The GT-96 Real-Time Fluorescence PCR instrument is a multiplexed fluorescence PCR analysis technology platform. The maximum throughput of the product is up to 96 samples, enabling five-channel fluorescence detection.
Product Parameters
| Real Time Laboratory Fluorescence Quantitative PCR Analyzer System for Nucleic Acid Test | |
| Product Size | 470*350*530mm |
| Power Supply | 100-220VAC, 50/60Hz, 1000VA |
| Average Heating Rate | ≥3.0℃/s |
| Average Cooling Rate | ≥2.0℃/s |
| Temperature Control Accuracy | ±0.1℃ |
| Temperature Accuracy | ±0.1℃ |
| Temperature Uniformity | ±0.1℃ |
| Temperature Range | 4℃-100℃ |
| Light Source | Light Source |
| Repeatability of Fluorescence Intensity | Repeatability of Fluorescence Intensity |
| Uniformity of Fluorescence Intensity | CV≤5% |
| Linearity of Fluorescence Intensity | |r|≥0.990 |
| Detection Channels | 5 Channels |
| Dyes | F1:FAM,SYBR Green
F2:HEX,VIC
F3:TAMRA,CY3
F4:ROX,TEXAS Red
F5:CY5
|
| Reaction System | 10-100μL |
| Kinetics Scope | 1-1010 copies |
| Sample Linearity | |r|≥0.990 |
| Quantitative Repeatability | CV≤2% |
| Quantification Error | ±2% |
| Stability | CV≤5% |

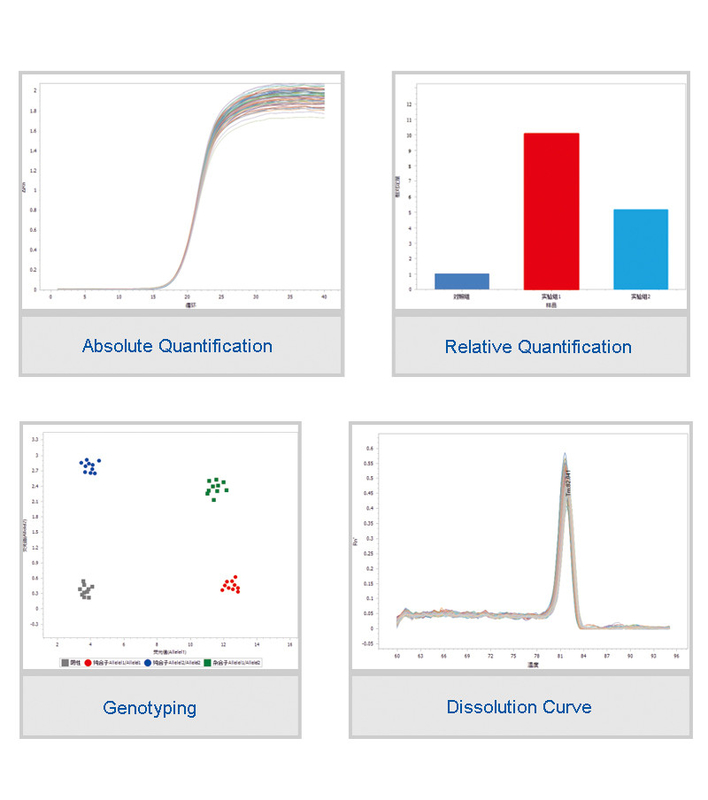

| Experiments | Absolute quantification,
Relative quantification,
Genotyping,
Dissolution curve
|
Product Performance
1. High-speed, low-noise camera for improved signal sensitivity
2. 5-channel fluorescence detection
3. Multiple forms of report output
4. Free fluorescence channel selection, free extension time setting
5. One PC controls multiple instruments, making it easy to observe experiments
6. The fully upgraded calibration algorithm makes the calibration process simple and easy
