Fast Testing Real Time Fluorescence Quantitative PCR Analyzer 96 Wells 5 Channels

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number GT-96
Minimum Order Quantity 1 Unit
Price Negotiation
Packaging Details 1 unit of pcr analyzer packed in wooden cases
Delivery Time 30 Days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 30 Units/ Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PCR Analyzer Temperature Range 4℃-100℃
Light Source LED Light Reaction System 10-100μL
Sample Linearity |r|≥0.990 Stability CV≤5%
High Light

PCR Analyzer 5 Channels

,

Fast Testing PCR Analyzer

,

Fast Testing PCR System

Leave a Message
Product Description

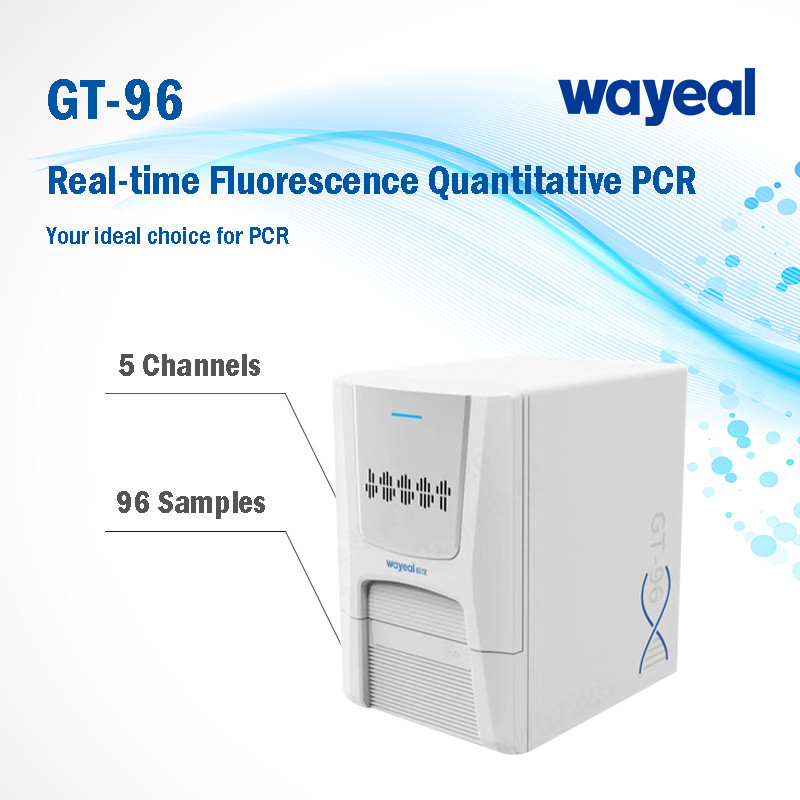

96 Wells 5 Channels Fast Testing Real Time Fluorescence Quantitative PCR analyzer System​



Product Introduction



Polymerase chain reaction (PCR) is now often indispensable technique used in medical and biological research labs for a variety of applications including qualitative and quantitative nucleic acid analysis; DNA cloning for sequencing, DNA-based phylogeny, or functional analysis of genes; the diagnosis of hereditary diseases; the identification of genetic fingerprints (used in forensic sciences and paternity testing); and the detection and diagnosis of infectious diseases.The GT-96 Real-Time Fluorescence PCR instrument is a multiplexed fluorescence PCR analysis technology platform. The maximum throughput of the product is up to 96 samples, enabling five-channel fluorescence detection.



Product Parameters



96 Wells 5 Channels Fast Testing Real Time Fluorescence Quantitative PCR analyzer System
Product Size 470*350*530mm
Power Supply 100-220VAC, 50/60Hz, 1000VA
Average Heating Rate ≥3.0℃/s
Average Cooling Rate ≥2.0℃/s
Temperature Control Accuracy ±0.1℃
Temperature Accuracy ±0.1℃
Temperature Uniformity ±0.1℃
Temperature Range 4℃-100℃
Light Source Light Source
Repeatability of Fluorescence Intensity Repeatability of Fluorescence Intensity
Uniformity of Fluorescence Intensity CV≤5%
Linearity of Fluorescence Intensity |r|≥0.990
Detection Channels 5 Channels
Dyes F1:FAM,SYBR Green
F2:HEX,VIC
F3:TAMRA,CY3
F4:ROX,TEXAS Red
F5:CY5
Reaction System 10-100μL

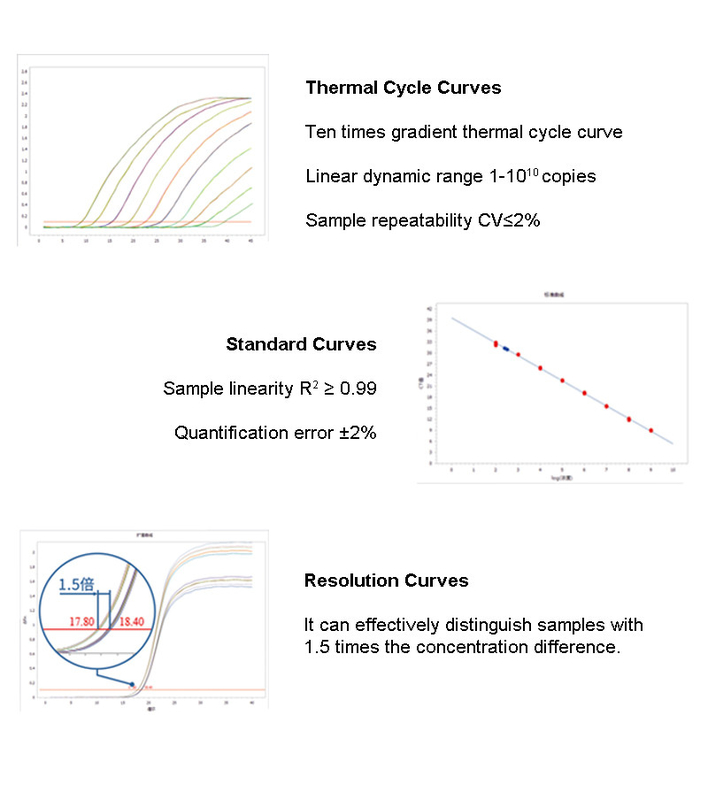

Kinetics Scope 1-1010 copies
Sample Linearity |r|≥0.990
Quantitative Repeatability CV≤2%
Quantification Error ±2%
Stability CV≤5%
Experiments Absolute quantification,
Relative quantification,
Genotyping,
Dissolution curve



Product Performance



1. Large field of view and low distortion lens for reduced edge effect, no scanning and fast reading

2. High-speed, low-noise camera for improved signal sensitivity

3. 5-channel fluorescence detection

4. Comprehensive function of analysis and export, making data results more intuitive

5. Database system makes safety data storage

6. The fully upgraded calibration algorithm makes the calibration process simple and easy
