Graphite Furnace Atomic Absorption Spectrophotometer AAS Wayeal AA2230

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number AA2210
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 25 days
Supply Ability 20 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name AAS Atomic Absorption Spectroscopy Machines Models AA2230
Wavelength Range(nm) 185-910 Wavelength Indication Error(mm) ±0.2
Wavelength Repeatability(nm) ≤0.05 Broadband Deviation(nm) ±0.015
High Light

Graphite Furnace AAS Atomic Absorption Spectroscopy

,

Graphite Furnace Atomic Absorption Spectrophotometer

Leave a Message
Product Description

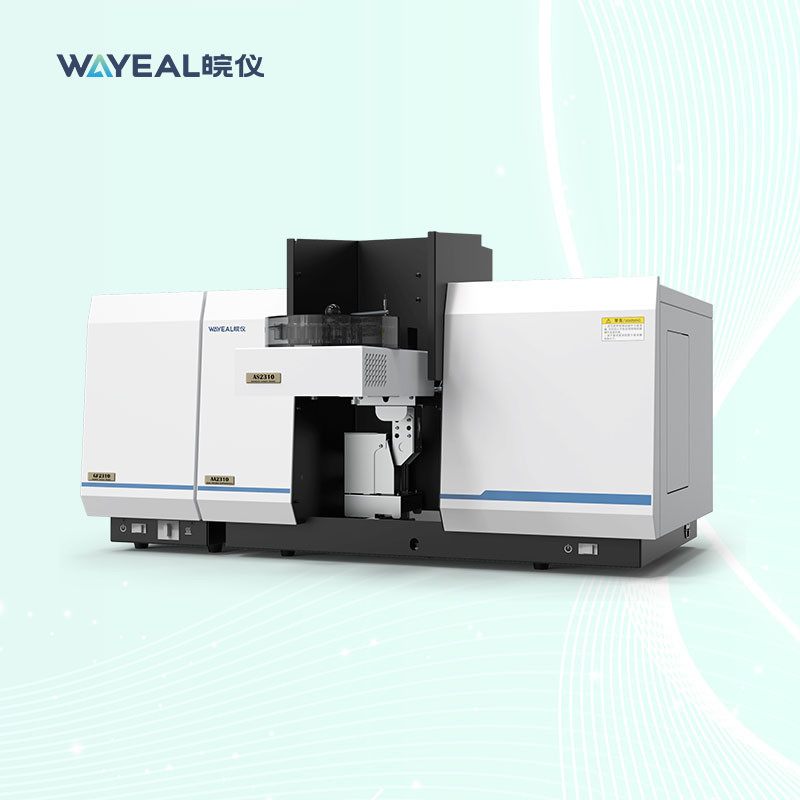

Wayeal AA2230 Graphite Furnace AAS Atomic Absorption Spectroscopy Machine Atomic Absorption Spectrophotometer

Product Introduction



Absorption spectroscopy is one of the most widely used techniques employed for determining the concentrations of absorbing species (chromophores) in solutions. It is a nondestructive technique which biologists and biochemists and now systems biologists use to quantify the cellular components and characteristic parameters of functional molecules.





Product Parameter



Wayeal AA2230 Graphite Furnace AAS Atomic Absorption Spectroscopy Machine Atomic Absorption Spectrophotometer
Models AA2230
Wavelength Range(nm) 185-910
Wavelength Indication Error(mm) ±0.2
Wavelength Repeatability(nm) ≤0.05
Broadband Deviation(nm) ±0.015
Resolution(%) ≤20
Instantaneous Noise(Abs) ±0.002
Zero Drift(Abs/30min) ±0.0015
Boundary Energy:Instantaneous Noise(Abs) ≤0.015
Detection Limit(Flame:Cu ug/mL)) ≤0.002
Apparent Atomization rate(%) ≥10
Detection Limit(Graphite Furnance: Cd pg) ≤0.3
Repeatability(Flame RSD%) ≤0.15
Repeatability(Graphite Furnance RSD%) ≤1
Linearity Error(%) ≤5
Background Correction Capability ≥70




Product Features




1. Stability: Double-beam system can automatically compensate the light source drift and wavelength drift caused by the variation of temperature (with the function of the eliminating the affection of wavelength drift on the base line stability) and electronic circuit drift so as to reach a good basic line stability.


2. Full-reflection dual-beam optical path, high optical path stability


3. High precision of measurement: Gas path system is equipped with precision pressure stabilizing and current stabilizing devices to reach stable flame and low noise. Specially designed fine light beam passes through the flame to ensure a high precision analytical test and low characteristic concentration.


4. 6 lamp holders preheat simultaneously to improve detection efficiency




Product Application



Atomic absorption spectrometry has many uses in different areas of chemistry such as clinical analysis of metals in biological fluids and tissues such as whole blood, plasma, urine, saliva, brain tissue, liver, hair, muscle tissue. Atomic absorption spectrometry can be used in qualitative and quantitative analysis.
