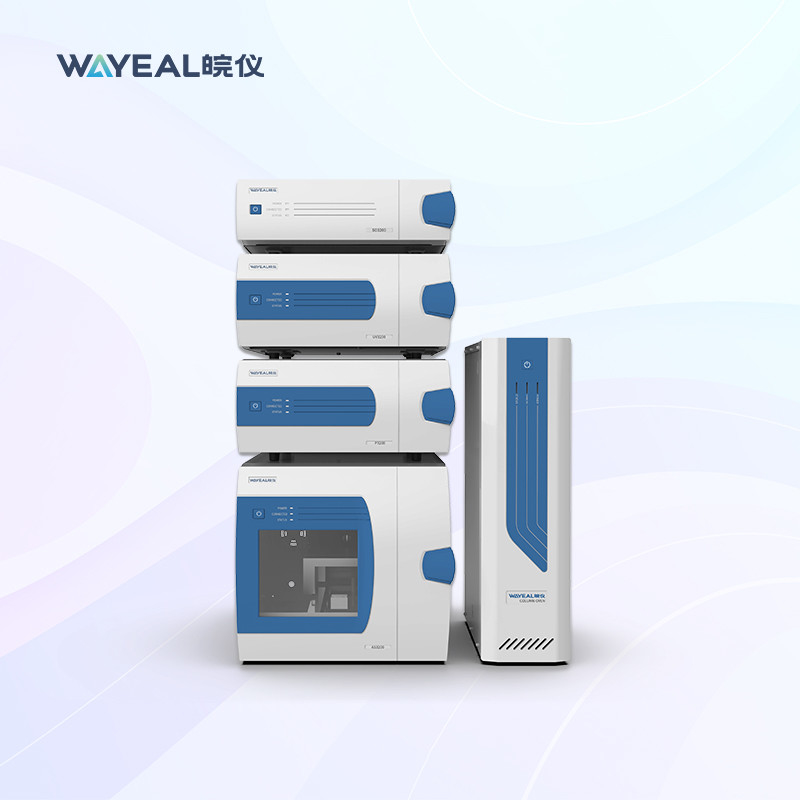

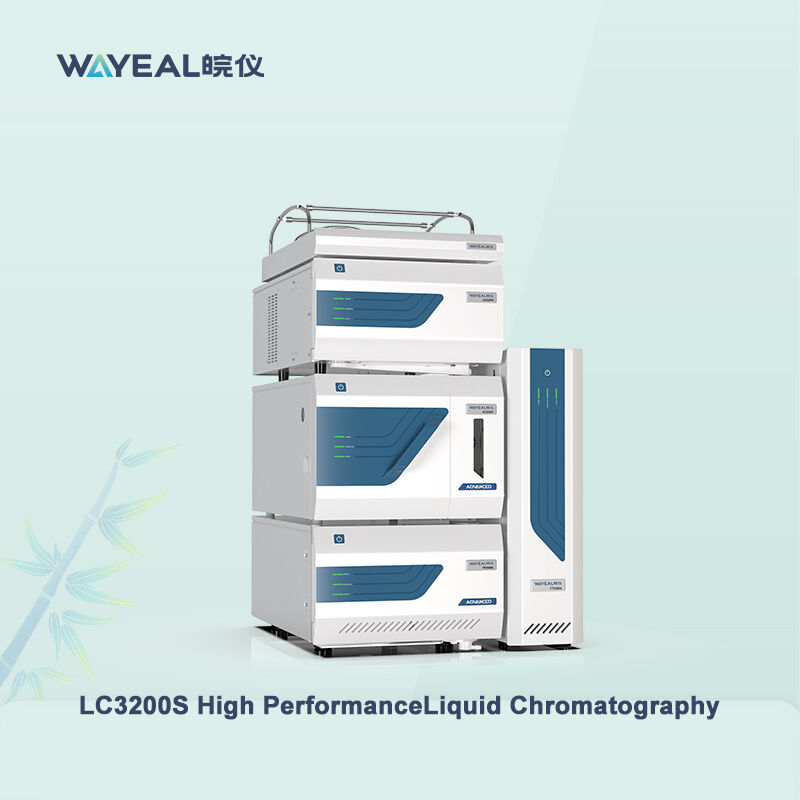

42MPa HPLC Chromatography Machine With UV Detetctor

  • 42MPa HPLC Chromatography Machine With UV Detetctor
Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number LC3200
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 30 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 42MPa HPLC Cromatografía Instruments Detector UV Detector
Column Oven Temperature Range 4 ℃ ~ 85 ℃ Temperature Stability ≤±0.02 ℃
Sample Capacity 120 Vials, 2ml Vial Linearity R ＞ 0.9999
High Light

42MPa HPLC Chromatography Instruments

,

42MPa HPLC Chromatography Machine

,

UV Detector HPLC Chromatography Machine
Leave a Message
Product Description

45MPa HPLC Cromatografía Instruments Machine High Performance Liquid Chromatography System With UV Detetctor

Product Description



High Performance Liquid Chromatography (HPLC) was developed in the late 1960s and early 1970s. Today, HPLC has become the method of choice for the analysis of a wide range of compounds. It is used for separation and purification in a wide variety of applications, including the pharmaceutical, biotechnology, environmental, polymer and food industries. Its main advantage over gas chromatography is that the analytes do not have to be volatile, so large molecules are suitable for HPLC analysis.



Product Parameter



42MPa HPLC Cromatografía Instruments Machine High Performance Liquid Chromatography System With UV Detetctor
Pump System
Gradient Quadratic Low Pressure
Flow Rate Range 0-11.0000mL/min
Min Injection Unit 0.0001mL/min
Flow Rate Error ±0.2%
Flow Rate Repeatability ≤ 0.08% RSD
Gradient Stability ＜ 0.5% RSD
Max Operating Pressure 42MPa

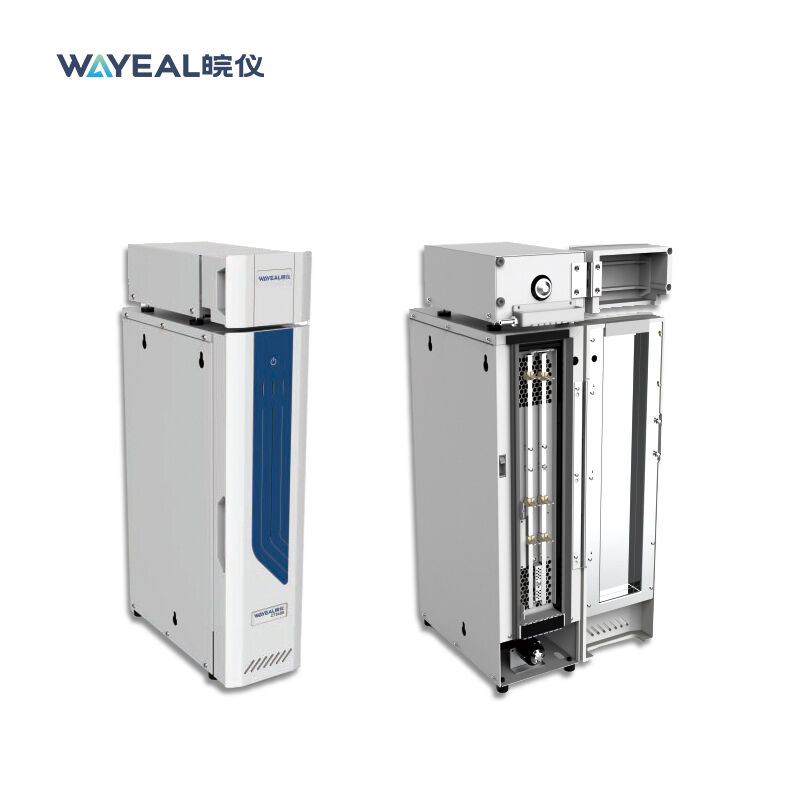

Column Oven
Temperature Range 4 ℃ ~ 85 ℃
Temperature Stability ≤±0.02 ℃
Autosampler
Sampling Volume 0.1-20.0uL (in 0.1μL increments)
Sample Capacity 120 vials, 2ml vial
Linearity r ＞ 0.9999
Cross-contamination ＜ 0.002%
Sampling Error ±0.2μL (sampling volume 10μL)
Sampling Repeatability ＜ 0.3% RSD
Injection Speed 15s

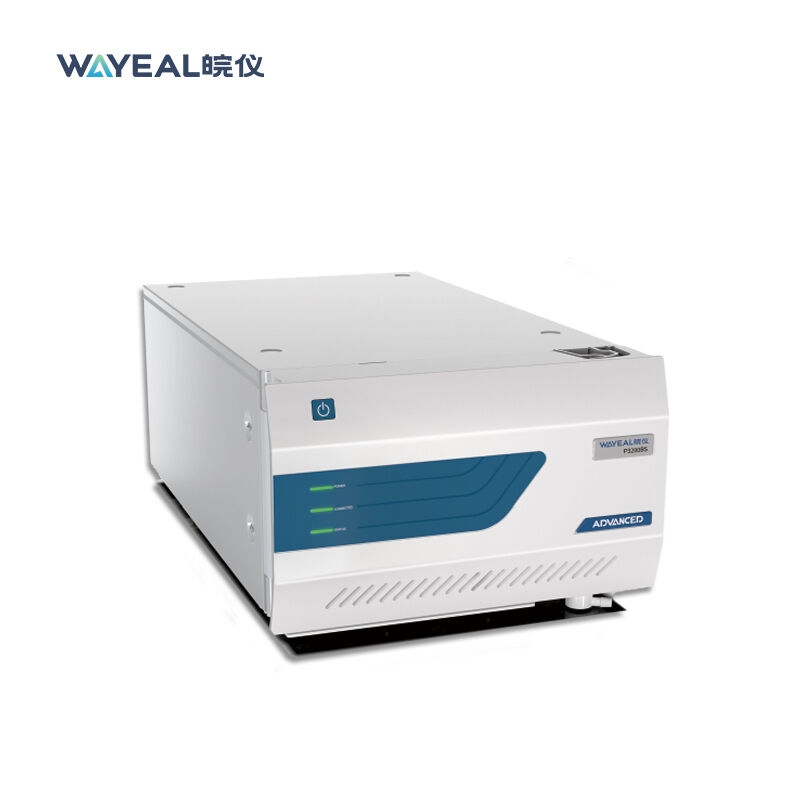

UV Detector
Wavelength Range 188 - 900 nm (optional tungsten lamp)
Wavelength Error ≤ ±0.5 nm
Wavelength Repeatability ≤ ±0.1 nm
Baseline Noise 0.8 × 10-5 AU
Drift 1.0 × 10-4 AU/h
Linearity 2.5AU



Product Performance


  • Water purification
  • Detection of impurities in pharmaceutical industries
  • Pre-concentration of trace components
  • Ligand-exchange chromatography
  • High-pH anion-exchange chromatography of carbohydrates and oligosaccharides





Product Application


Food, medicine, environment, agriculture and scientific research


42MPa HPLC Chromatography Machine With UV Detetctor 0


42MPa HPLC Chromatography Machine With UV Detetctor 1



42MPa HPLC Chromatography Machine With UV Detetctor 2



42MPa HPLC Chromatography Machine With UV Detetctor 3
